Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical/audio and coaxial cable connectors to the radio control.

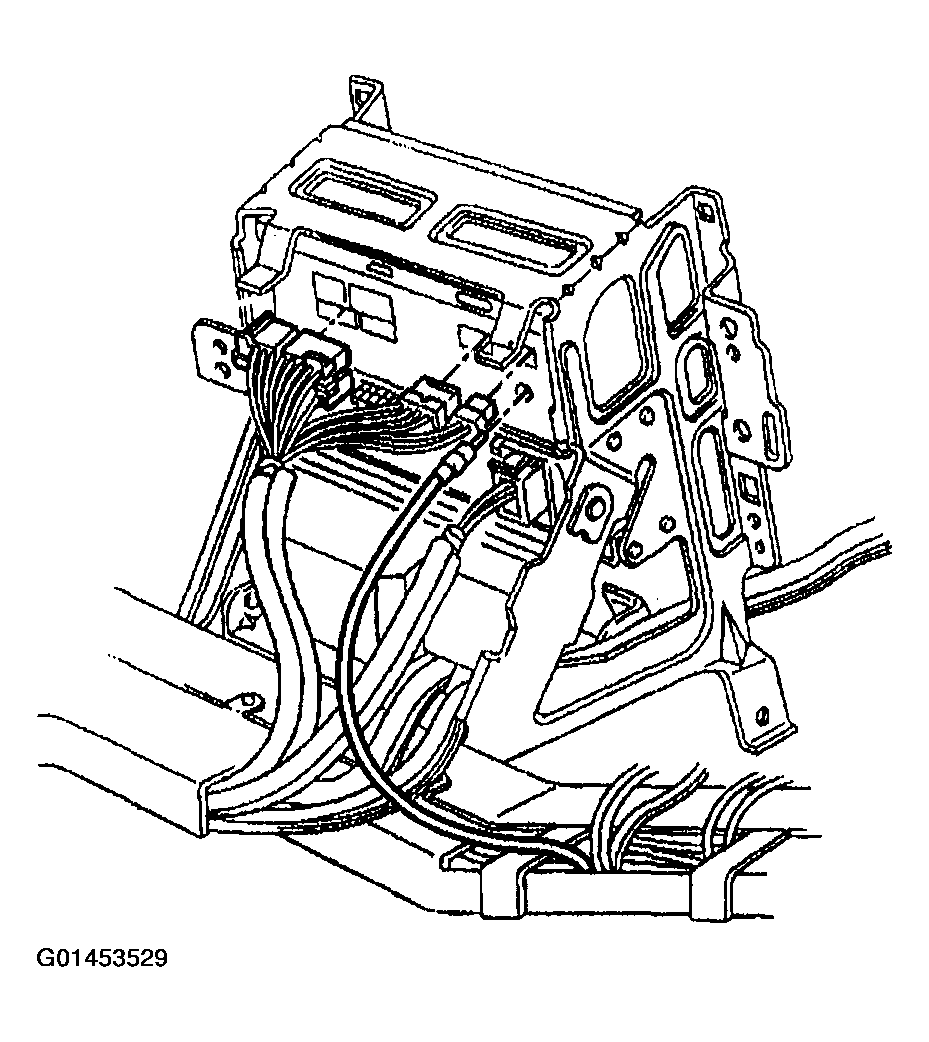

    Fig 1: Connecting Electrical/Audio & Coaxial Cable Connectors To Radio Control
    G01453529Courtesy of GENERAL MOTORS CORP.
  2. Install the radio control into position in the I/P center support bracket.

    Align the radio control locator tab into the center support bracket locator hole.

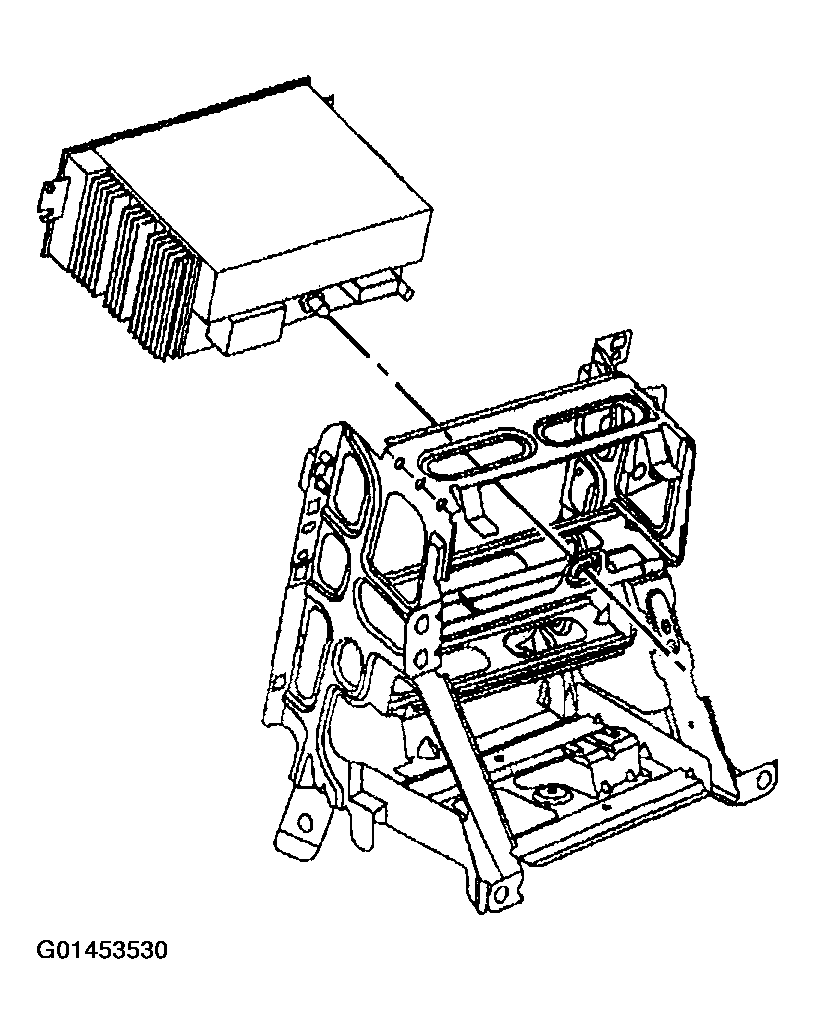

    Fig 2: Installing Radio Control Into Position In I/P Center Support Bracket
    G01453530Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the radio control retaining screws. Tighten

    Tighten the radio control retaining screws to 2.5 N.m (22 Ib. in).

  4. Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gauges and Console.
  5. Install the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gauges and Console.
  6. Install the RDO/CD MiniFuse® #5 to the I/P electrical center.
  7. Install the cover to the I/P electrical center.
  8. Install the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.

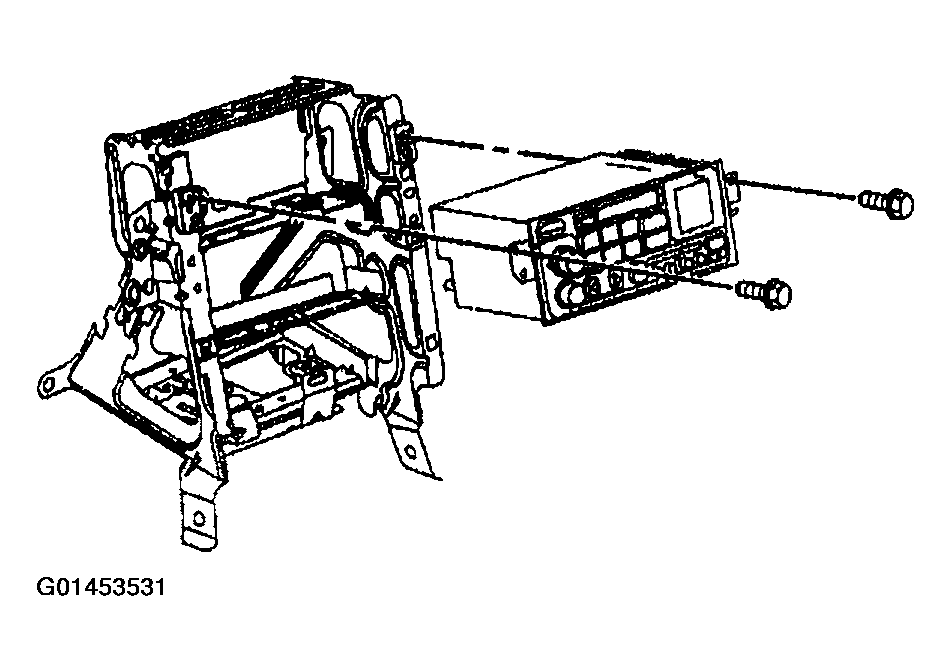

    Fig 3: Radio Control Retaining Screws
    G01453531Courtesy of GENERAL MOTORS CORP.
