Lighting Systems Component Views

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

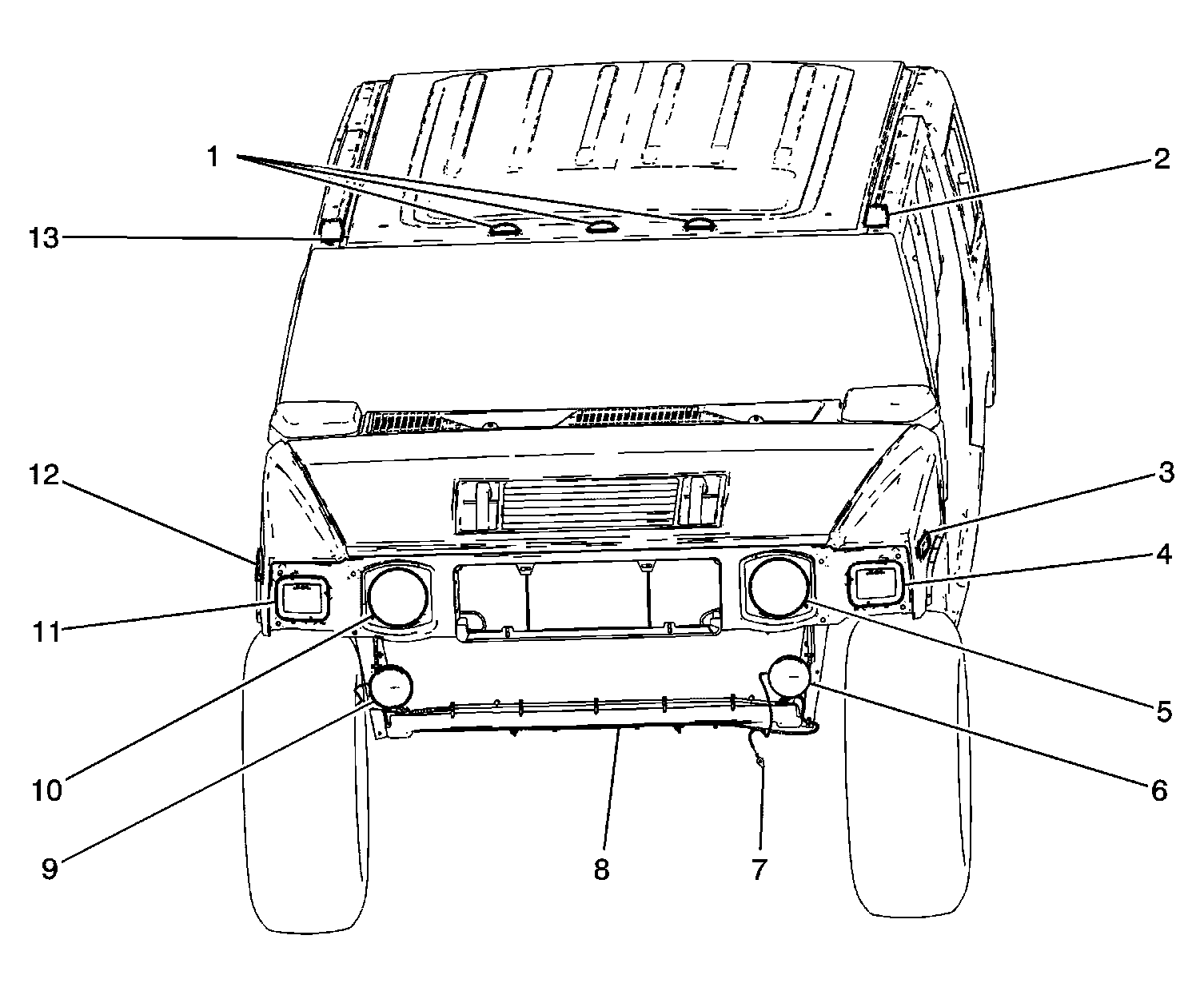

Fig 1: Front Body Exterior Lights Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Lamps - Center Front
2	Clearance Lamp - LF
3	Marker Lamp - LF
4	Park/Turn Signal Lamp - Left
5	Headlamp - High Beam/Low Beam - Left
6	Daytime Running Lamp (DRL) - Left
7	G100
8	Forward Lamp Harness
9	Daytime Running Lamp (DRL) - Right
10	Headlamp - High Beam/Low Beam - Right
11	Park/Turn Signal Lamp - Right
12	Marker Lamp - RF
13	Clearance Lamp - RF

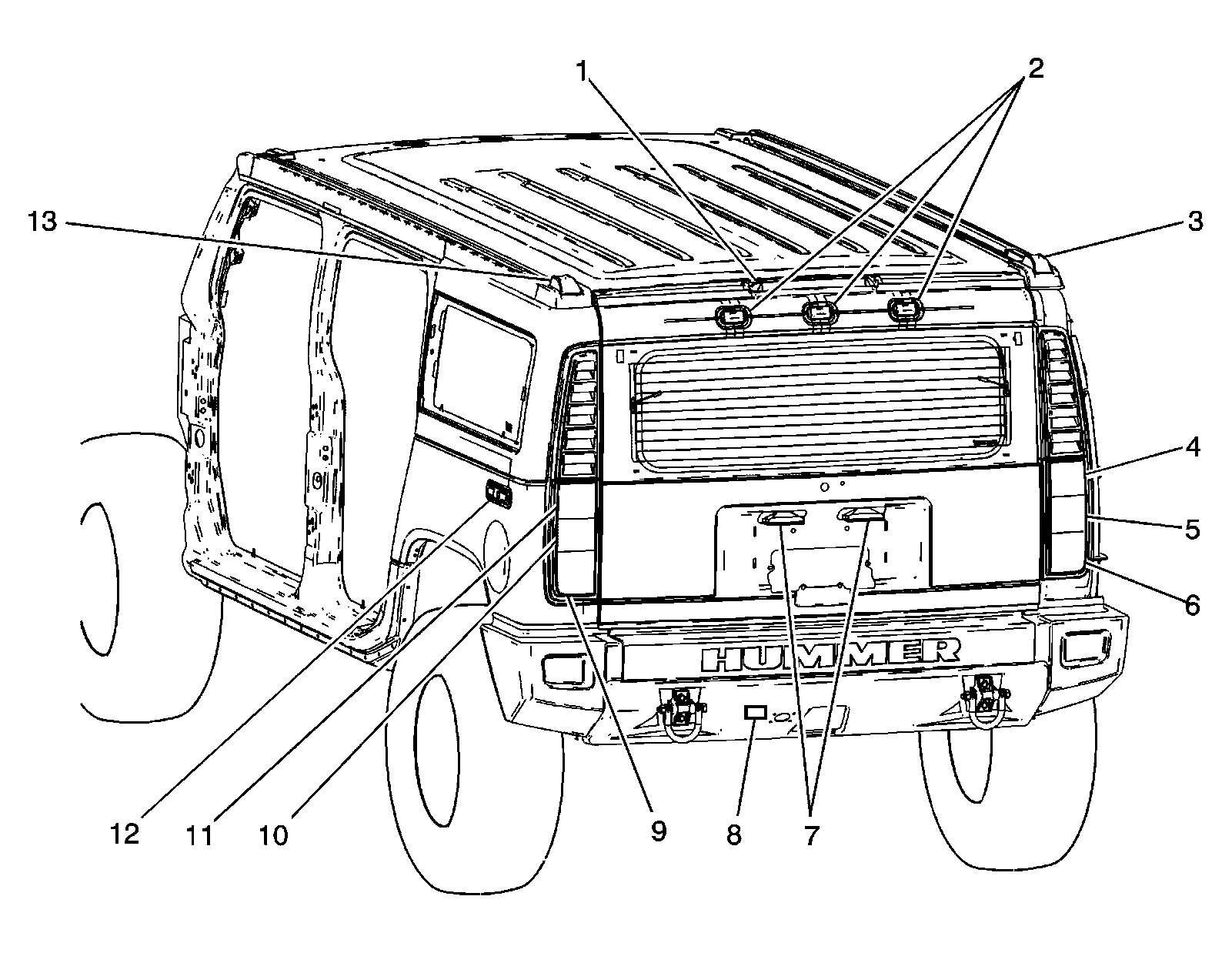

Fig 2: Rear Body Exterior Lights Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mounted Stop Lamp (CHMSL)
2	Roof Lamps - Center Rear
3	Clearance Lamp - RR
4	Backup Lamp - RH
5	Turn Signal Lamp - RR
6	Tail/Stop Lamp - Right
7	License Lamps
8	Trailer Connector
9	Tail/Stop Lamp - Left
10	Turn Signal Lamp - LR
11	Backup Lamp - LH
12	Marker Lamp - LR
13	Clearance Lamp - LR

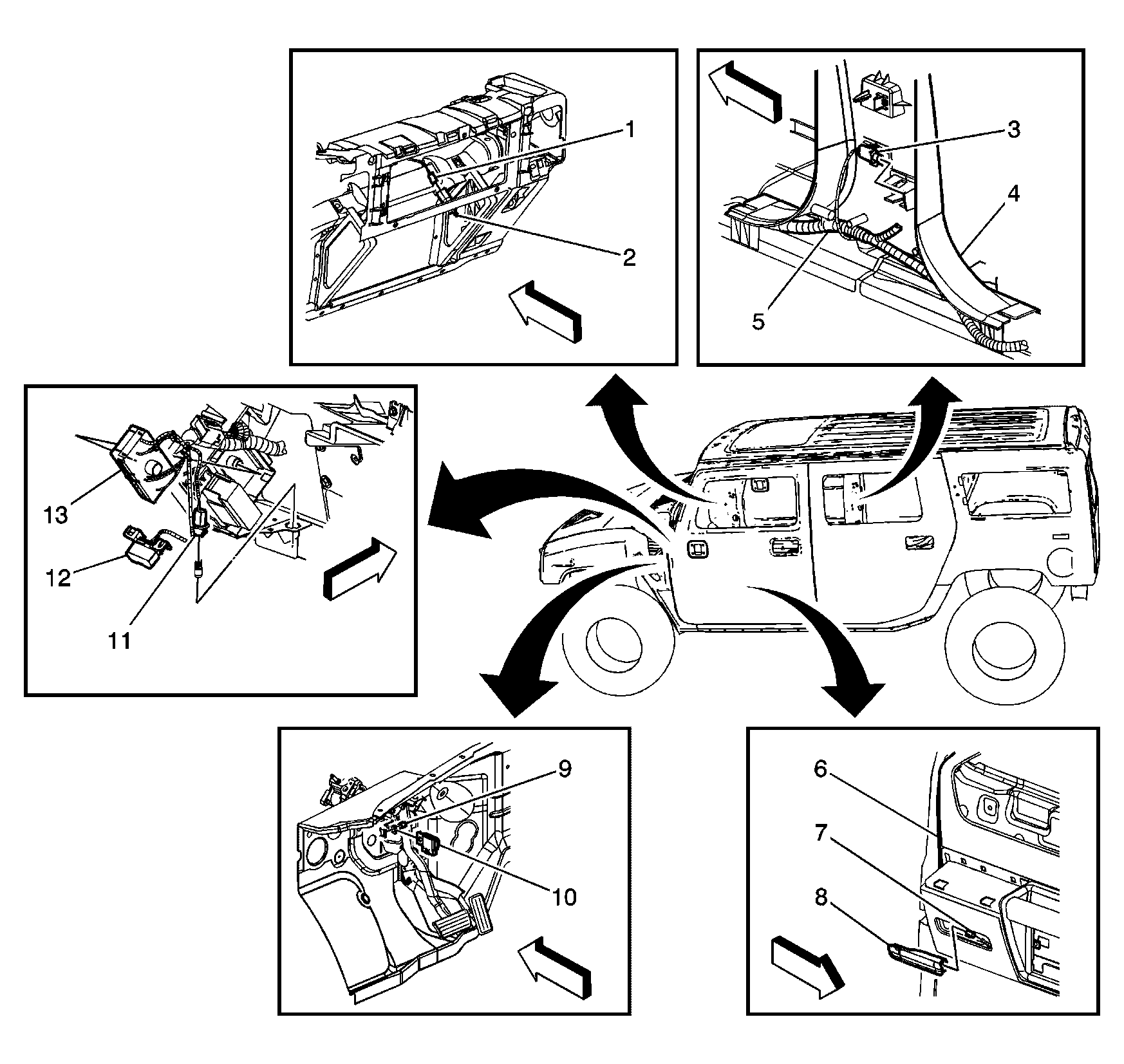

Fig 3: Lighting System Component Views (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp Connector
2	I/P Compartment Lamp
3	Courtesy Lamp - Right B Pillar (Right Side Similar)
4	B Pillar Trim Panel
5	Body Harness
6	Left Front Door
7	Courtesy Lamp - Left Front Door Connector
8	Courtesy Lamp - Left Front Door (Right Side Similar)
9	Brake Pedal Assembly
10	Stop Lamp Switch
11	Footwell Courtesy Lamp - Left (Right Side Similar)
12	Data Link Connector (DLC)
13	Fuse Block - I/P C1

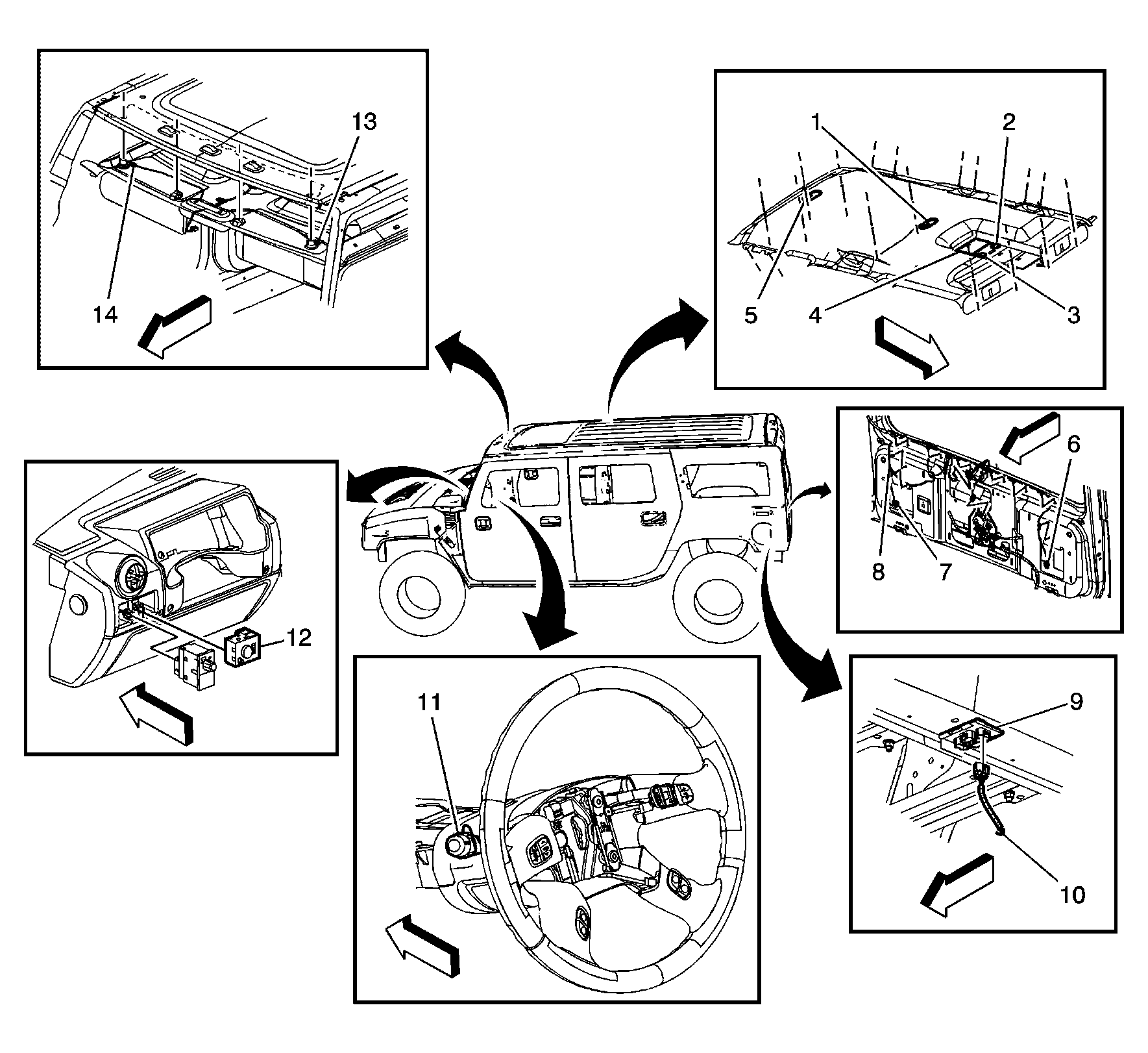

Fig 4: Lighting System Component Views (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Center
2	Courtesy/Reading Lamp - Front
3	Courtesy/Reading Lamp - Front
4	Overhead Console (w/o Sunroof)
5	Courtesy/Reading Lamp - Rear
6	Liftgate Ajar Switch - Left
7	Liftgate Ajar Switch - Right
8	Liftgate Harness
9	Junction Block - Rear
10	Chassis Harness
11	Turn Signal Multifunction Switch
12	Headlamp and Panel Dimmer Switch
13	Vanity Mirror Lamp Connector - Left
14	Vanity Mirror Lamp Connector - Right

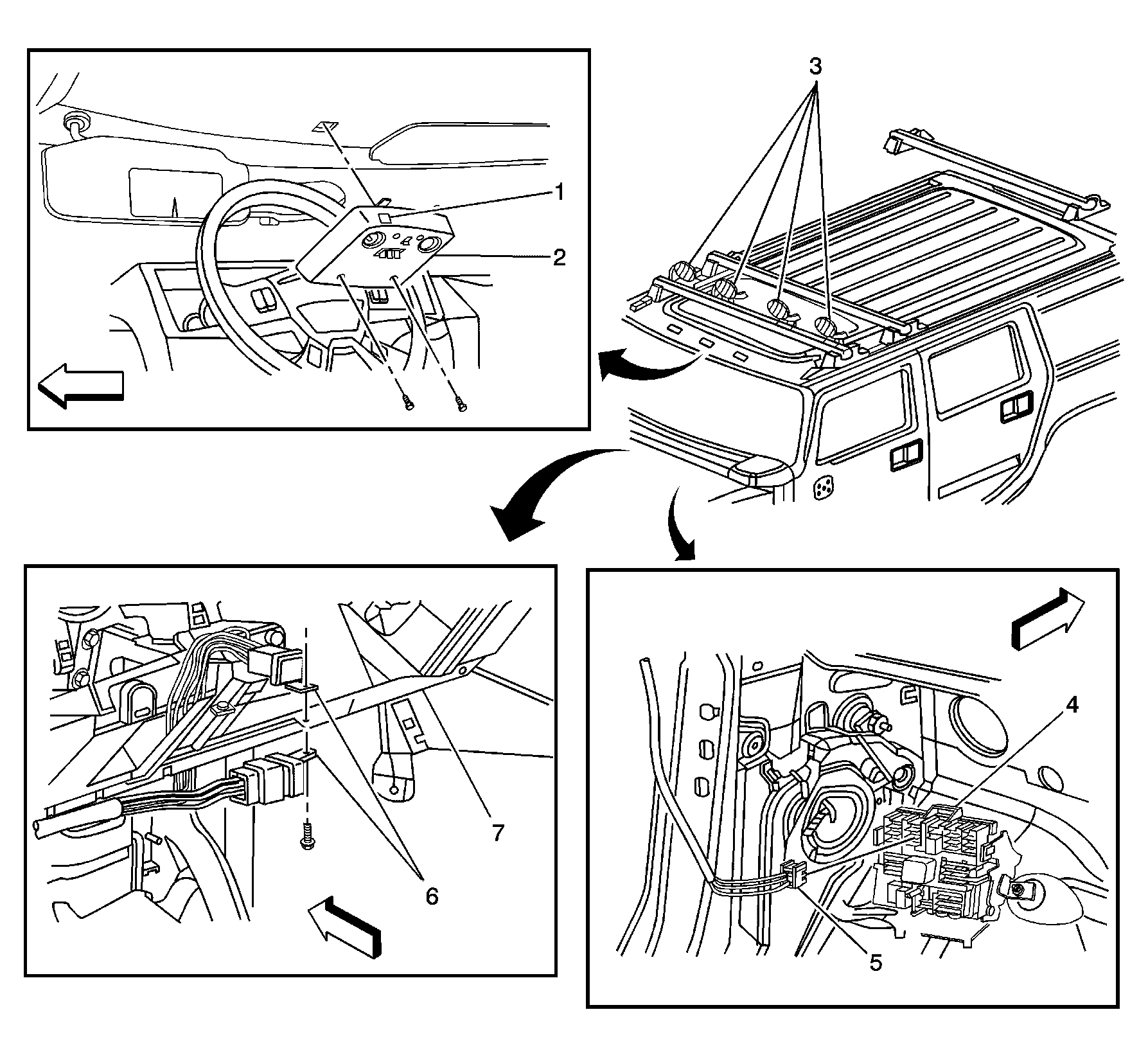

Fig 5: Off Road Lamps - Roof Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Off Road Lamps - Switch
2	Overhead Console w/Front Courtesy/Reading Lamps (CF5)
3	Off Road Lamps - Roof
4	Relay Block - I/P
5	Relay Block - I/P C7 (Off Road Lamp Harness)
6	Off Road Lamps Relays
7	Instrument Panel Rail
