Power Seat Systems Component Views

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Seat Sub-System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C327
2	Seat Adjuster Switch - Driver
3	Memory Seat Module - C4
4	Memory Seat Module - C3
5	Seat Bolster/Lumbar Switch - Driver
6	Seat Recline Motor - Driver
7	C325
8	C329
9	C330
10	C328
11	Seat Rear Vertical Motor-Driver
12	Seat Front Vertical Motor-Driver
13	Memory Seat Module-C2
14	Memory Seat Module-C1
15	Seat Horizontal Motor-Driver
16	C326

Fig 2: Seat Belt Switch - Driver, Heated Seat Element Connector, Bolster/Lumbar Motors and C333 Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Bolster Motor-Driver
2	Seat Lumbar Motor-Driver
3	Heated Seat Element-Driver Cushion
4	C333
5	Seat Belt Switch Connector
6	Heated Seat Element-Driver Cushion Connector

Fig 3: Passenger Seat Sub-System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Horizontal Motor - Front Passenger
2	Seat Front Vertical Motor - Front Passenger
3	Seat Rear Vertical Motor - Front Passenger
4	C376
5	C377
6	C375
7	Seat Recline Motor - Front Passenger
8	Seat Bolster/Lumbar Switch - Front Passenger
9	Seat Adjuster Switch - Front Passenger

Fig 4: Heated Seat Element-Passenger Cushion, Bolster/Lumbar Motors and C378 (w/KA7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Bolster Motor - Passenger
2	Seat Lumbar Motor - Passenger
3	Heated Seat Element - Passenger Cushion Connector (w/KA7)
4	C378

Fig 5: 2nd Row Heated Seat (KA7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Control Module - RR
2	2nd Row Seat - LR
3	Heated Seat Control Module - LR
4	Heated Seat Element Connector - LR
5	C320
6	Heated Seat Element Connector - RR
7	C380
8	2nd Row Seat - RR

Fig 6: Memory/Heated Seat Switch - Driver (w/KA7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Module (DDM)
2	Driver Inner Door Panel
3	DDM - C5 (Green)
4	Memory/Heated Seat Switch-Driver (w/KA7)

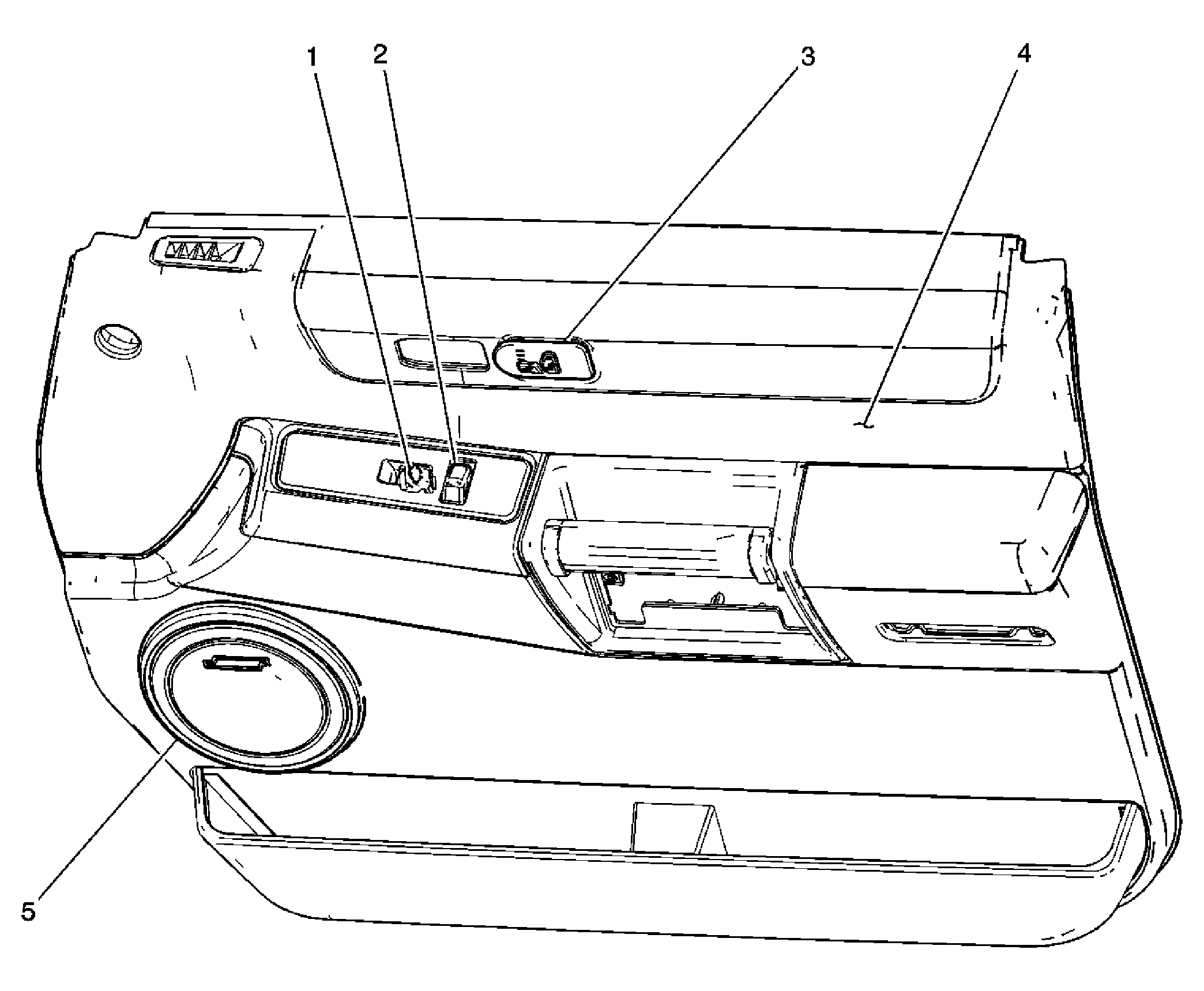

Fig 7: Heated Seat Switch - Passenger (w/KA7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Passenger
2	Door Lock Switch - Passenger
3	Heated Seat Switch - Passenger
4	Passenger Door
5	Speaker - RF Door

Fig 8: Heated Seat Switch - LR/RR (w/KA7) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RSA Controller
2	Heated Seat Switch - RR (w/KA7)
3	Accessory Power Outlet - RR
4	Accessory Power Outlet - LR
5	Heated Seat Switch - LR (w/KA7)
