Wiper/Washer System Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

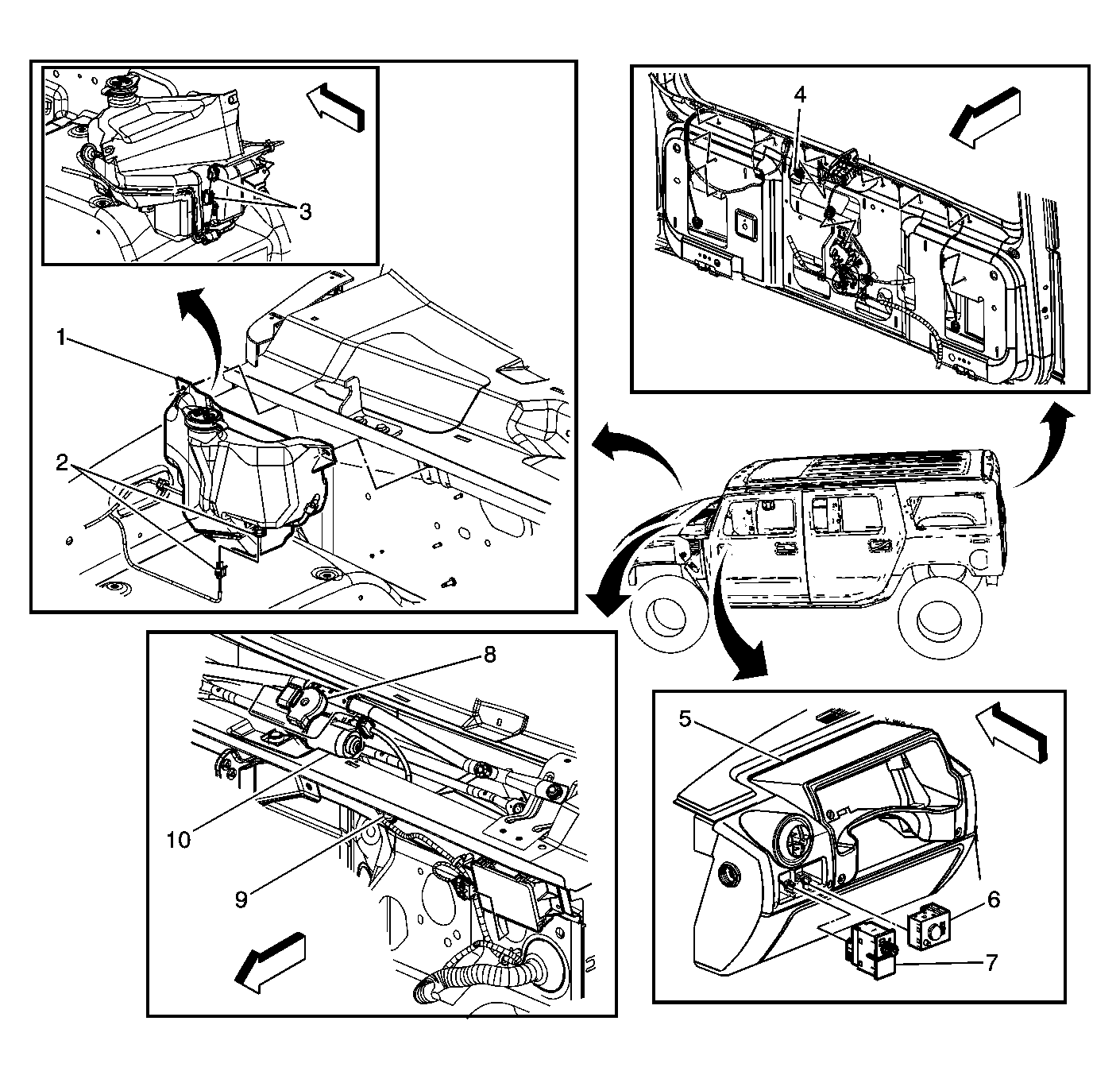

| Callout | Component Name |
|---|---|
| 1 | Windshield Washer Fluid Container |
| 2 | Washer Fluid Level Sensor |
| 3 | Windshield Washer Fluid Pump - Reversible |
| 4 | Rear Window Wiper Motor |
| 5 | I/P Cluster |
| 6 | Headlamp and Panel Dimmer Switch |
| 7 | Rear Wiper/Washer Switch |
| 8 | Windshield Wiper/Washer Module |
| 9 | I/P Harness |
| 10 | Windshield Wiper Motor |
