Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Rear Window Wiper Terminal Identification Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15332141 6-Way F GT 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	OG	2040	Battery Positive Voltage
B	BK	1450	Ground
C	-	-	Not Used
D	WH	393	Rear Window Washer Switch Signal
E	GY	391	Rear Window Wiper Switch Signal
F	PK/BK	1303	Liftgate Ajar Switch Signal

Rear Window Wiper/Washer Terminal Identification Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15393435 10-Way F Micro-Pack (GY)
Pin	Wire Color	Circuit No.	Function
A-C	-	-	Not Used
D	BK/WH	1851	Ground
E	BN/WH	230	Instrument Panel Lamps Dimming Control
F	GY	391	Rear Window Wiper Switch Signal
G	YE	343	Accessory Voltage
H	D-GN	392	Rear Window Washer Pump Control
J	WH	393	Rear Window Wiper Motor Wash Signal
K	-	-	Not Used

Turn Signal/Multifunction Terminal Identification Switch - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15339058 7-Way F Metri-Pack 150 Series (MD GY)
Pin	Wire Color	Circuit No.	Function
G	-	-	Not Used
H	PK	94	Windshield Washer Switch Signal
J	GY	478	Windshield Washer Switch Supply Voltage
K	D-BU/ WH	477	Windshield Wiper Switch High Signal
L-N	-	-	Not Used

Washer Fluid Level Terminal Identification Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336024 2-Way F GT 150 Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	BK/WH	174	Low Washer Fluid Indicator Signal
2	BK	150	Ground

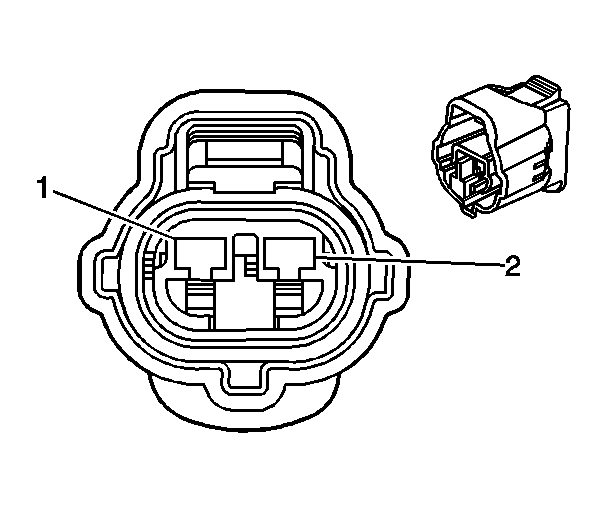

Washer Fluid Pump Terminal Identification - Reversible

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15423480 2-Way F Yazaki Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	RD	228	Windshield Washer Pump Control
2	D-BU	227	Rear Window Washer Pump Control

Windshield Wiper Terminal Identification Motor and Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326939 12-Way F GT 150 SLD (BK)
Pin	Wire Color	Circuit No.	Function
A	D-GN/WH	266	Washer Fluid Pump Supply Voltage
B	RD	228	Windshield Washer Pump Control
C	D-GN	392	Rear Window Washer Switch Signal
D	D-BU	477	Windshield Wiper Switch High Signal
E	GY	478	Windshield Wiper Switch Supply Voltage
F	YE	143	Accessory Voltage
G	BK	1050	Ground
H	D-BU	227	Rear Window Washer Pump Control
J	OG	2268	Washer Fluid Pump Relay Control
K	PK	94	Windshield Washer Switch Signal
L	D-GN	113	Windshield Wiper Switch Signal 2
M	BK	1050	Ground
