Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

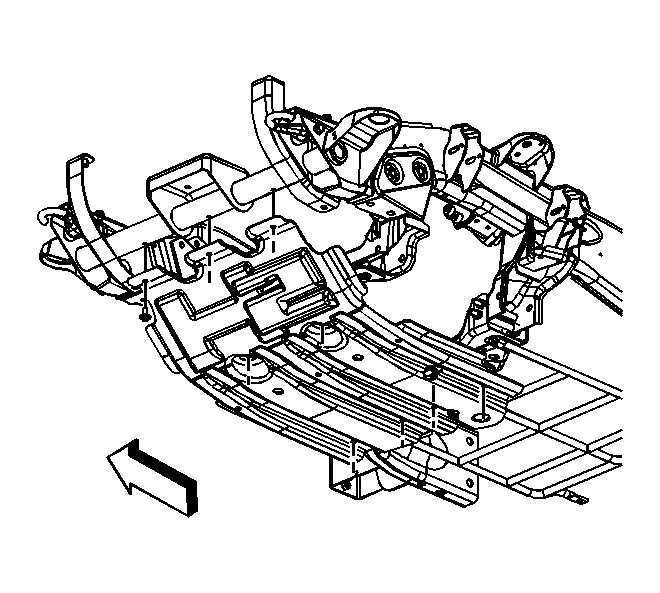

    Fig 1: Engine Protection Shield
    GM794711Courtesy of GENERAL MOTORS CORP.
  1. Remove the frame to the shield bolts.
  2. Remove the shield from the vehicle.
