Power Roof Systems Component Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

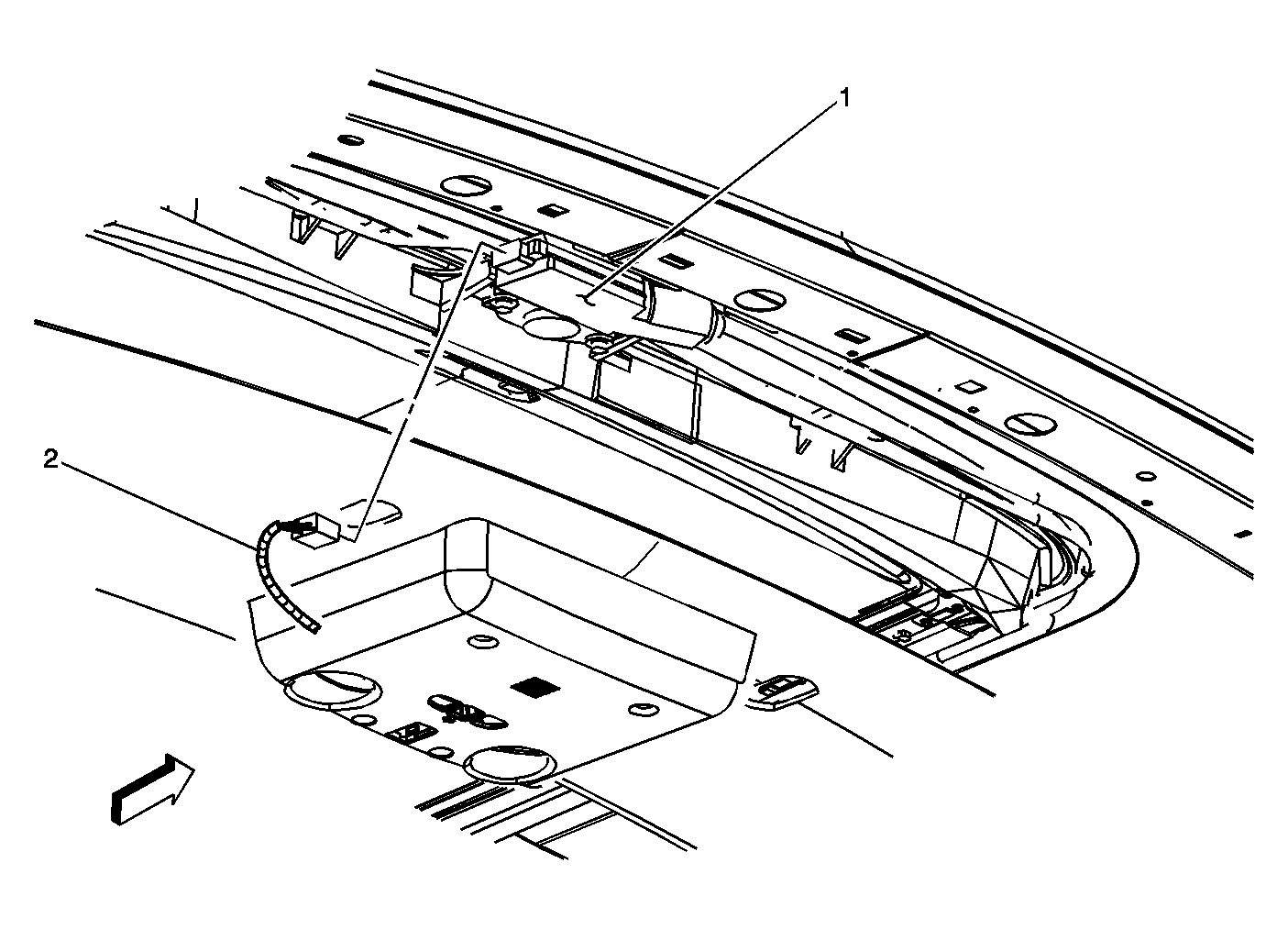

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Module |
| 2 |
Headliner Harness |

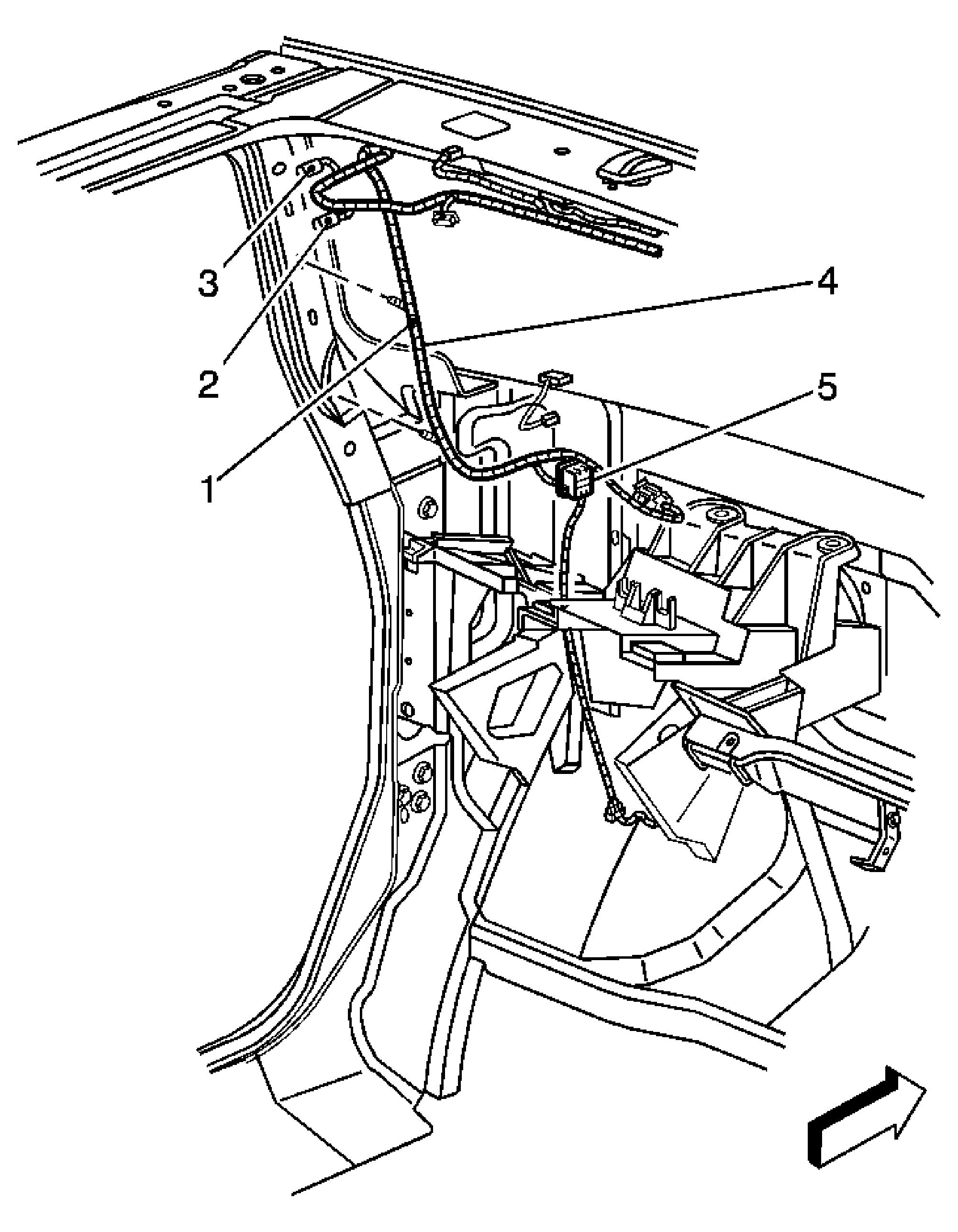

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
S302 |
| 2 |
S305 |
| 3 |
S301 |
| 4 |
Headliner Harness |
| 5 |
Sunroof Relay |
