Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

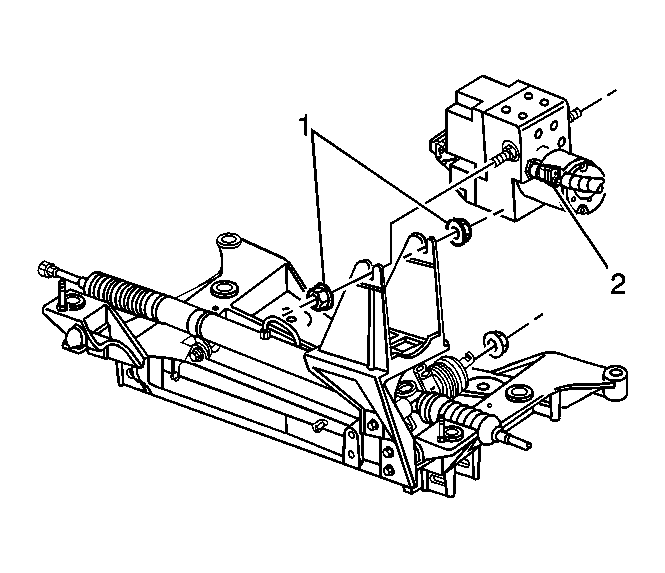

    Fig 1: EBCM Harness Connector & Bracket
    GM707000Courtesy of GENERAL MOTORS CORP.
  1. Turn the ignition switch to the OFF position.
  2. Disconnect the EBCM harness connector.
  3. Remove the two insulator nuts (1).
  4. Lift the EBCM/BPMV out of the bracket high enough to allow clearance to remove the insulator mounting bolt and the EBCM.

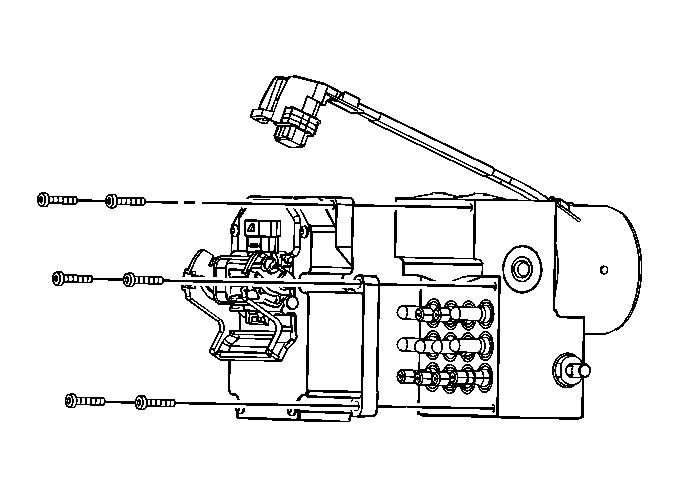

    5. Fig 2: Insulator Mounting Bolt To EBCM
    GM1415808Courtesy of GENERAL MOTORS CORP.
  5. Remove the insulator mounting bolt from the EBCM.
  6. Remove the six EBCM to BPMV bolts.
  7. Separate the EBCM from the BPMV by gently pulling apart until separated.
  8. Carefully remove the seal.

    The seal may by reused if it is not cut or damaged.
