Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front differential carrier shield.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front differential carrier shield bolts.

    Tighten

    Tighten the front differential carrier shield bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

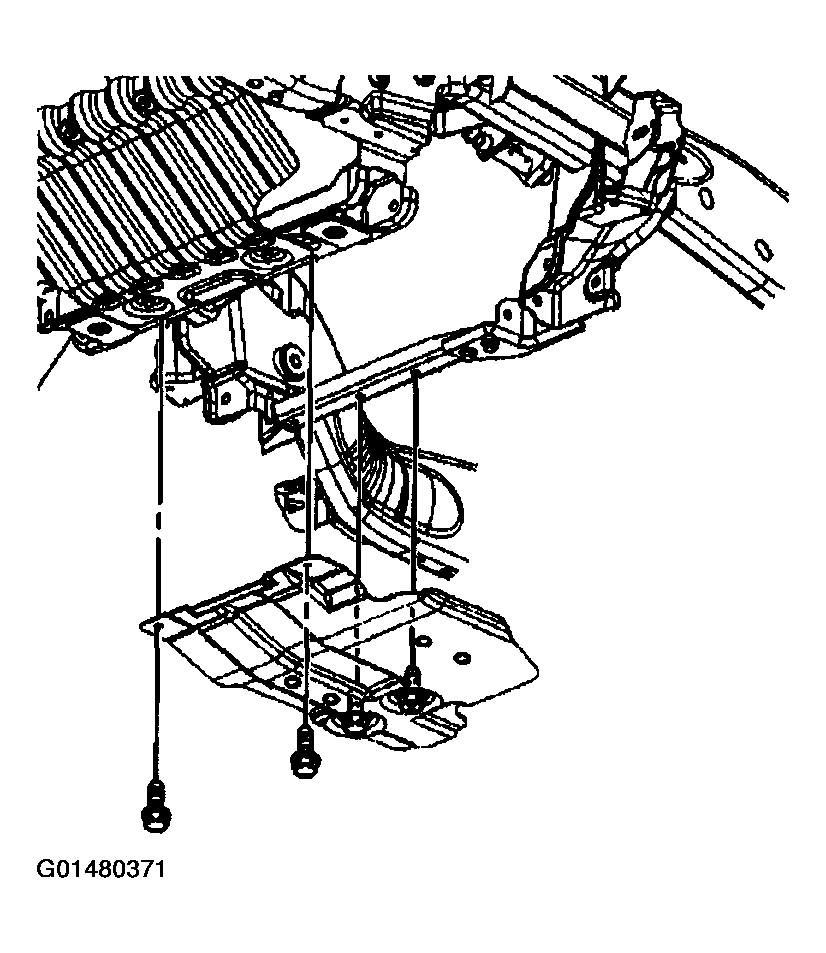

    Fig 1: Front Differential Carrier Shield & Bolts
    G01480371Courtesy of GENERAL MOTORS CORP.
