Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wire connector.

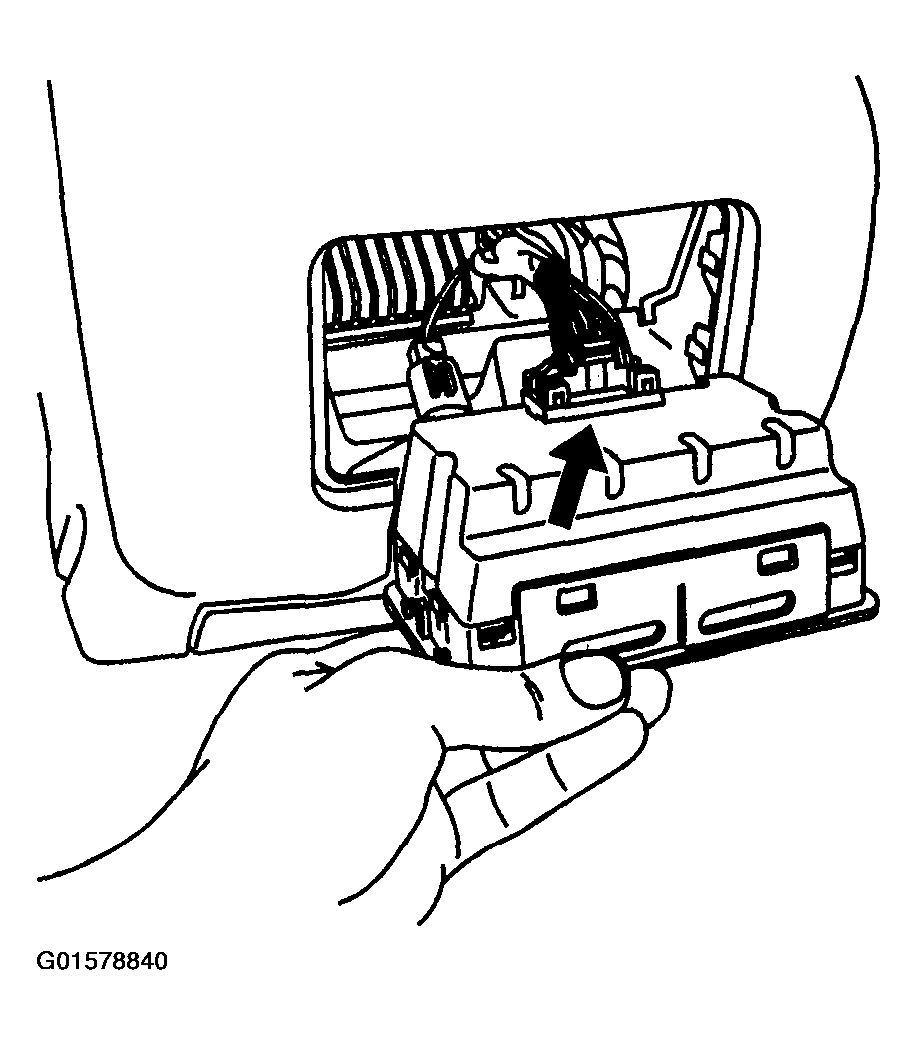

    Fig 1: Connecting Wire Connector
    G01578840Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat audio control to the console end panel till it clicks in place.
  3. Inspect the operation of the rear audio controls.

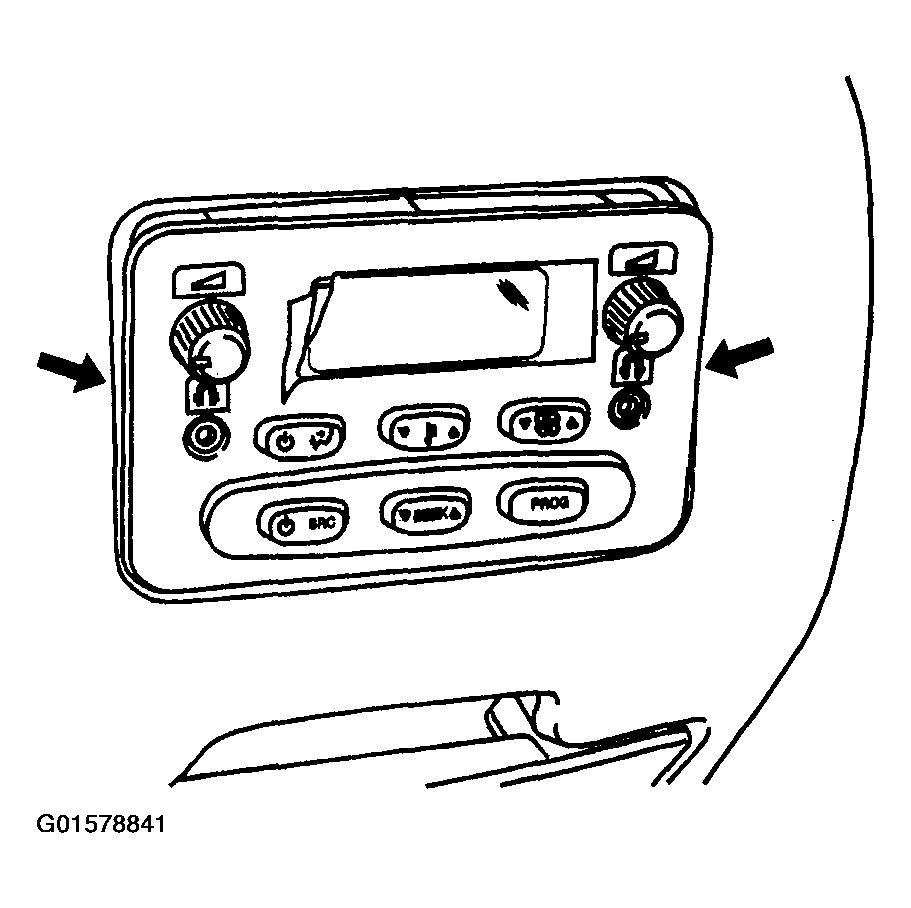

    Fig 2: Installing Rear Seat Audio Control
    G01578841Courtesy of GENERAL MOTORS CORP.
