Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DVD player hook (1) into the hook opening.

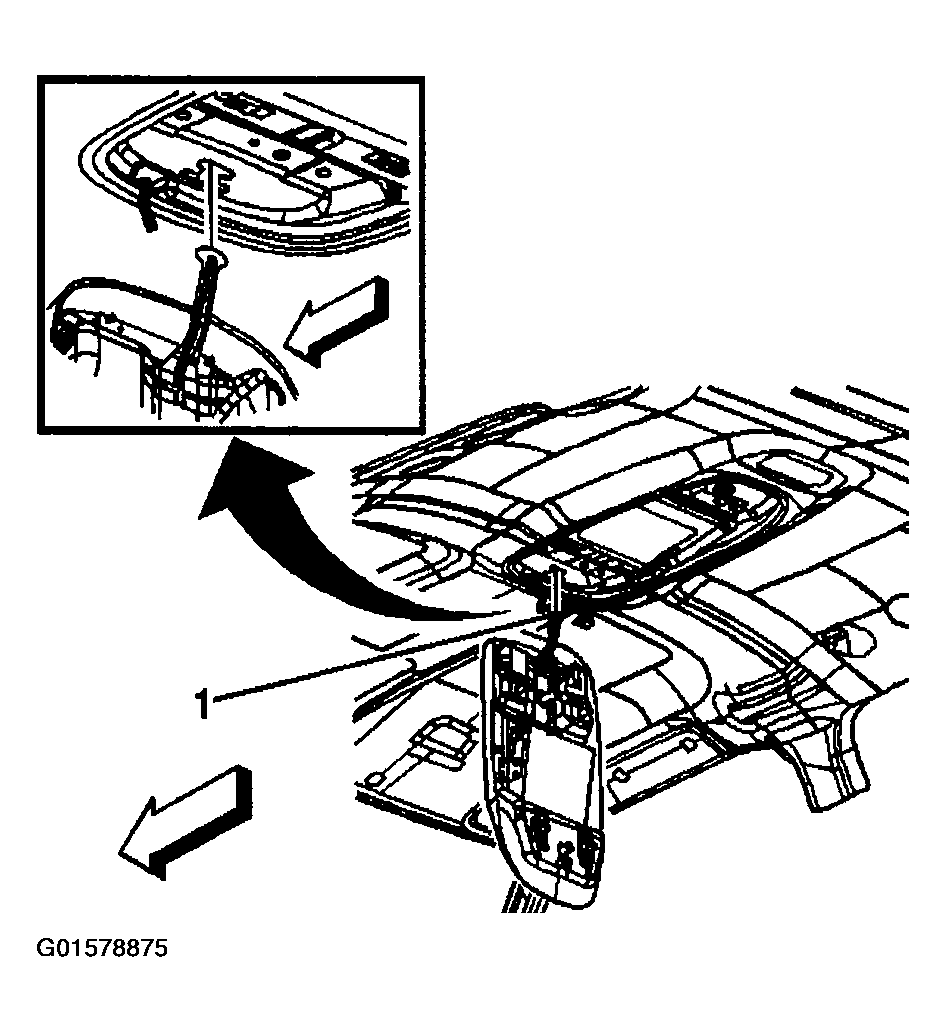

    Fig 1: Installing DVD Player Hook Into Hook Opening
    G01578875Courtesy of GENERAL MOTORS CORP.
  2. Connect the wire connector (1) to the DVD player assembly.
    IMPORTANT: Ensure the harness is routed to the right side of the large plastic pin as shown (2).
  3. Install the harness retainer to the panel.
  4. Swing the rear part of the assembly to the headliner so that the retainer is seated.

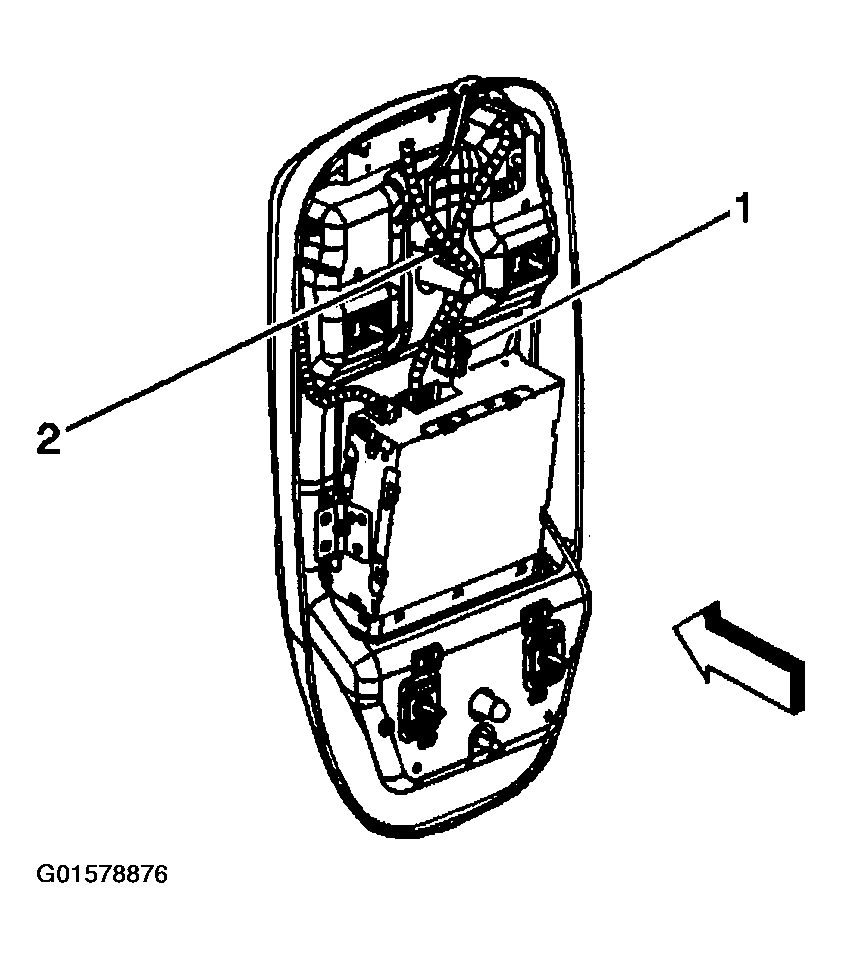

    Fig 2: Connecting Wire Connector To DVD Player Assembly
    G01578876Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the two rear retaining bolts.

    Tighten

    Tighten the 2 rear retaining bolts to 9 N.m (80 lb in).

  6. Move the screen to the open position.
  7. Install the 2 front retaining bolts (2).

    Tighten

    Tighten the 2 front retaining bolts to 9 N.m (80 lb in).

  8. Install the rear screw cover.

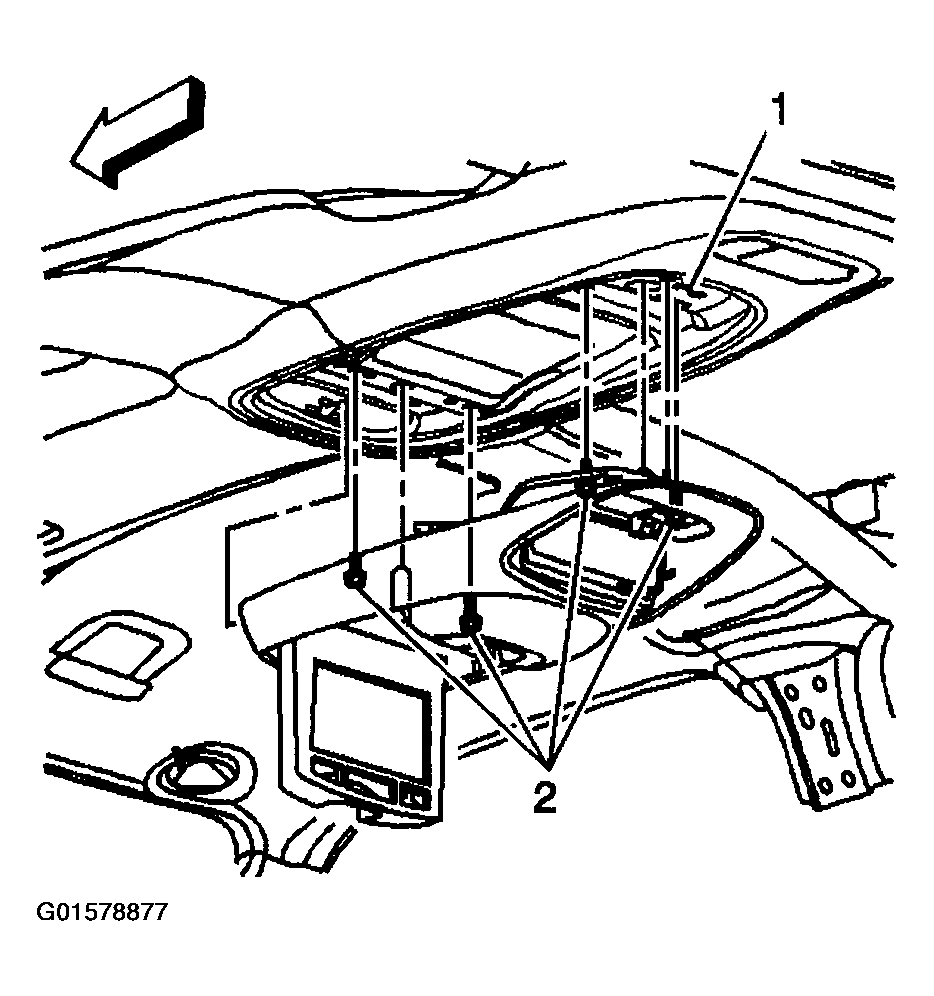

    Fig 3: Installing Retaining Bolts
    G01578877Courtesy of GENERAL MOTORS CORP.
