Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connector.
  2. Install the speaker by snapping the speaker into place.
  3. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE ACCESS DOOR .
  4. Verify the component's operation.

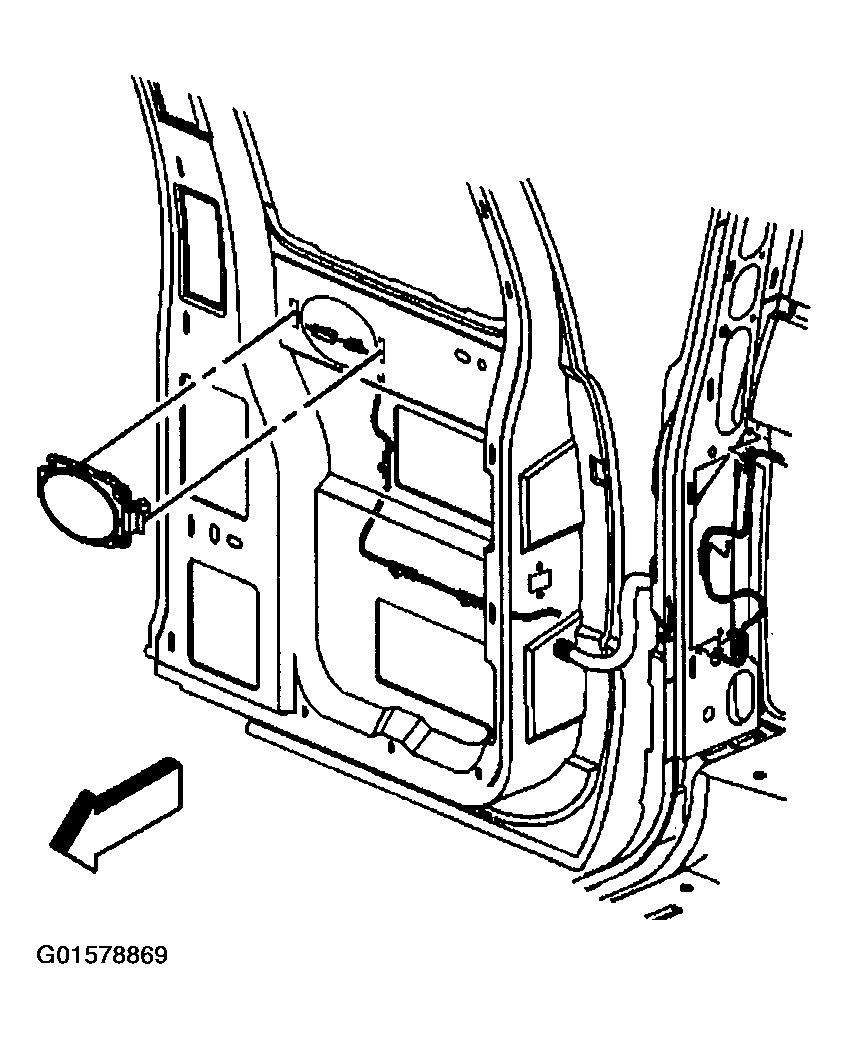

    Fig 1: Installing Rear Door Speaker (Extended Cab)
    G01578869Courtesy of GENERAL MOTORS CORP.
