Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.

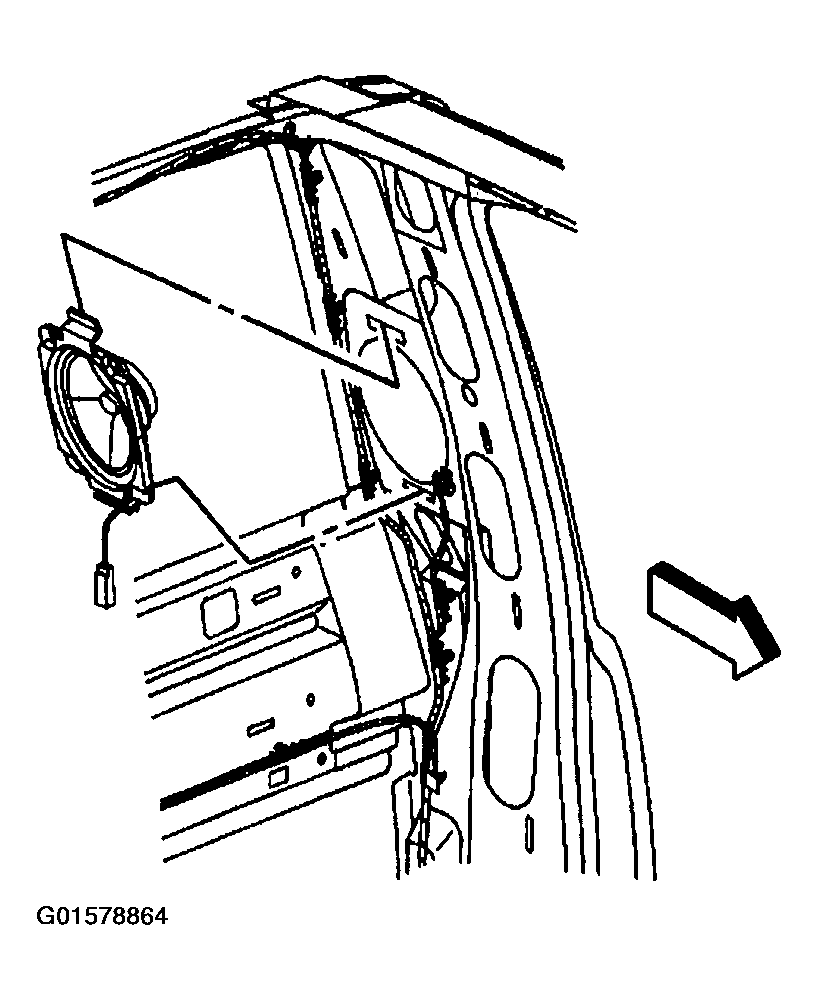

    Fig 1: Connecting Electrical Connector
    G01578864Courtesy of GENERAL MOTORS CORP.
  2. Install the speaker by snapping the top retainer into place.
  3. Install the trim panel. Refer to TRIM PANEL REPLACEMENT-REAR QUARTER (REGULAR CAB) or TRIM PANEL REPLACEMENT-REAR QUARTER (EXTENDED CAB) or TRIM PANEL REPLACEMENT-REAR QUARTER (CREW CAB) . Verify the component's operation.

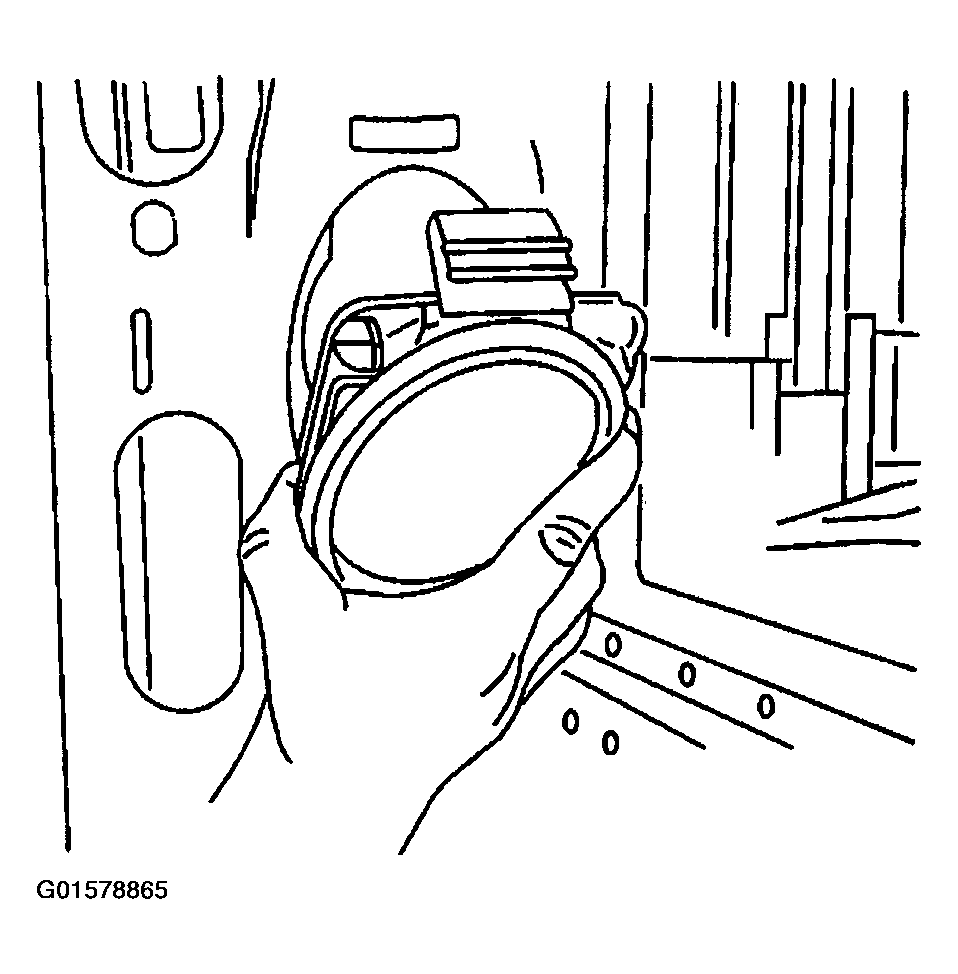

    Fig 2: Installing Speaker
    G01578865Courtesy of GENERAL MOTORS CORP.
