Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trim panel. Refer to TRIM PANEL REPLACEMENT-REAR QUARTER (REGULAR CAB) or TRIM PANEL REPLACEMENT-REAR QUARTER (EXTENDED CAB) or TRIM PANEL REPLACEMENT-REAR QUARTER (CREW CAB) .
Remove the speaker by pushing down on the top retainer.

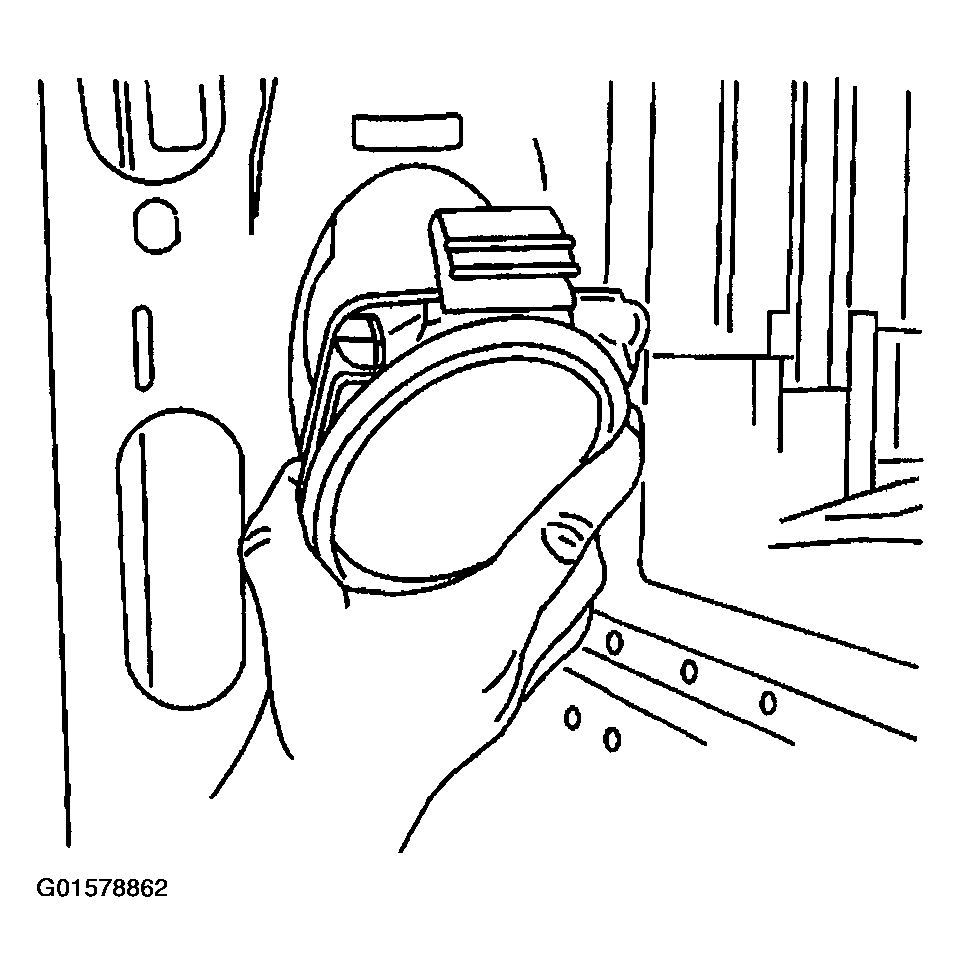

Fig 1: Removing Speaker
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector and remove the speaker.

Fig 2: Disconnecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
