Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the regulator to the door.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the window regulator:

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  3. Align the window to the regulator and install the bolts holding the window to the regulator.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  4. Connect the wiring harness to the window motor assembly.
  5. Install the water deflector. Refer to Water Deflector Replacement - Front Door   .
  6. Install the trim panel. Refer to Trim Panel Replacement - Side Front Door   .
  7. Lower the window. Inspect the window operation.

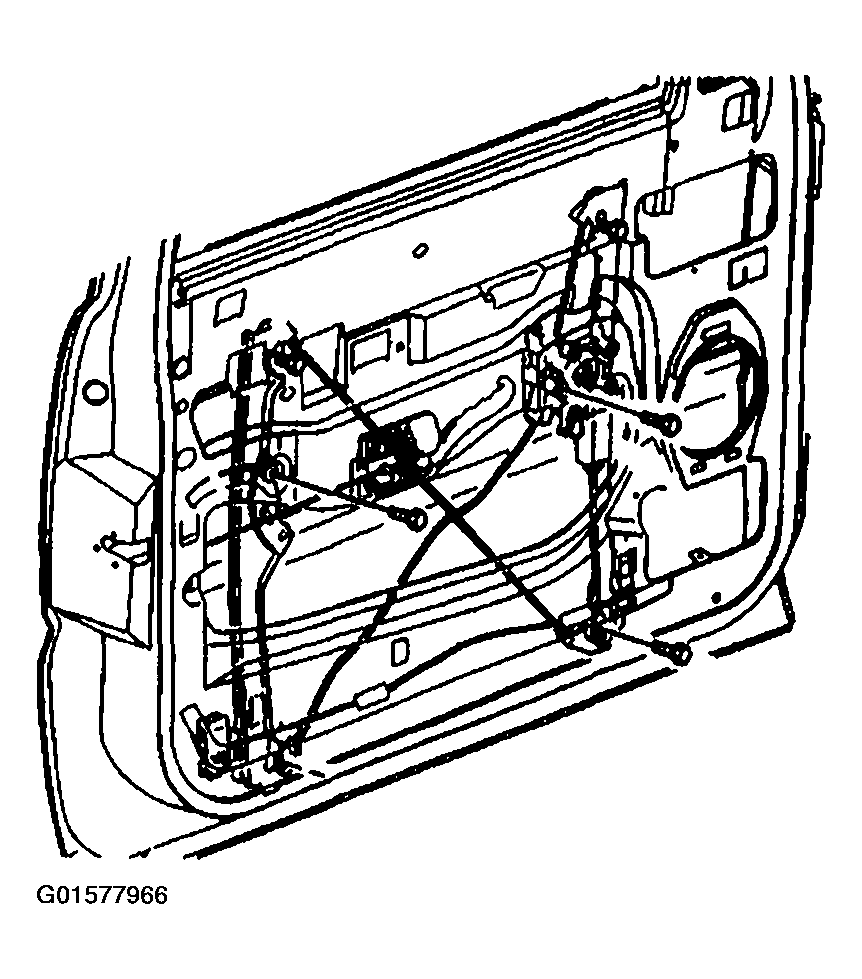

    Fig 1: Installing Front Power Window Module
    G01577966Courtesy of GENERAL MOTORS CORP.
