Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the module to the door.
  2. Install the glass weatherstrip.
  3. Install the Window sash.
  4. Install the window glass. Refer to Window Replacement - Rear Door   .
  5. Install the water deflector. Refer to Water Deflector Replacement - Rear Door (Crew Cab)   .
  6. Install the trim panel. Refer to Trim Panel Replacement - Side Rear Door (Crew Cab)   .

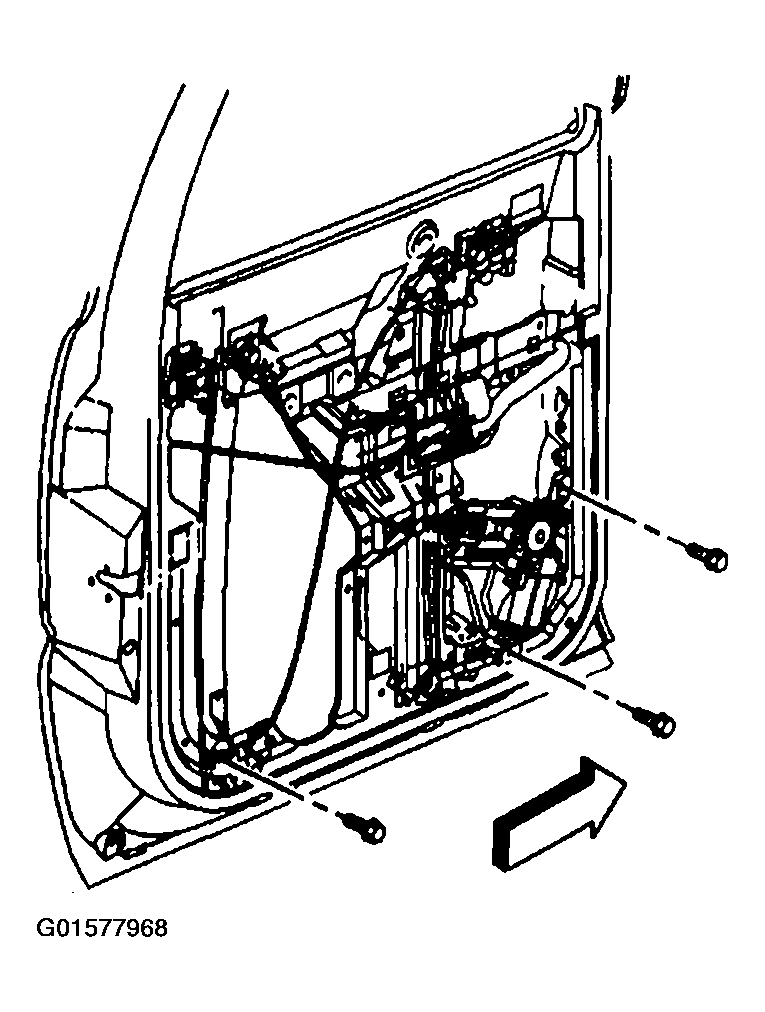

    Fig 1: Installing Rear Power Window Module
    G01577968Courtesy of GENERAL MOTORS CORP.
