Door Control Module Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

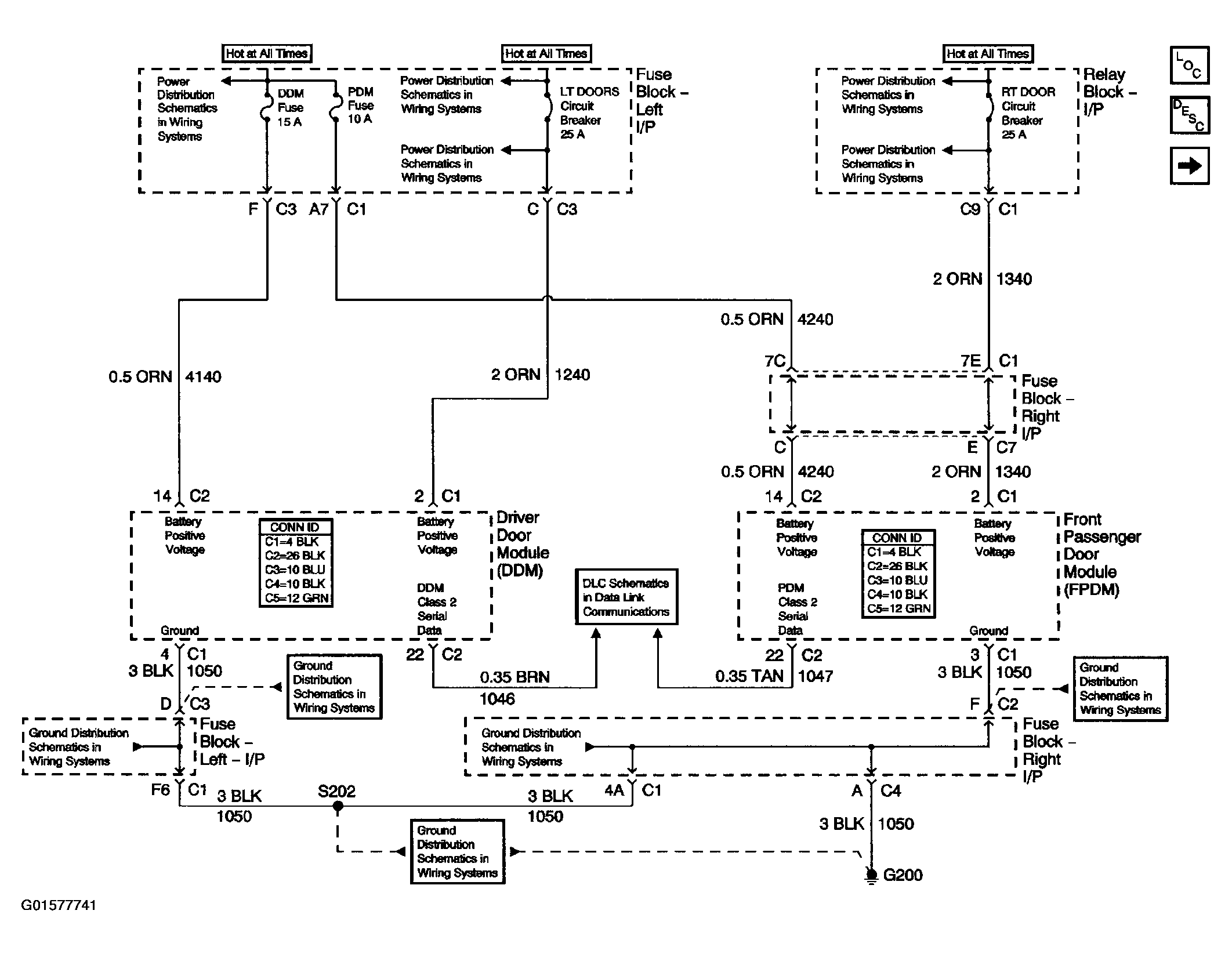

Fig 1: Door Control Module Schematics (Power, Ground & Class 2)

Courtesy of GENERAL MOTORS CORP.

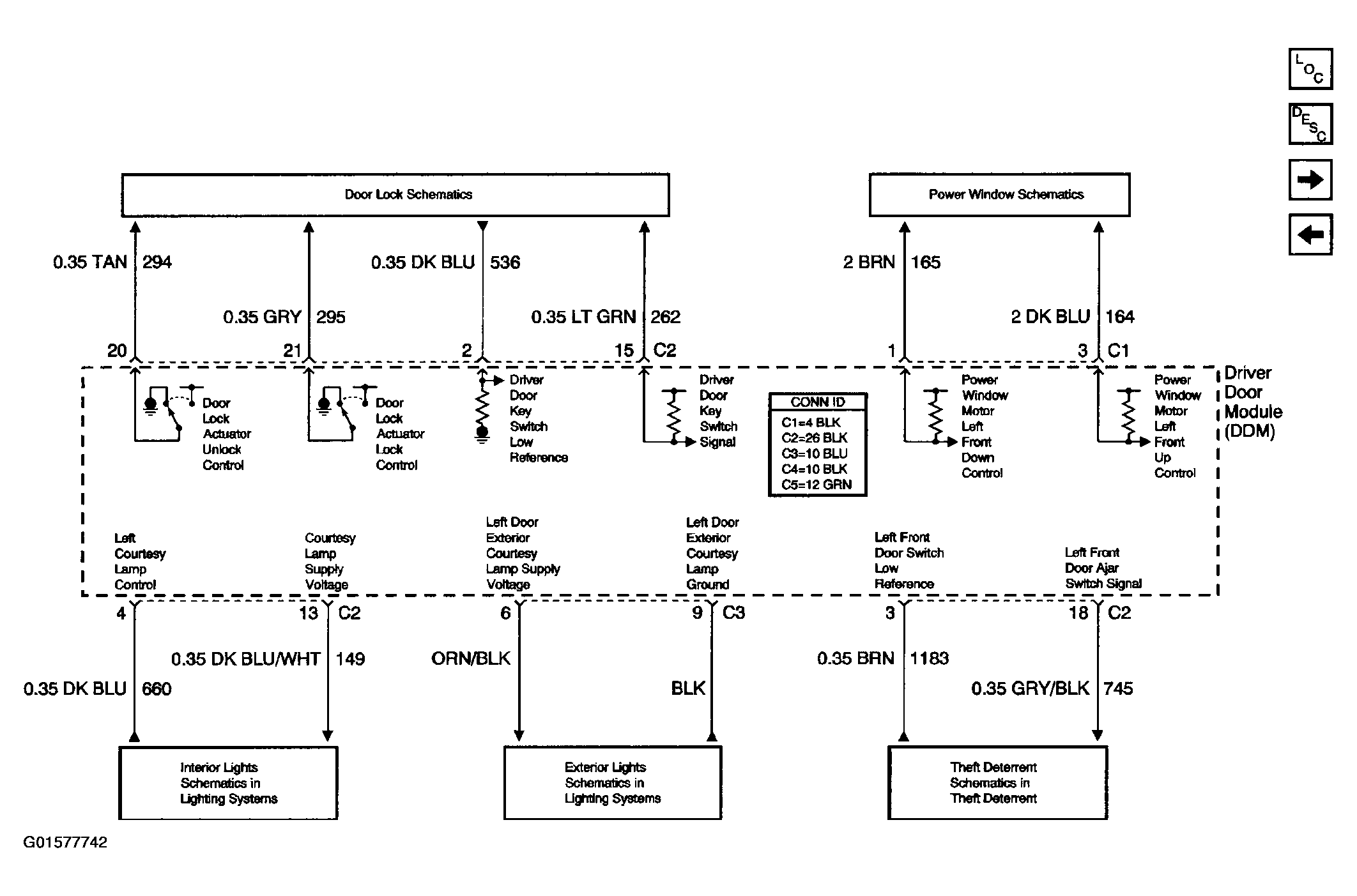

Fig 2: Door Control Module Schematics - Driver Door Module (DDM) References (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

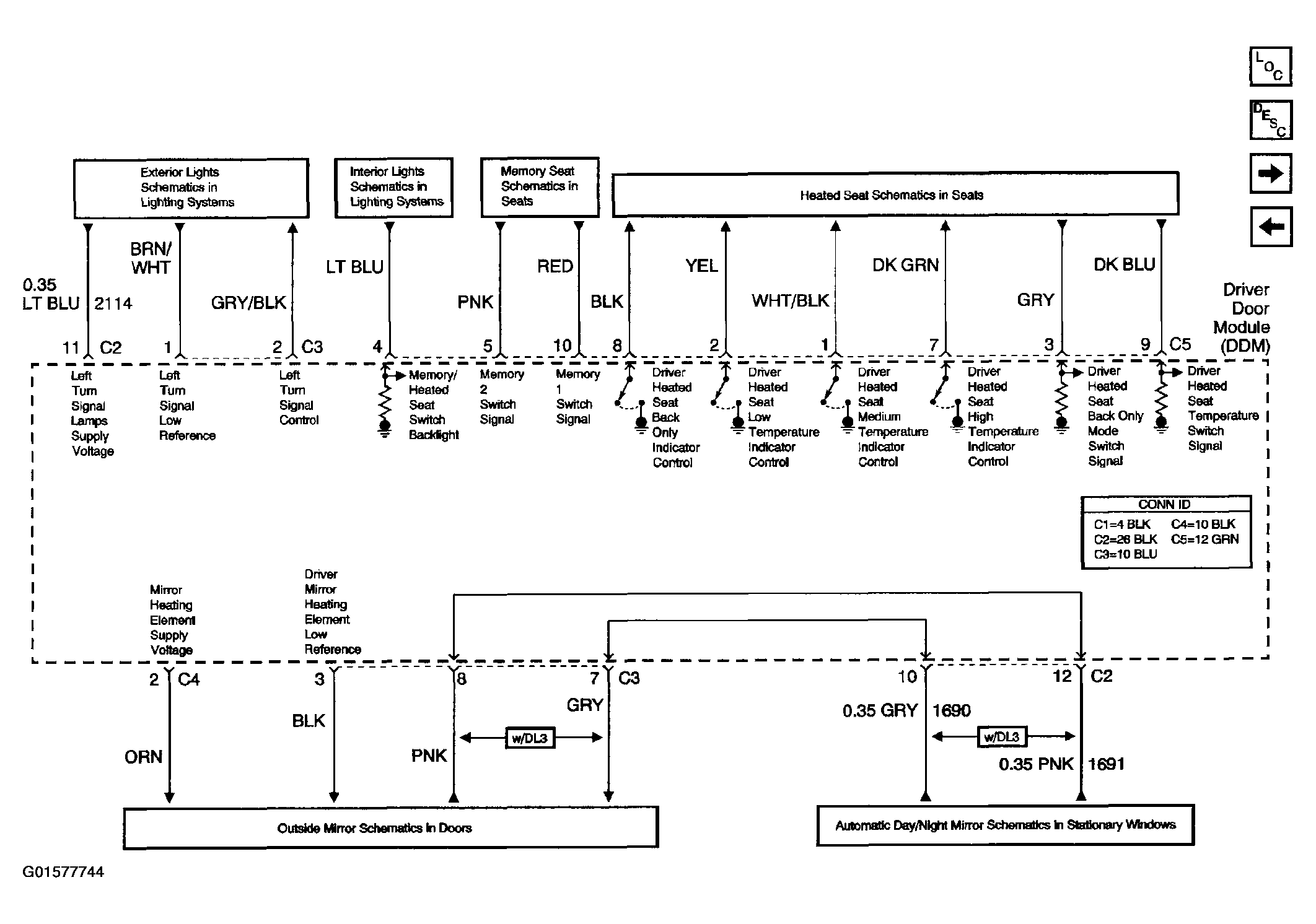

Fig 3: Door Control Module Schematics - Driver Door Module (DDM) References (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

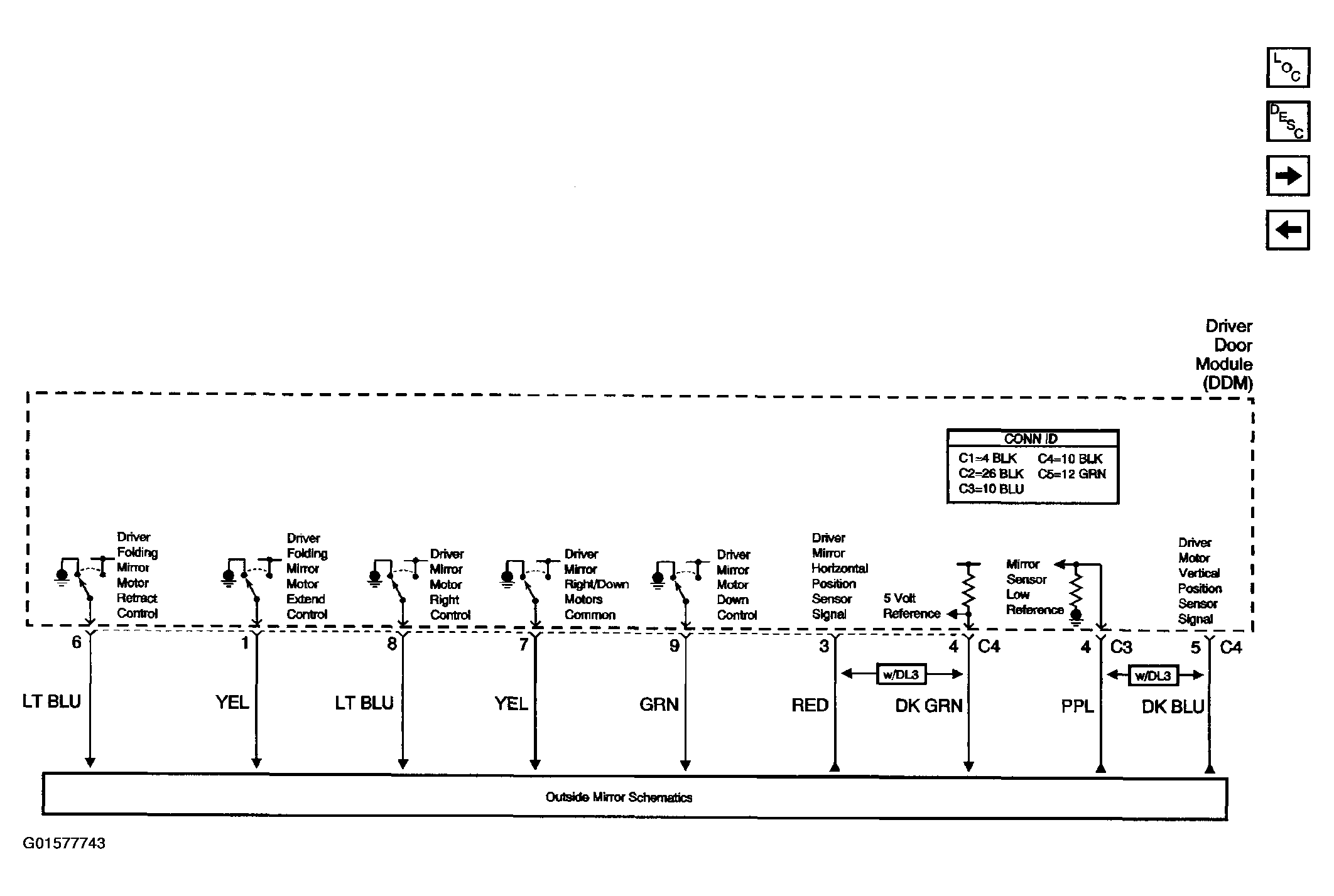

Fig 4: Door Control Module Schematics - Driver Door Module (DDM) References (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

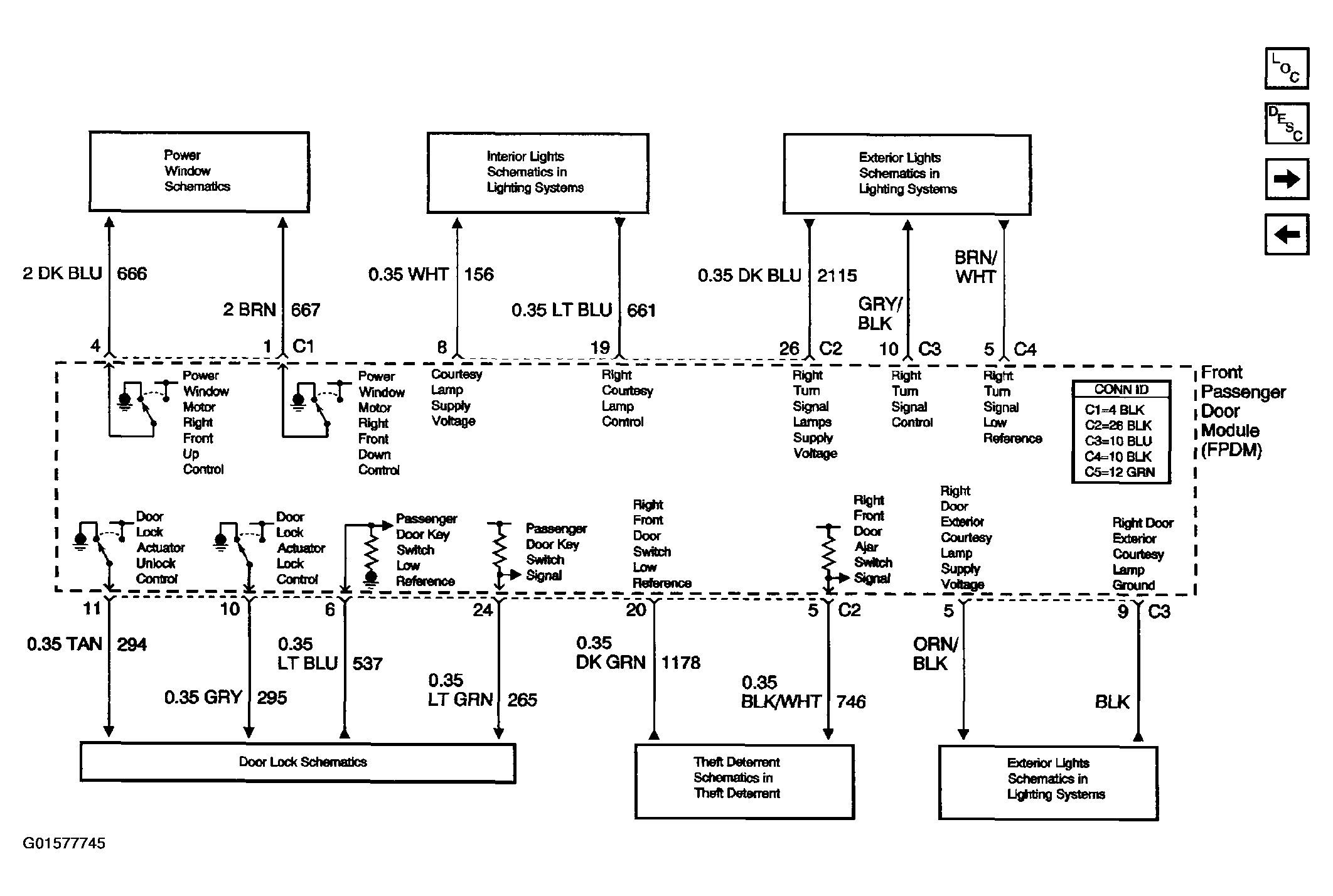

Fig 5: Door Control Module Schematics - Front Passenger Door Module (FPDM) References (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

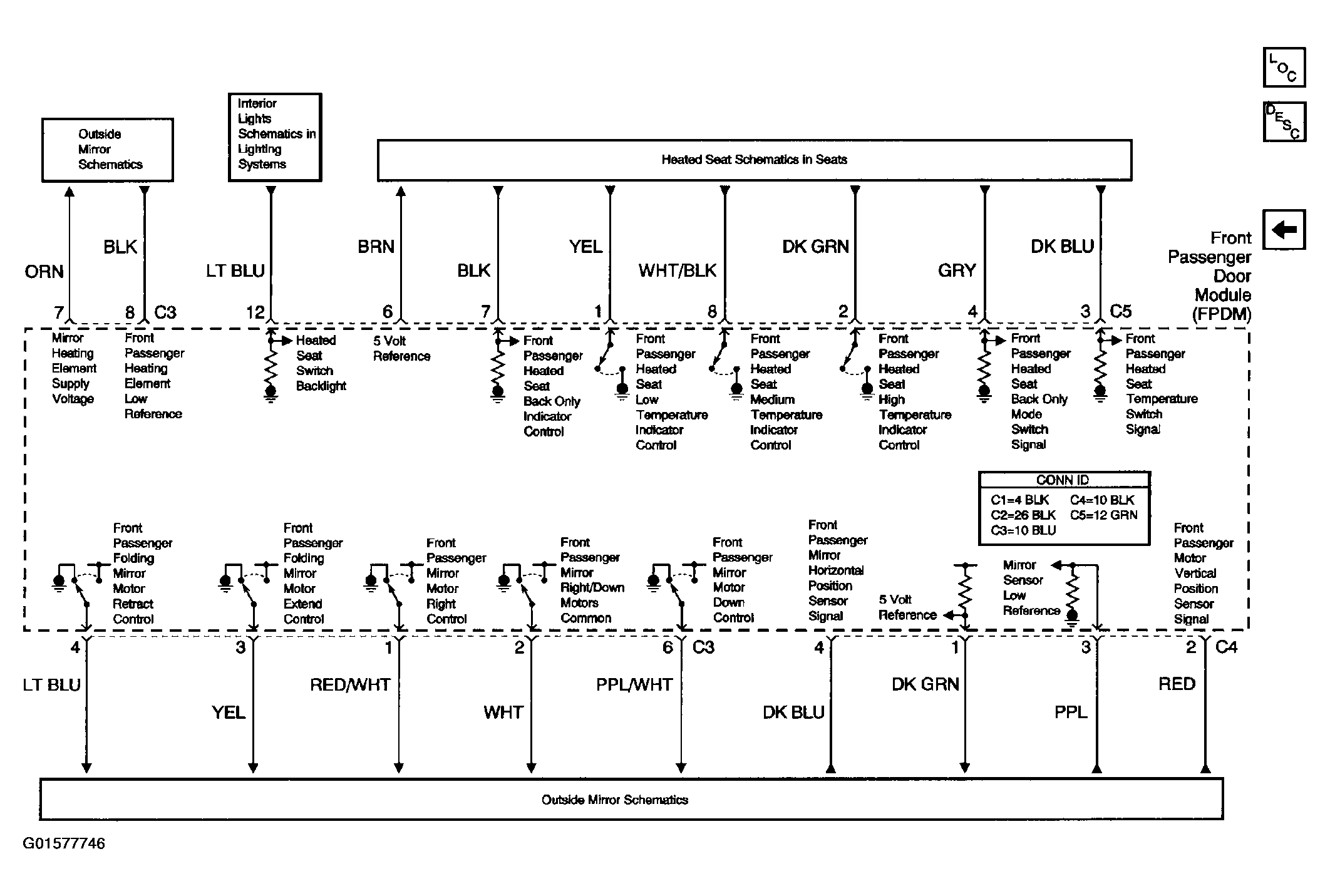

Fig 6: Door Control Module Schematics - Front Passenger Door Module (FPDM) References (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
