Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

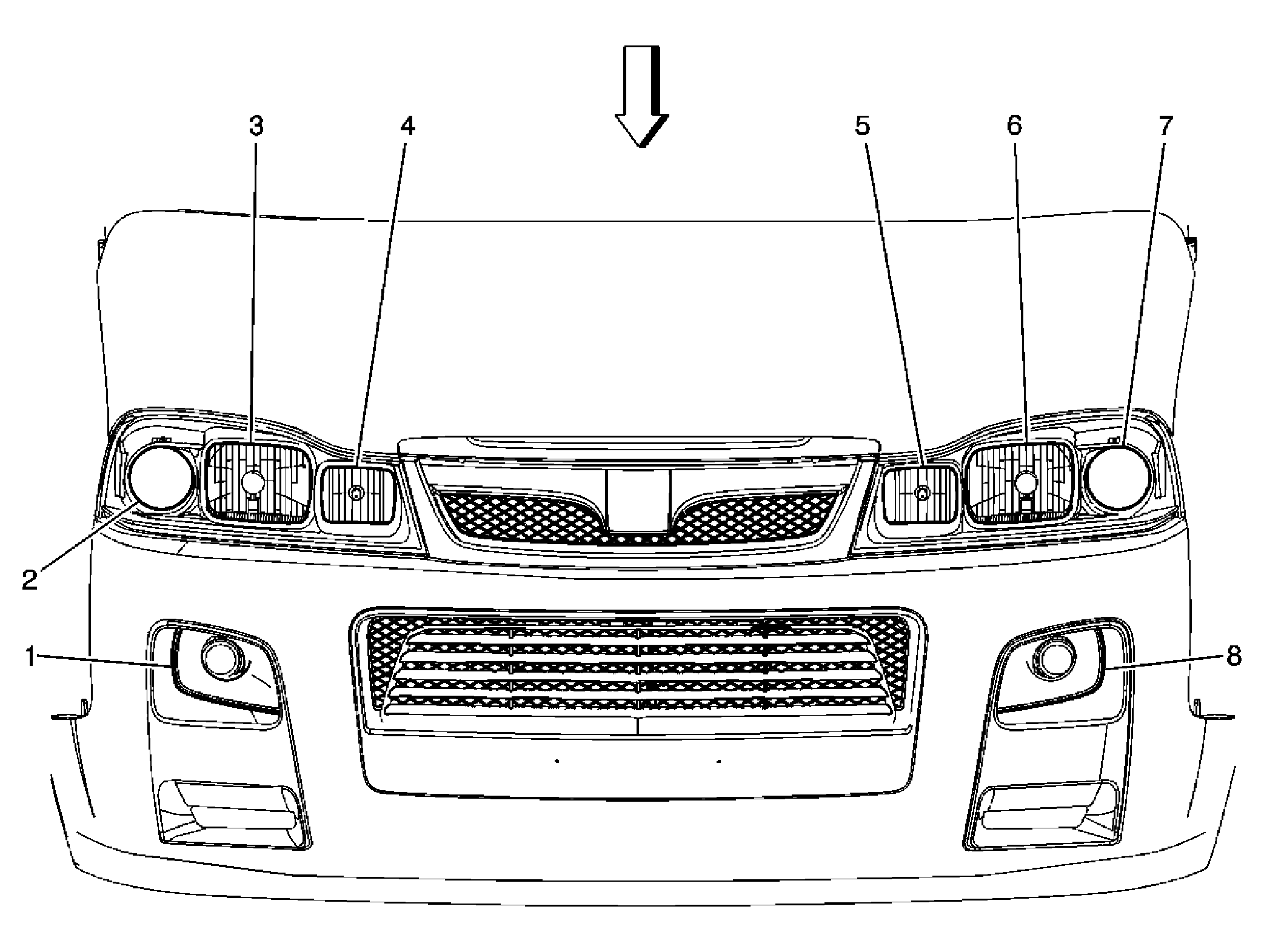

Fig 1: Front of Vehicle
GM1782063Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp-Right (T96)
2 Park/Turn Signal Lamp-RF
3 Headlamp-Right-High Beam
4 Headlamp-Right-Low Beam
5 Headlamp-Left-Low Beam
6 Headlamp-Left-High Beam
7 Park/Turn Signal Lamp-RF
8 Fog Lamp-Left (T96)

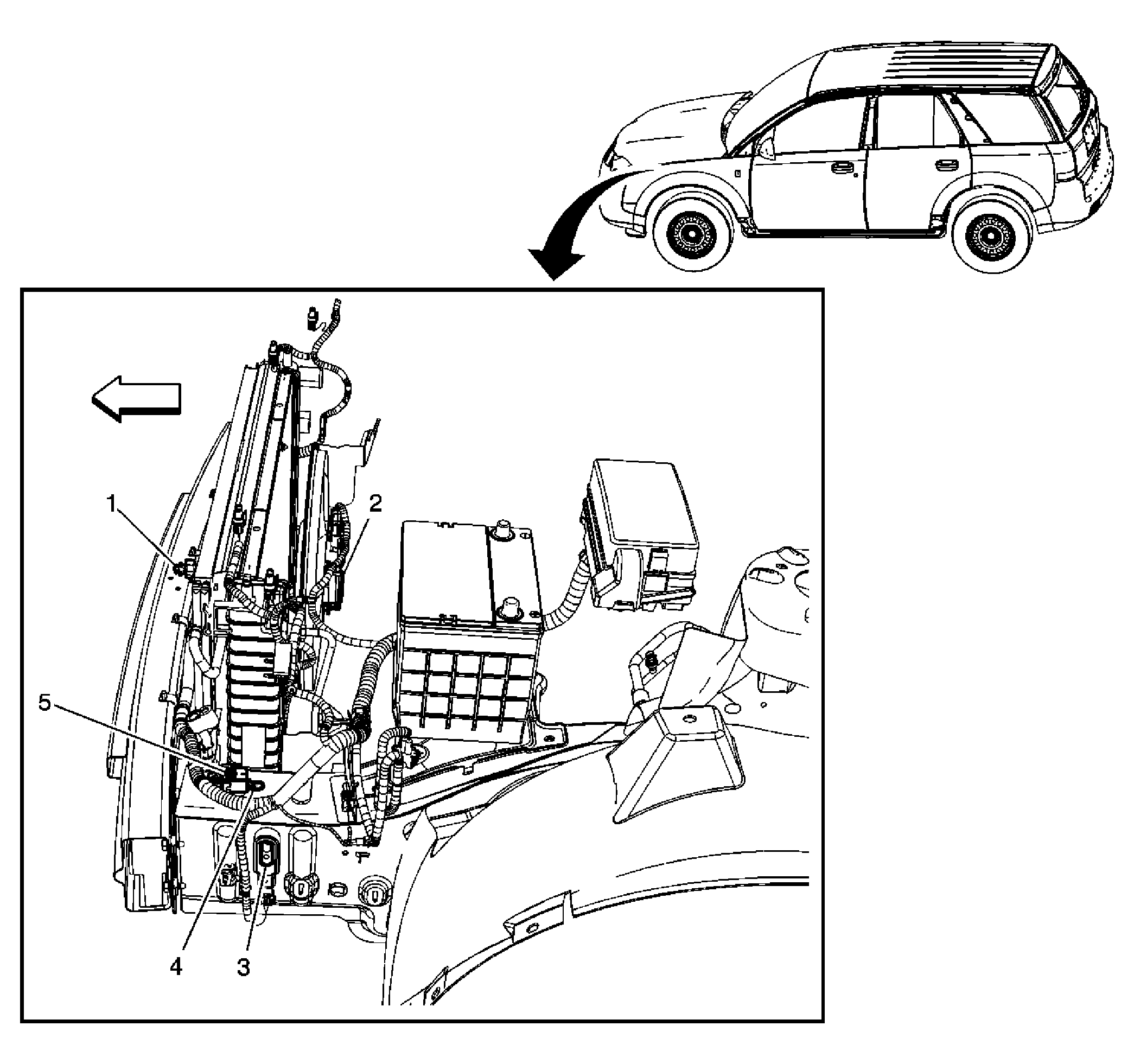

Fig 2: Front of Engine Compartment
GM1803483Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Air Temperature Sensor (DH3)
2 Cooling Fan
3 Daytime Running Lamps (DRL) Resistor
4 G101
5 SP101

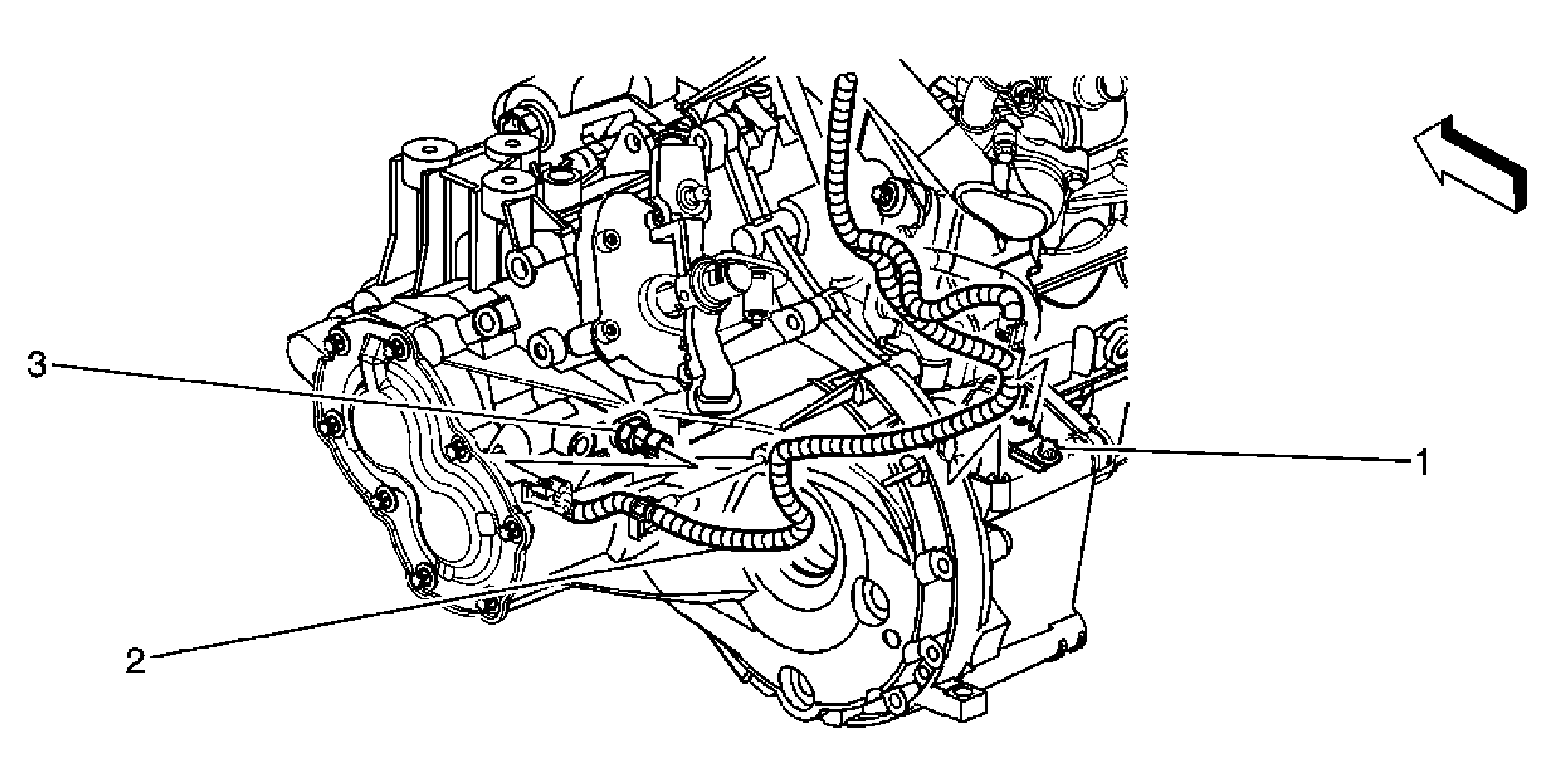

Fig 3: Manual Transmission Component Location View
GM1333603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Speed Sensor (VSS) (3 BK)
2 Engine Wiring Harness
3 Backup Switch (2 BK)

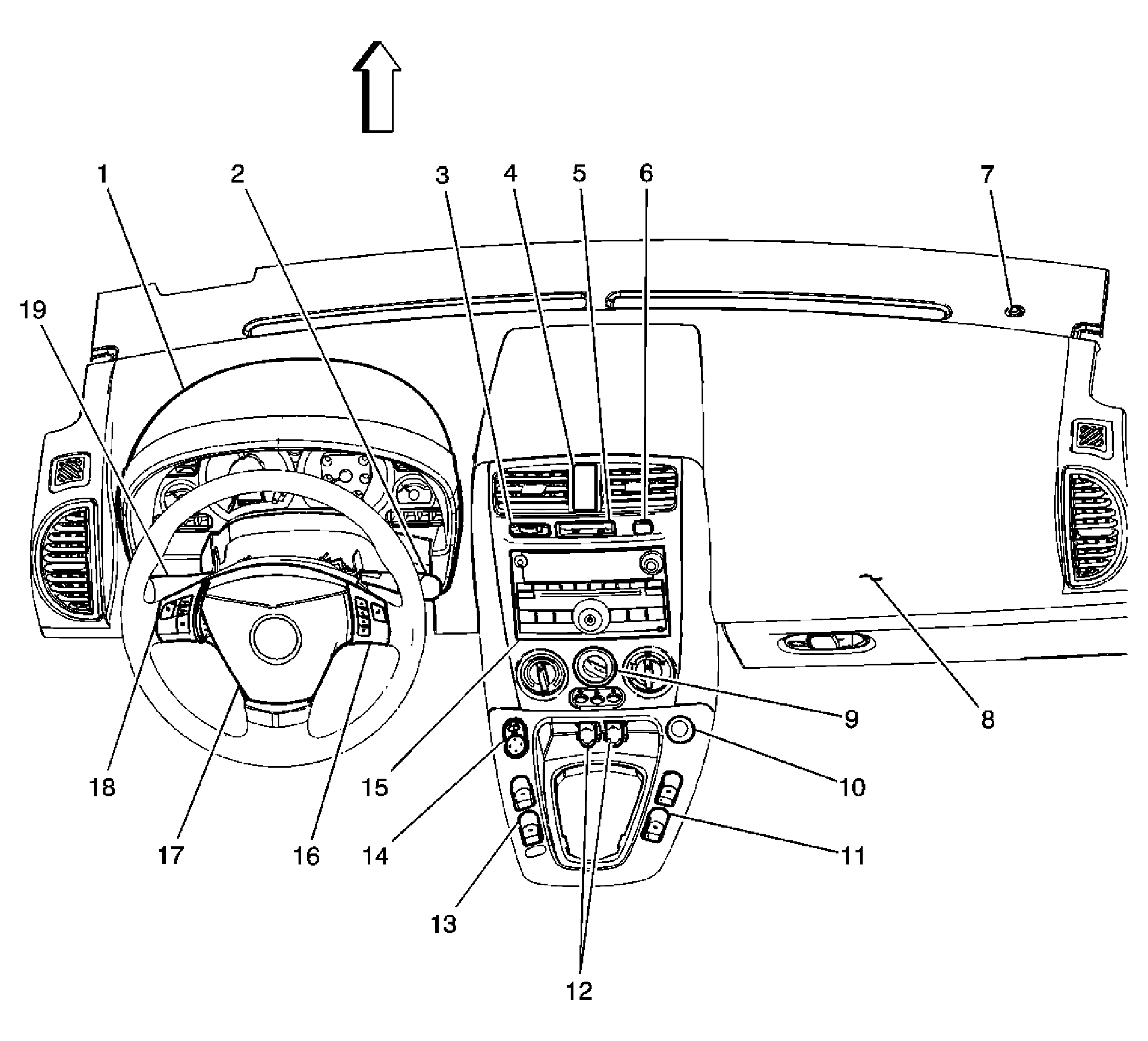

Fig 4: Instrument Panel Components
GM1781191Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster (IPC)
2 Windshield Wiper/Washer Switch
3 I/P Dimmer Control
4 Hazard Switch
5 Inflatable Restraint Front Passenger Presence System (PPS) Indicator
6 Fog Lamp (T96) or Traction Control Switch (NW9)
7 Ambient Light Sensor
8 Inflatable Restraint I/P Module
9 HVAC Control Module
10 Cigar Lighter (DT4)
11 Window Switch - Passenger
12 Heated Seat Switches
13 Window Switch - Driver
14 Outside Rearview Mirror Switch (D22/DG7)
15 Radio
16 Steering Wheel Control Switch - Right (Radio)
17 Inflatable Restraint Steering Wheel Module
18 Steering Wheel Control Switch - Left (Cruise Control)
19 Turn Signal/Multifunction Switch

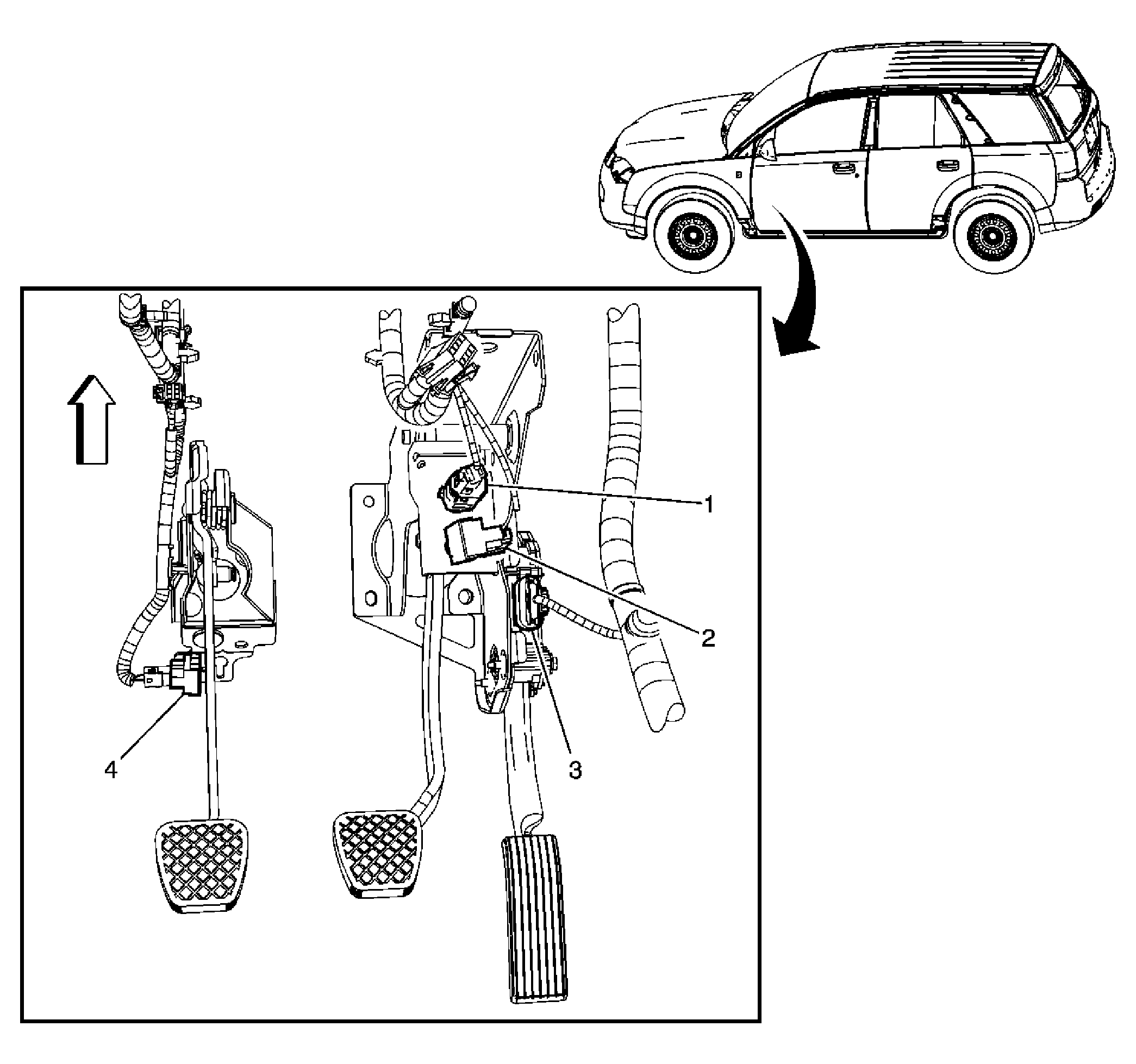

Fig 5: Lower Left Side of I/P
GM1803405Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cruise Release Switch
2 Stop Lamp Switch
3 Accelerator Pedal Position (APP) Sensor
4 Clutch Start Switch (M/T)

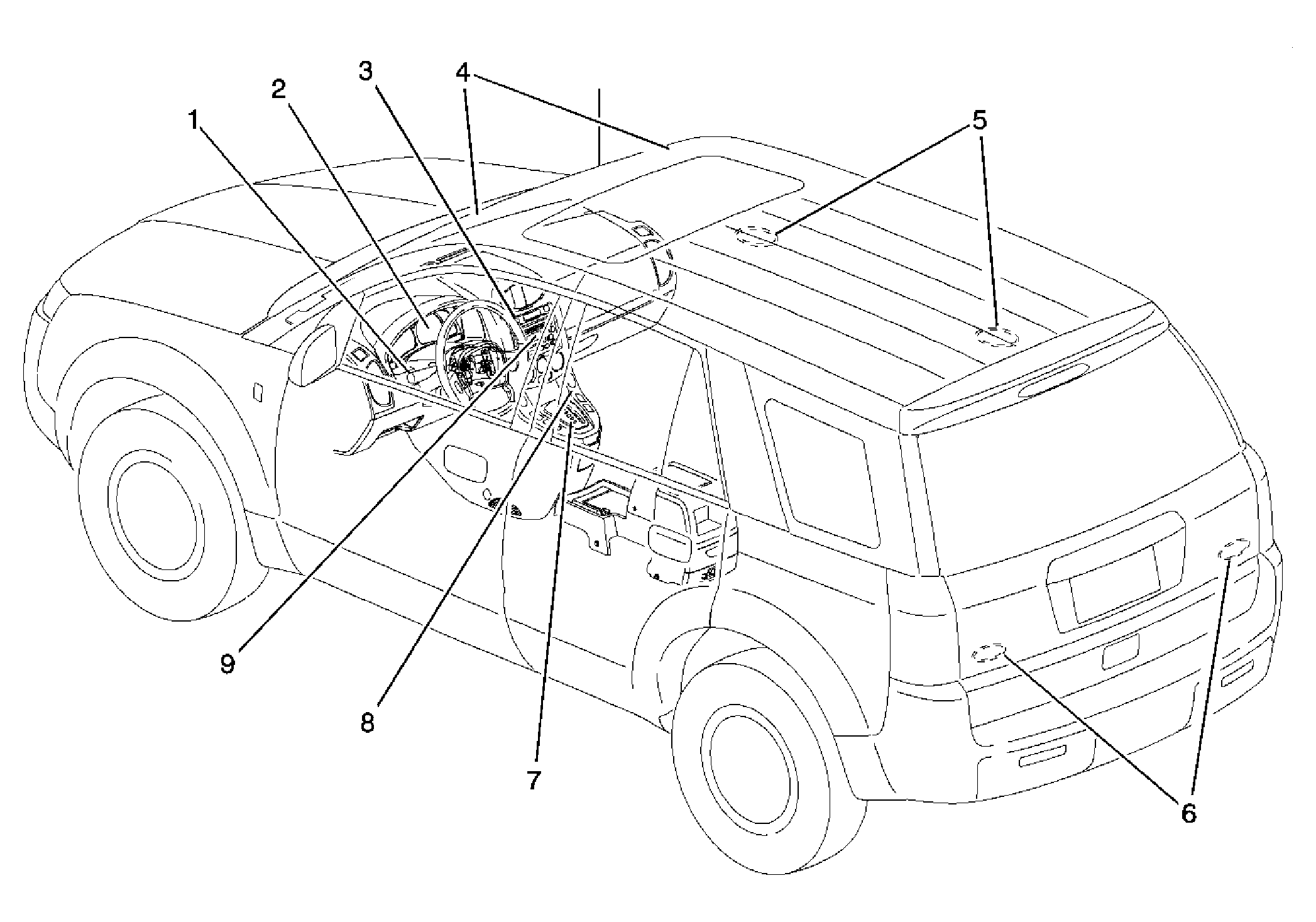

Fig 6: Lighting Systems Component Views
GM932651Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Instrument Panel Cluster (IPC)
3 Dimmer Switch
4 Sunshade
5 Dome Lamps, Front and Rear
6 Liftgate Lamps, Left and Right
7 PRNDL Lamp
8 Cigar Lighter
9 Radio

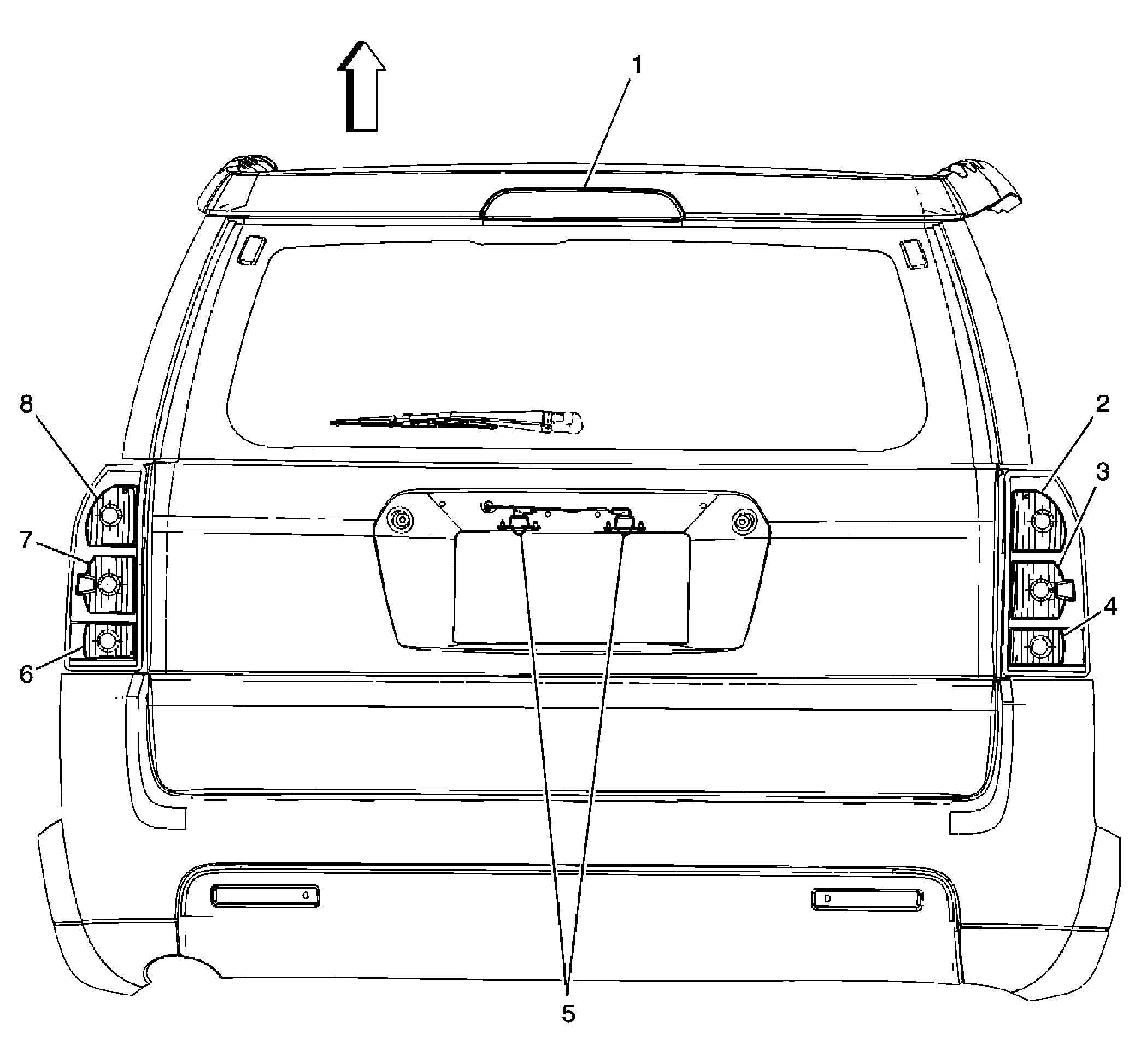

Fig 7: Rear of Vehicle
GM1782045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL)
2 Park/Stop Lamp-RR
3 Park/Turn Signal Lamp-RR
4 Backup Lamp-Right
5 License Lamps
6 Backup Lamp-Left
7 Park/Turn Signal Lamp-LR
8 Park/Stop Lamp-LR
