Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

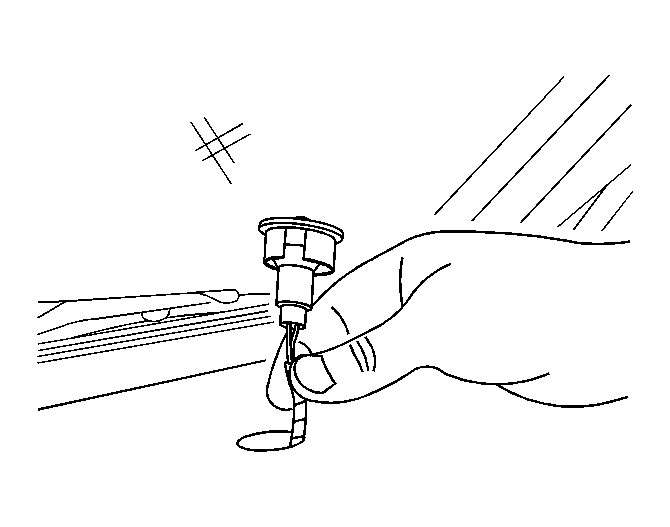

    Fig 1: View Of Ambient Light Sensor
    GM1109018Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the sensor.
  2. Press the sensor into place.
