Throttle Actuator Control Module Connector End View C2 (Except Hummer H2)

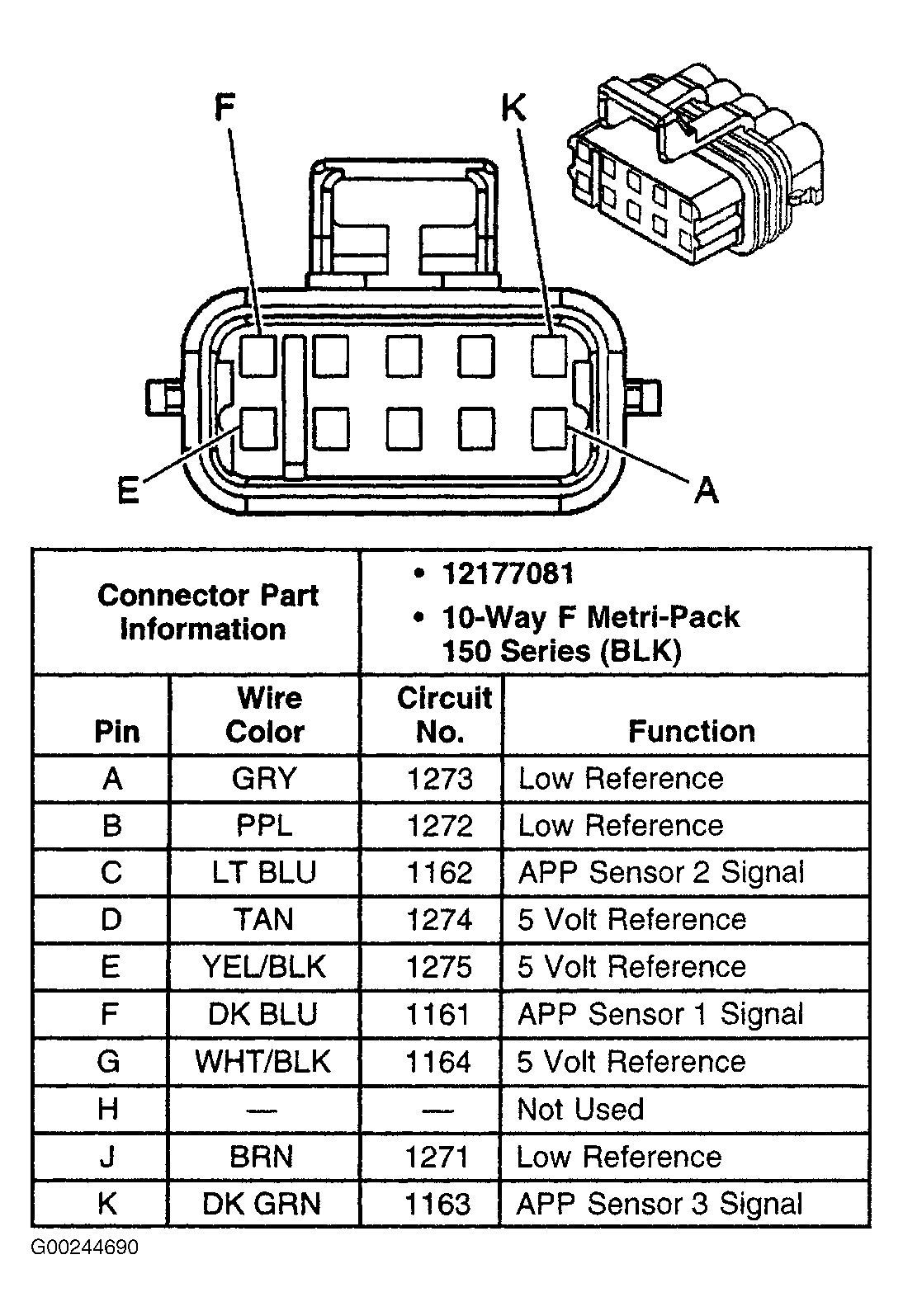

Fig 1: Throttle Actuator Control Module C2 Connector End View (Except Hummer H2)
G00244690Courtesy of GENERAL MOTORS CORP.
