Door Lock/Indicator Schematics

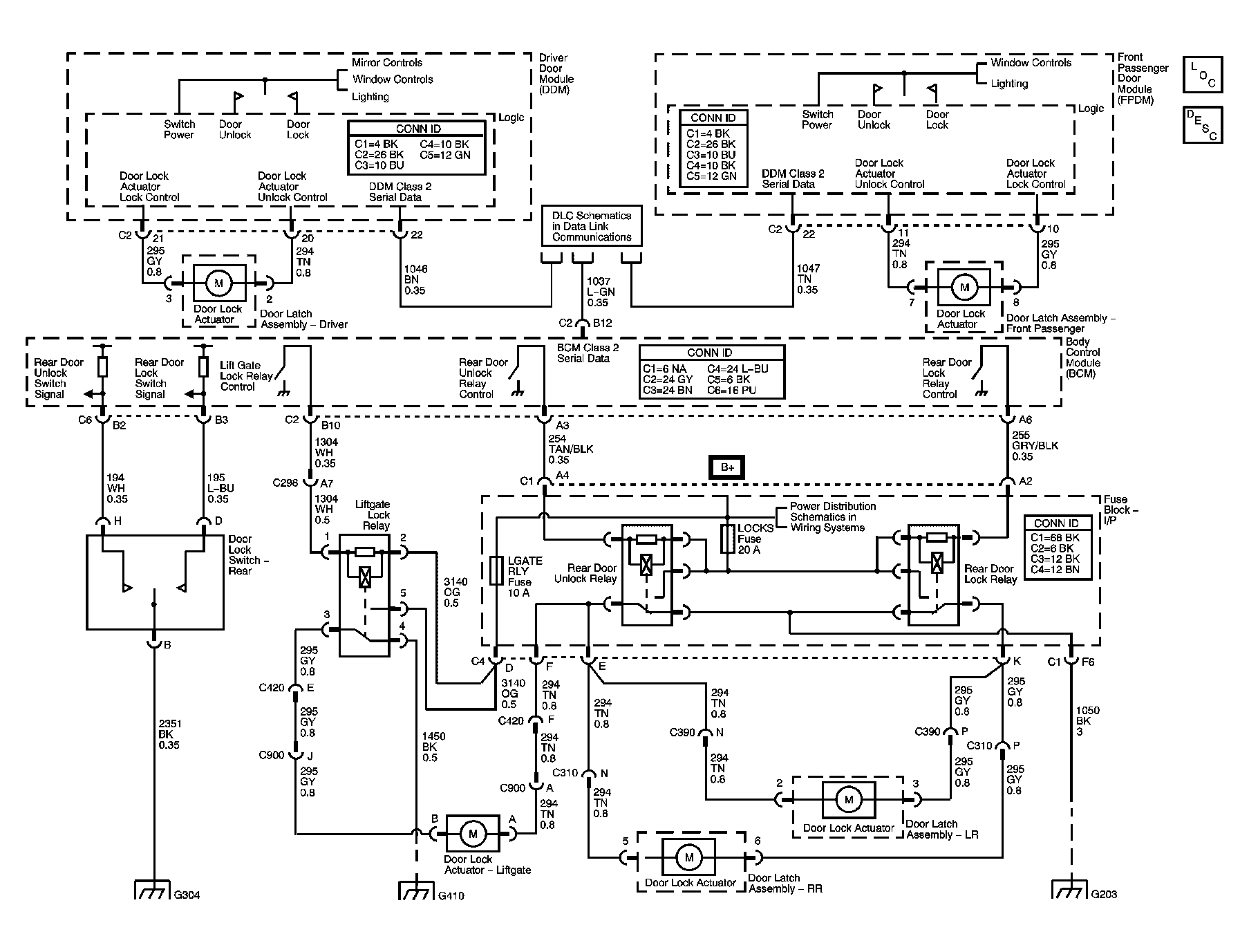

Fig 1: Door/Lock Indicator

GM1196124

Courtesy of GENERAL MOTORS CORP.
