Engine Electrical Component Views

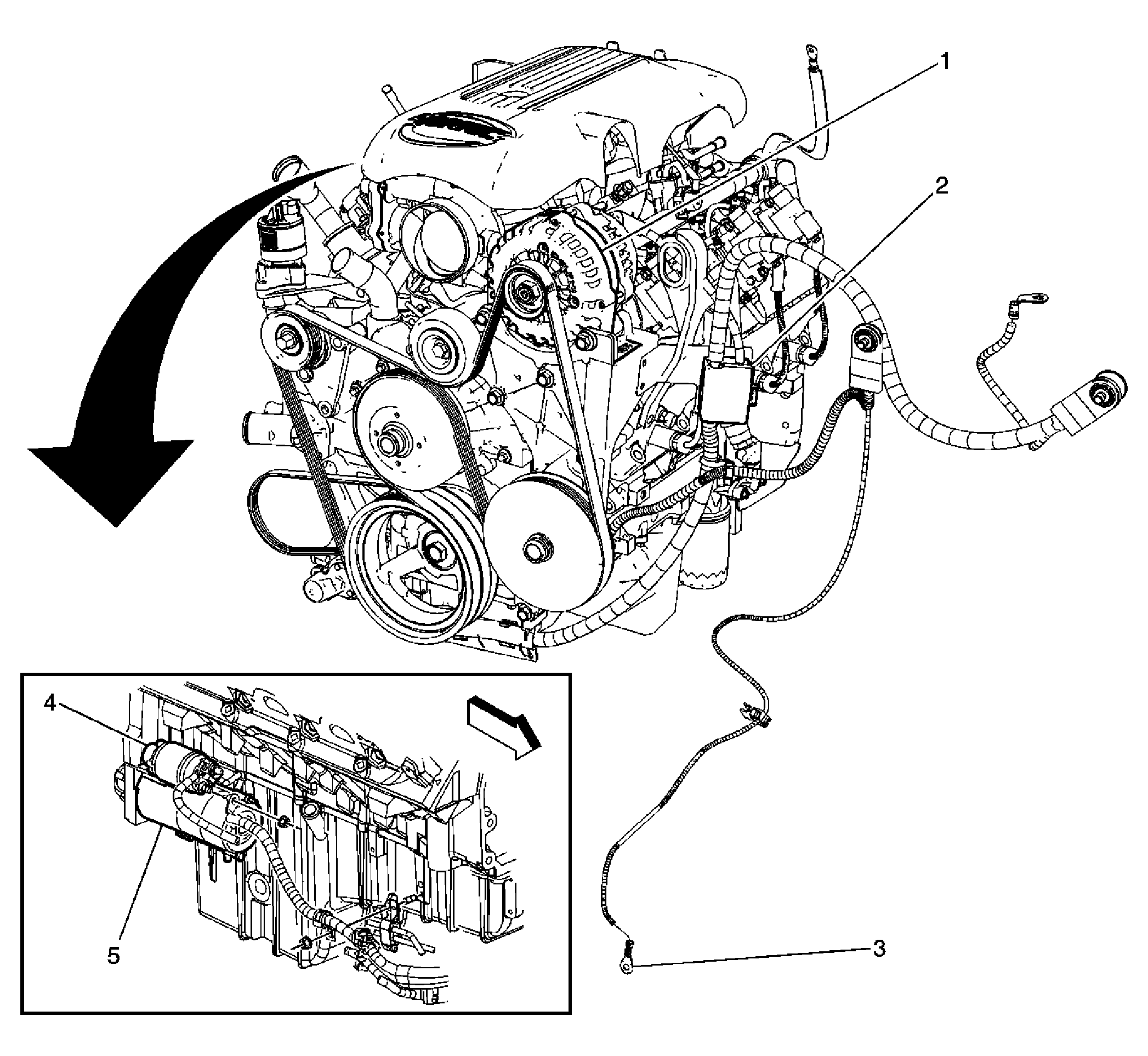

Fig 1: Engine Electrical Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
2	Junction Block - Battery Cable
3	G100
4	Starter Solenoid
5	Starter

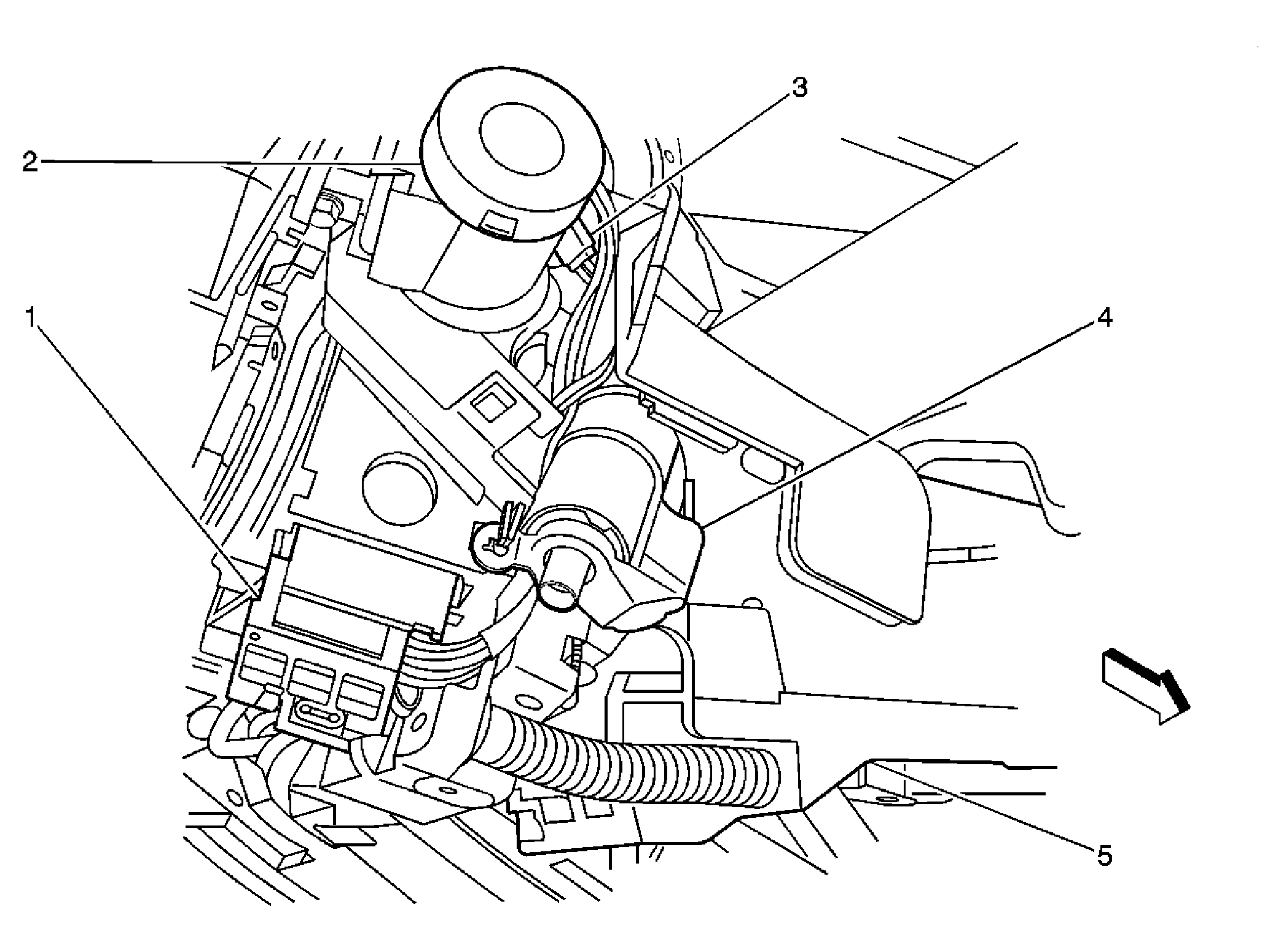

Fig 2: Top Of Steering Column Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Passlock Sensor
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Actuator
5	Steering Column
