Front Drive Axle Disassembled Views

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

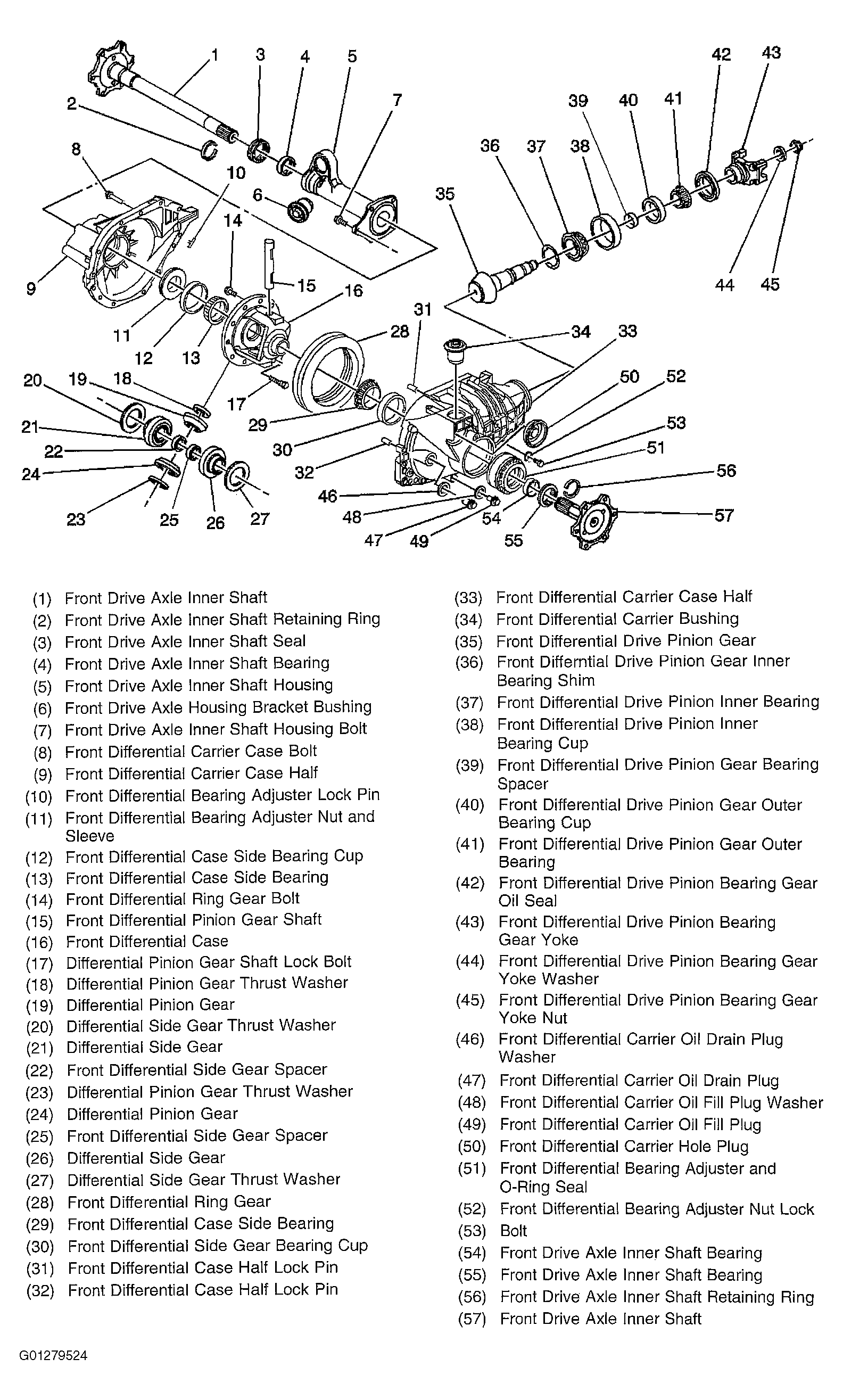

Fig 1: Exploded View Of Front Drive Axle Components
G01279524Courtesy of GENERAL MOTORS CORP.
