Axle Preload & Backlash Specifications
WARNING:
This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

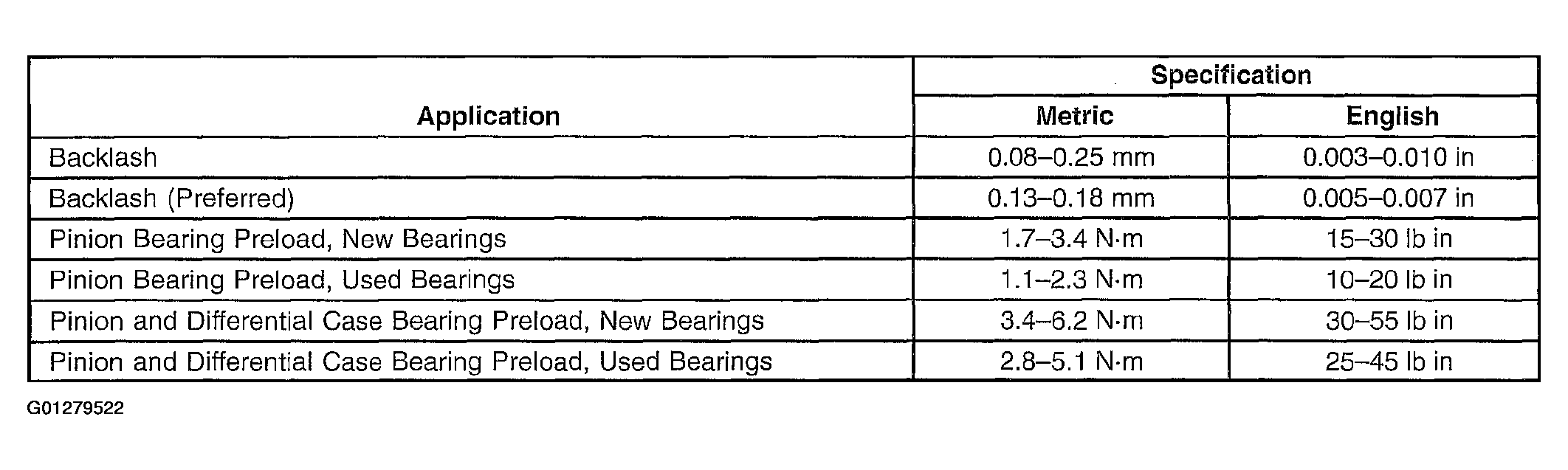

Fig 1: Axle Preload & Backlash Specifications Table
Courtesy of GENERAL MOTORS CORP.
