ABS Component Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

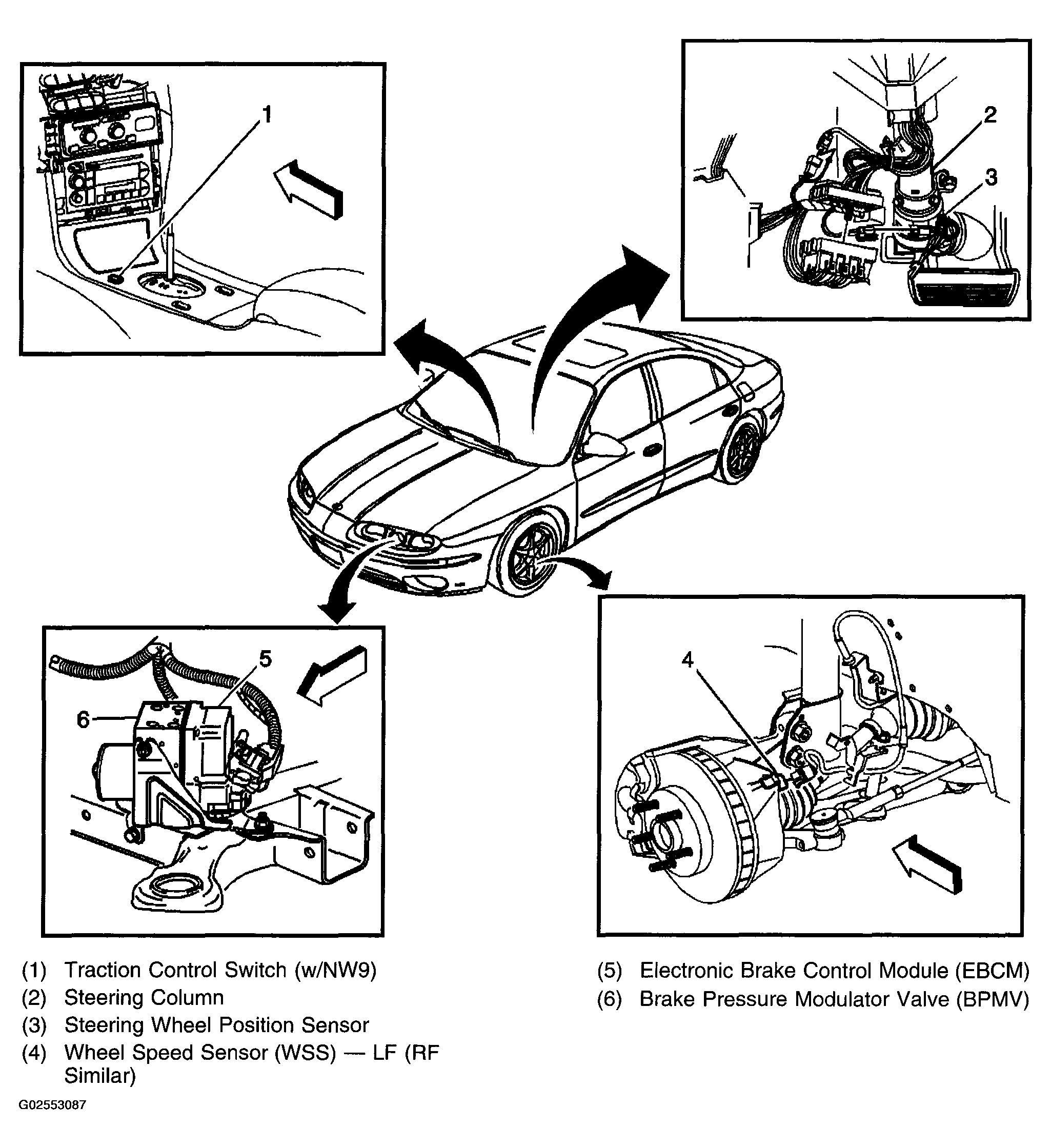

Fig 1: Locating Antilock Brake Sub-System Components (Front)

Courtesy of GENERAL MOTORS CORP.

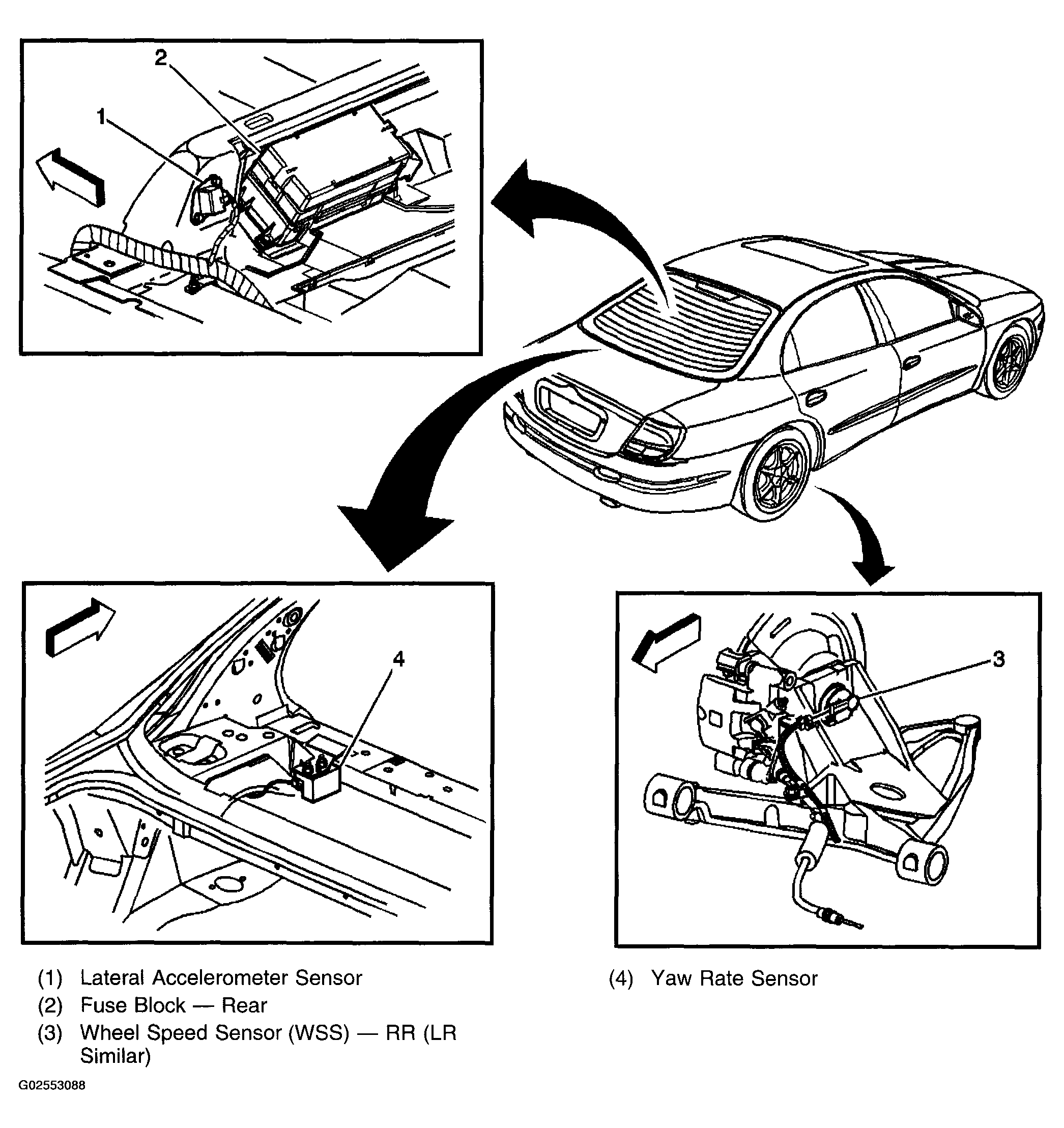

Fig 2: Locating Antilock Brake Sub-System Components (Rear)

Courtesy of GENERAL MOTORS CORP.
