Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer solvent level sensor in the washer solvent container.
    Fig 1: Installing Washer Solvent Level Sensor
    G01507027Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the washer solvent level sensor.
  3. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.
  4. Fill the washer solvent container.

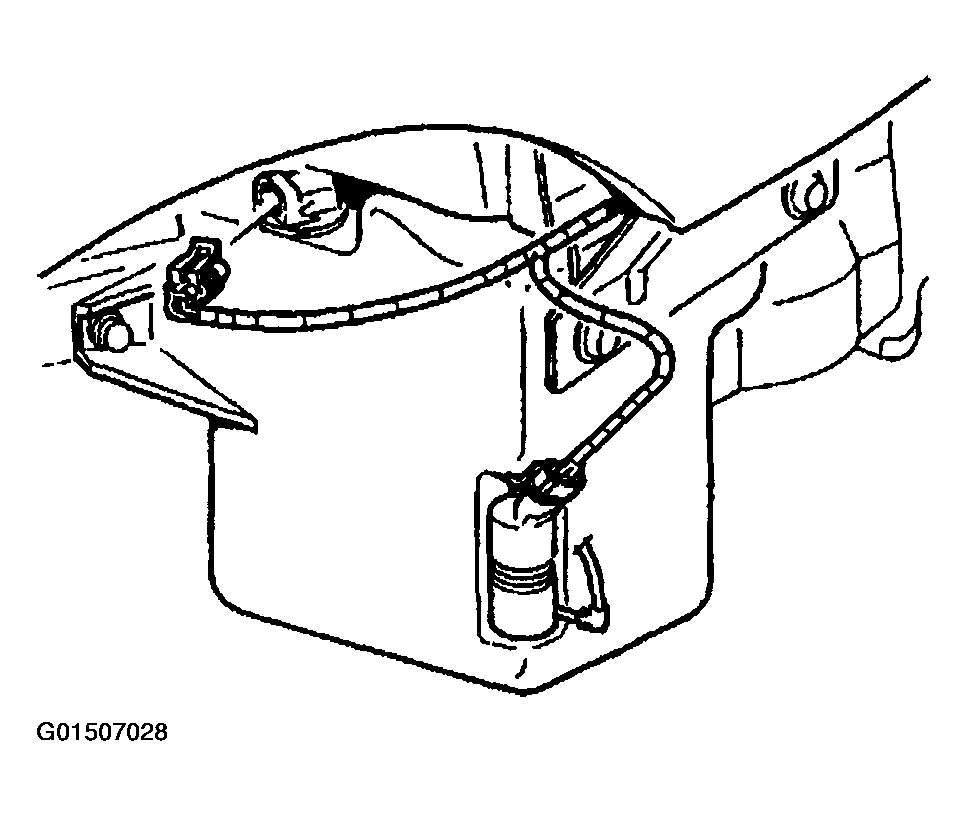

    Fig 2: Connecting Electrical Connector To Washer Solvent Level Sensor
    G01507028Courtesy of GENERAL MOTORS CORP.
