Installation Procedure

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

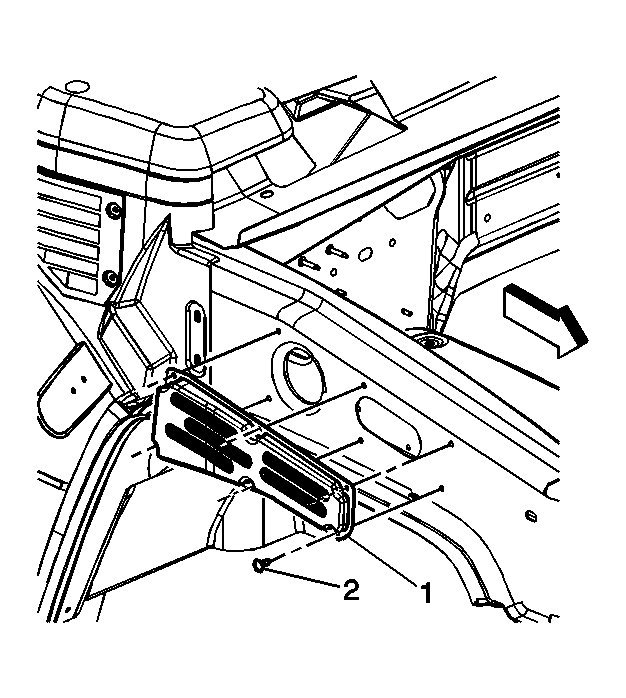

    Fig 1: Air Box Intake Screen
    GM861785Courtesy of GENERAL MOTORS CORP.
  1. Set the airbox intake screen (1) into position on the vehicle.
  2. Install the retainers securing the screen to the vehicle.
  3. Close the hood.
