Scan Tool Data List

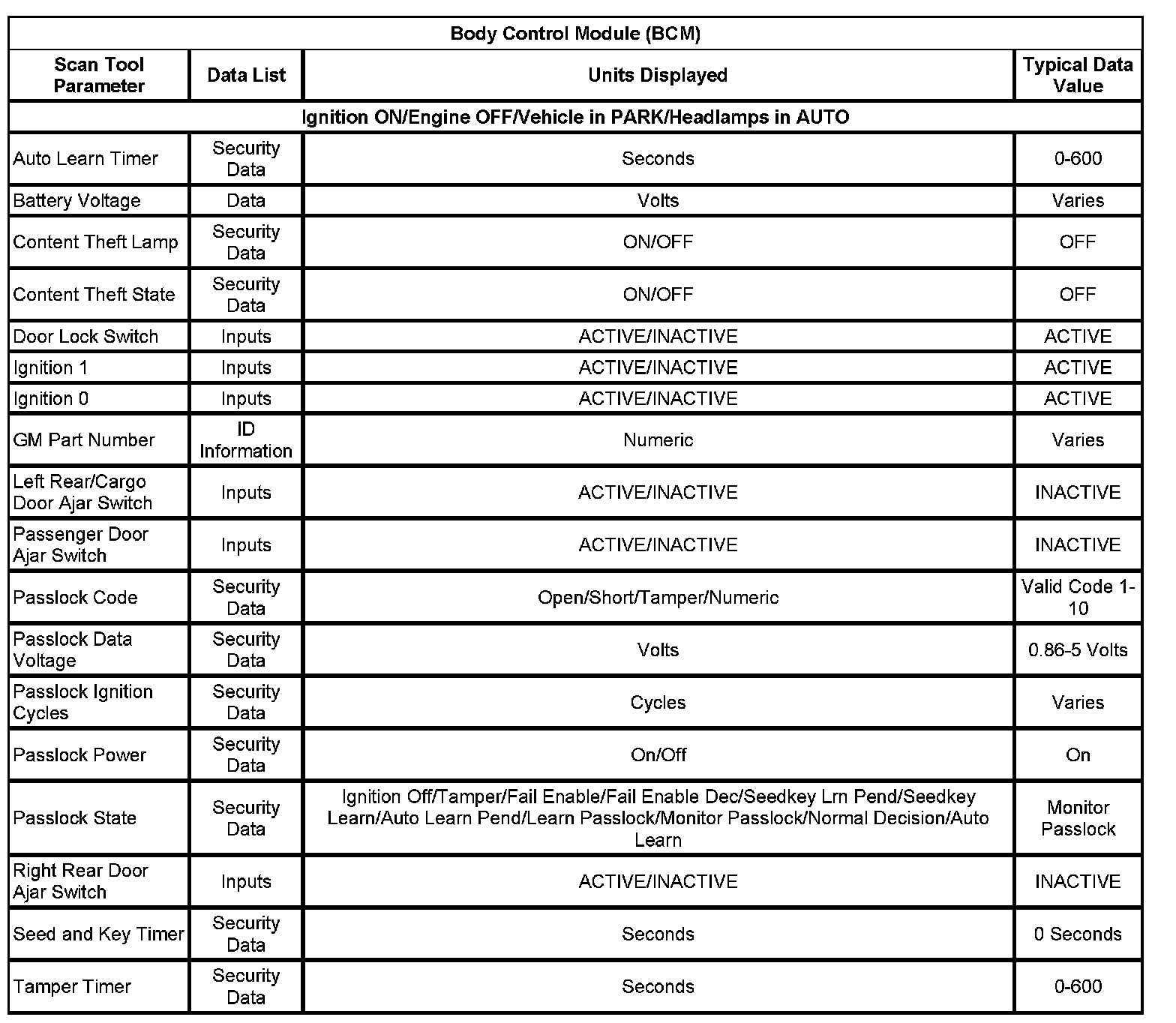

Body Control Module (BCM):



Driver Door Module (DDM):



Instrument Panel Cluster (IPC):



Powertrain Control Module (PCM):
