Installation Procedure

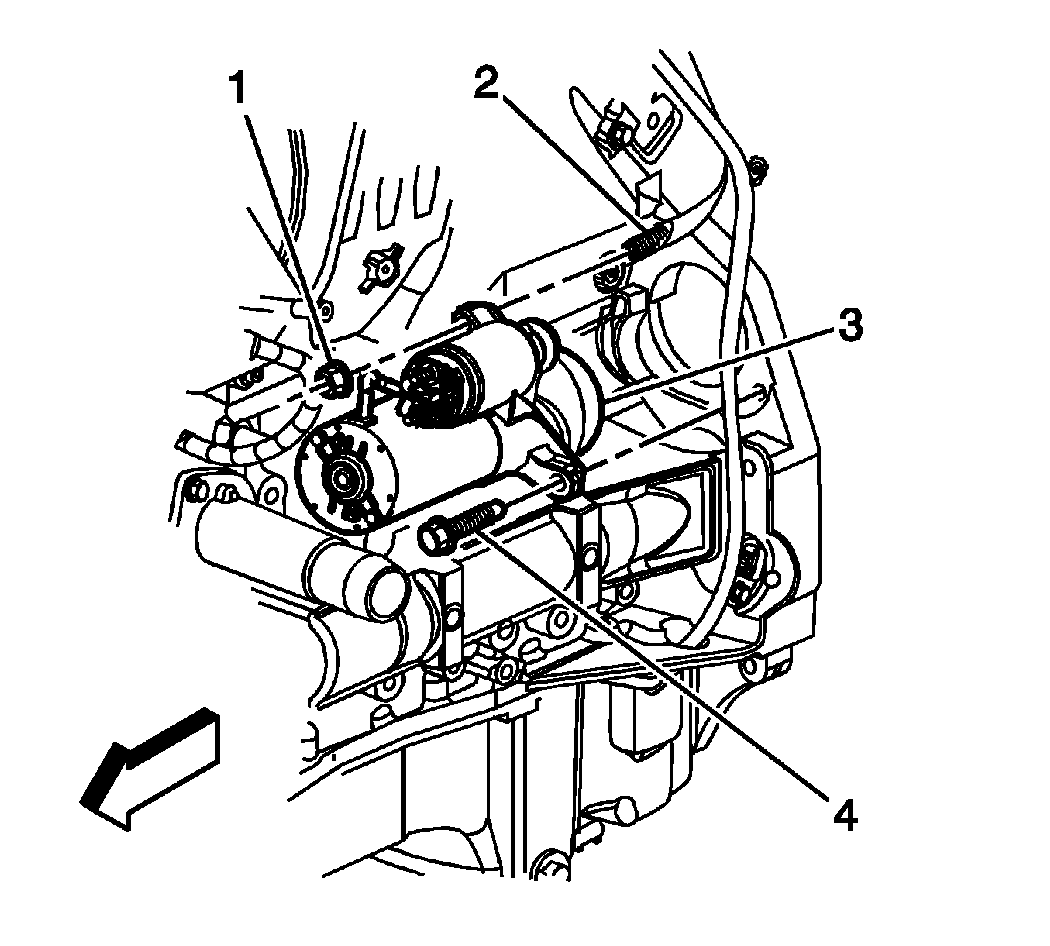

    Fig 1: View Of Starter Motor
    GM1313646Courtesy of GENERAL MOTORS CORP.
  1. Position the starter motor (3) over the stud (2).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the starter motor nut (1) and bolt (4).

    Tighten:  Tighten the bolt/nut to 50 N.m (37 lb ft).

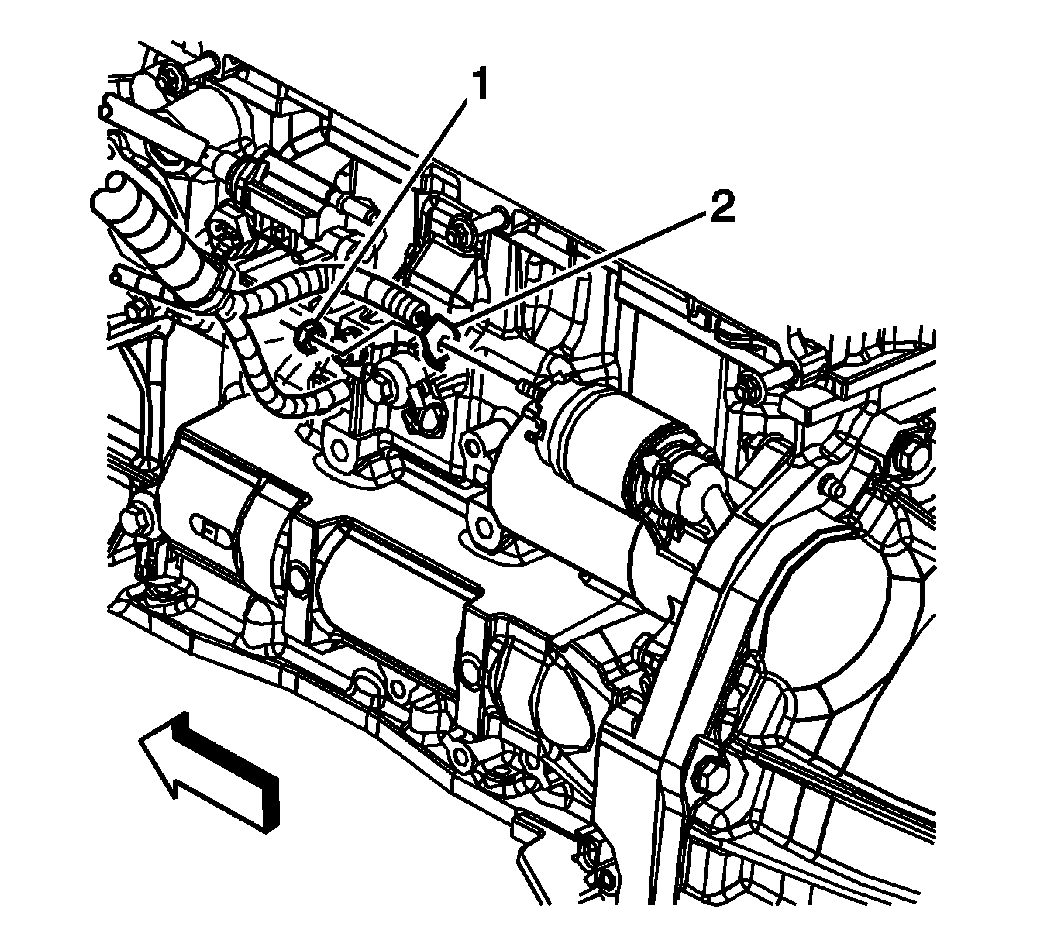

    3. Fig 2: Starter Wiring
    GM1560047Courtesy of GENERAL MOTORS CORP.
  3. Connect the battery positive cable (2) to the starter and install the starter terminal nut (1)

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

  4. Connect the lead to the starter solenoid and install the starter solenoid S terminal nut.

    Tighten:  Tighten the nut to 3.5 N.m (31 lb in).

  5. Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical - 3.5L (L52).
