SIR Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

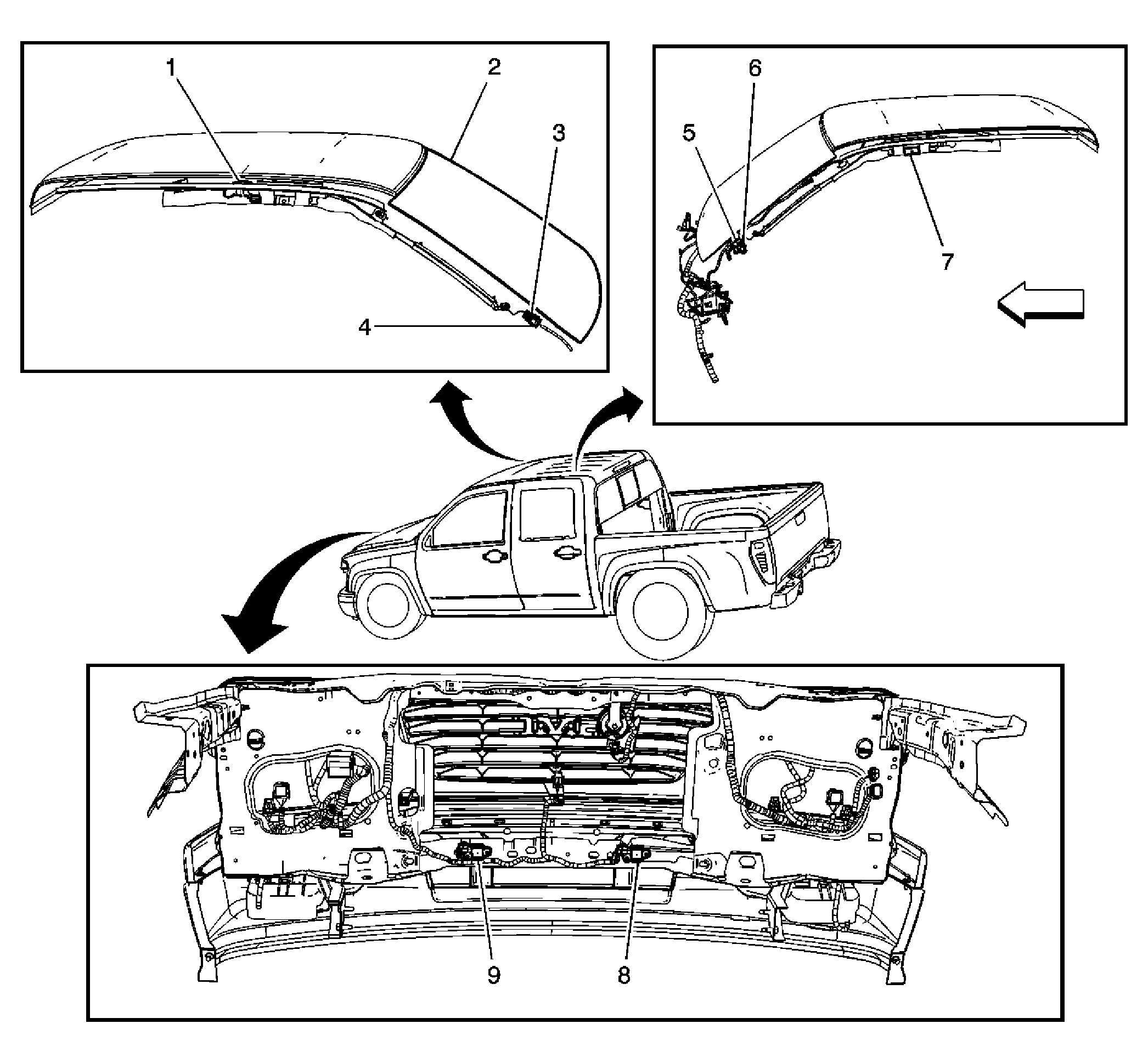

Fig 1: SIR Components View (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right (ASF)
2	Windshield
3	Inflatable Restraint Roof Rail Module - Right (ASF) Connector
4	Inflatable Restraint Roof Rail Module - Right (ASF) Connector Body Harness Side
5	Inflatable Restraint Roof Rail Module - Left (ASF) Connector Body Harness Side
6	Inflatable Restraint Roof Rail Module - Left (ASF) Connector
7	Inflatable Restraint Roof Rail Module - Left (ASF)
8	Inflatable Restraint Front End Sensor - Left
9	Inflatable Restraint Front End Sensor - Right

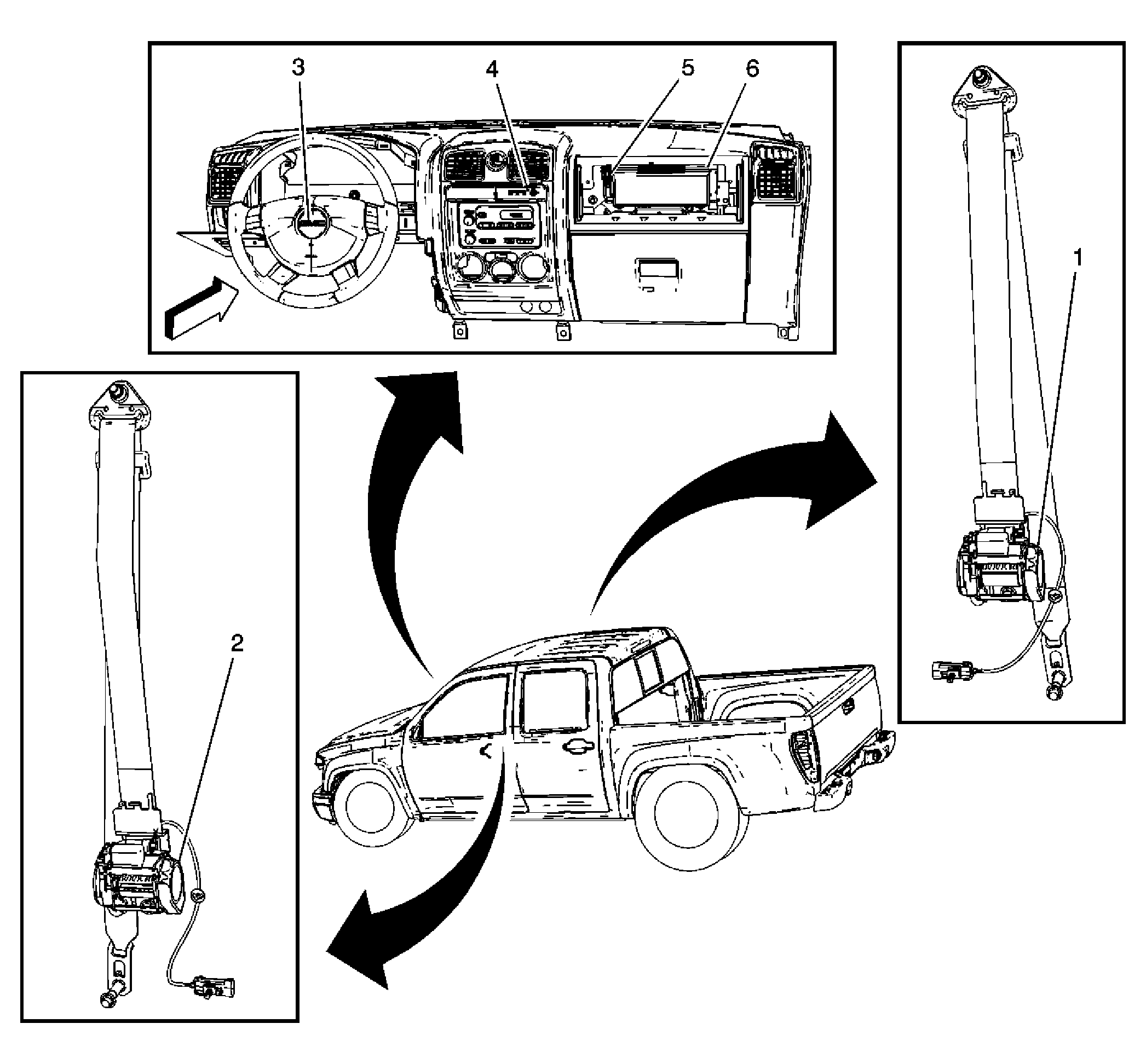

Fig 2: SIR Components View (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - RF
2	Seat Belt Pretensioner - LF
3	Inflatable Restraint Steering Wheel Module
4	Accessory Switch
5	Inflatable Restraint I/P Module Connector
6	Inflatable Restraint I/P Module

Fig 3: SIR Components View (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Door
2	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3	Body Harness
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	Driver Door
6	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

Fig 4: Left Rear Door Component View (EXT Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - LR Door
2	Seat Belt Pretensioner - LF
3	Seat Belt Pretensioner - LF Connector
4	C316
5	C311

Fig 5: Right Rear Door Component View (EXT Cab)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR Door
2	C312
3	C317
4	Seat Belt Pretensioner - RF Connector
5	Seat Belt Pretensioner - RF
