Power Seat Systems Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Motors - Driver
2	Seat Adjuster Switch - Driver C1
3	Seat Adjuster Switch - Driver C2
4	Seat Motors - Driver Connector
5	Lumbar Pump Motor - Driver
6	C307
7	C314
8	Heater Element Seat Back - Driver
9	C319
10	Recliner Motor
11	Heated Seat Module - Driver
12	Seat Belt Switch - Driver
13	Seat Position Switch - Left

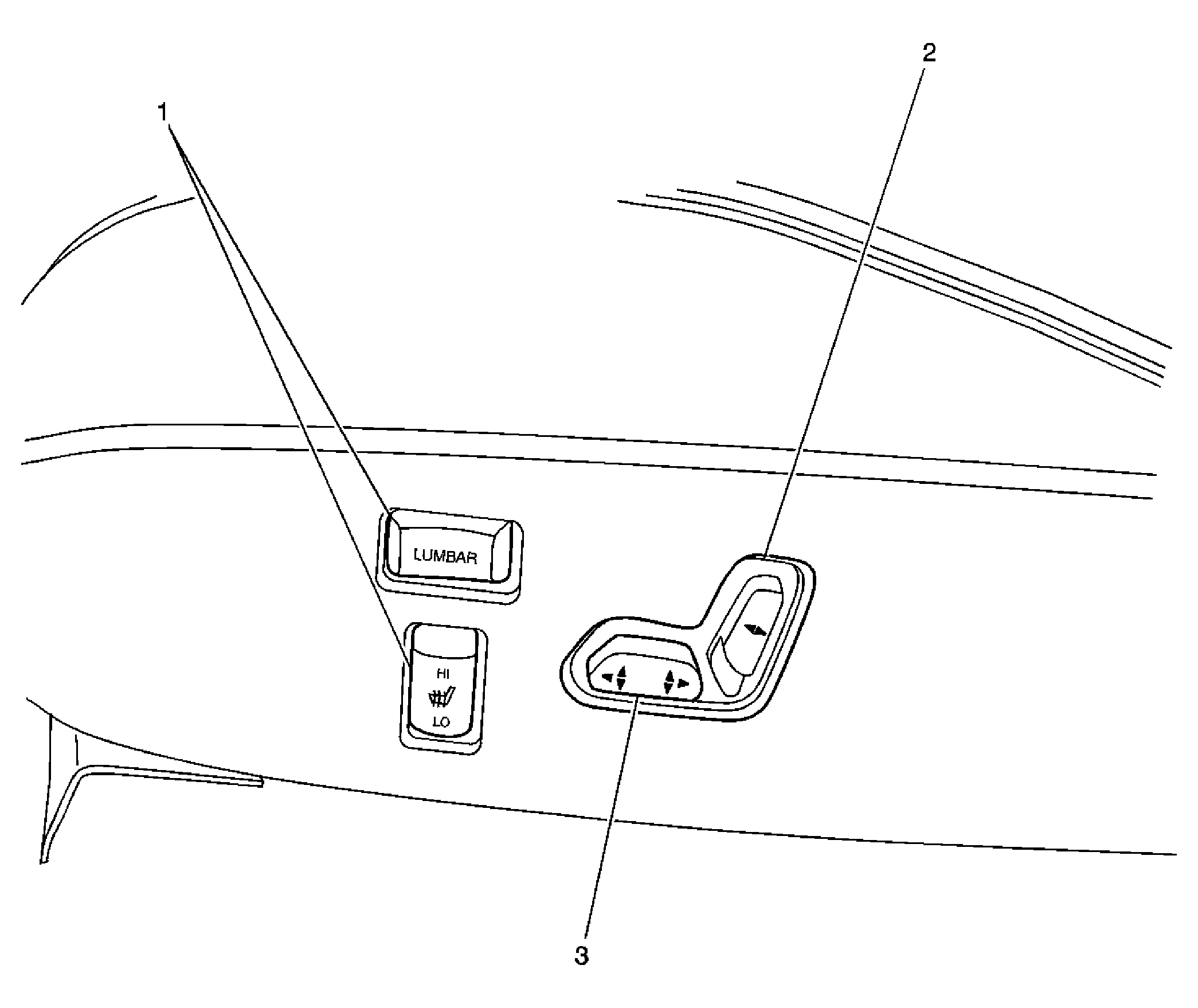

Fig 2: Driver Seat Switches Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Adjuster/Heater Switch - Driver
2	Seat Recliner Switch - Driver
3	Seat Adjuster Switch - Driver

Fig 3: Passenger Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Motors - Passenger
2	Seat Position Switch - Right
3	Seat Belt Switch - Passenger
4	Heated Seat Module - Passenger
5	Lumbar Pump Motor - Passenger
6	Heater Element Seat Back Passenger
7	Seat Motors - Passenger Connector
8	C318
9	C313
10	C315

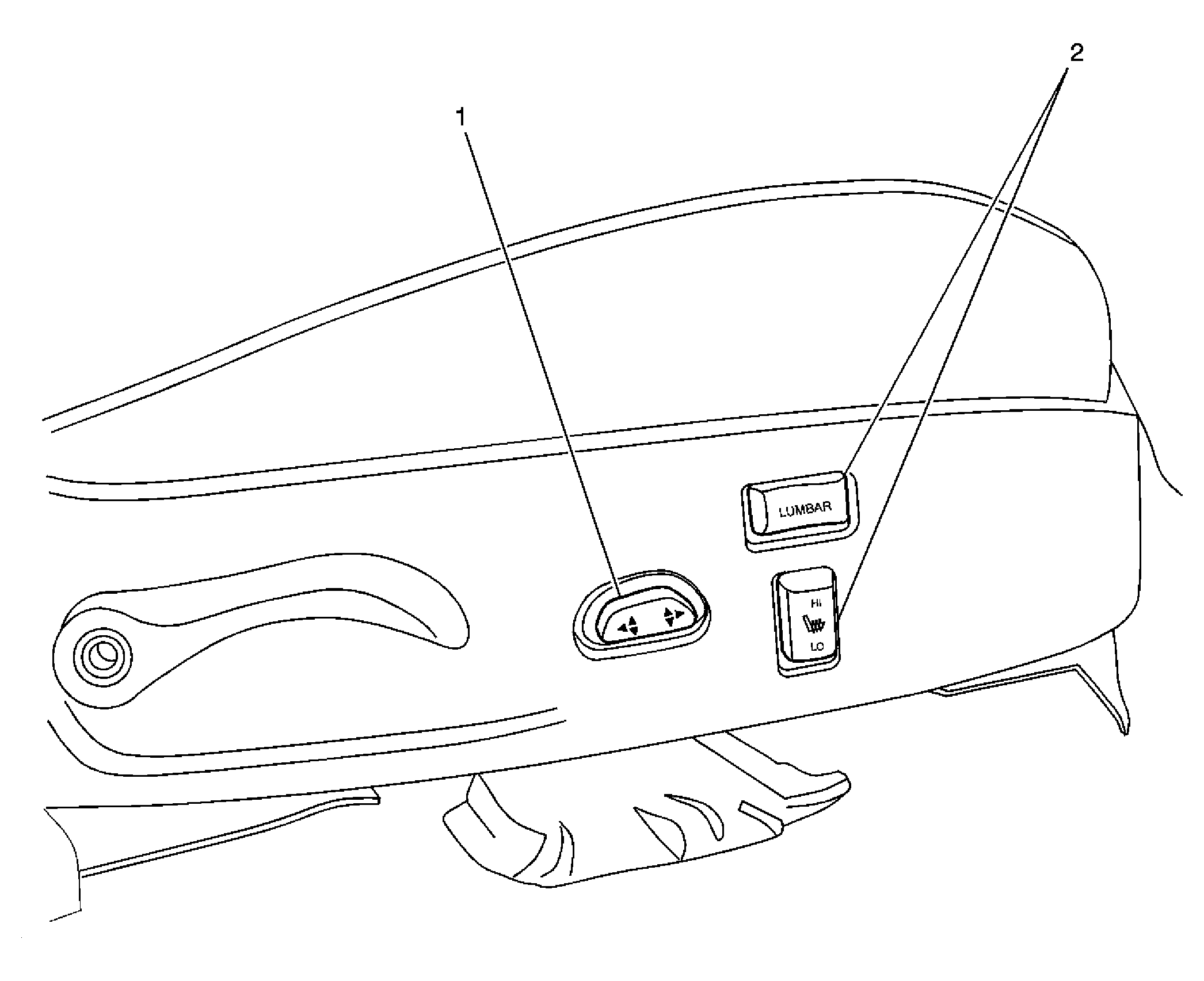

Fig 4: Passenger Seat Switches Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Passenger
2	Lumbar Adjuster/Heater Switch - Passenger
