Installation Procedure

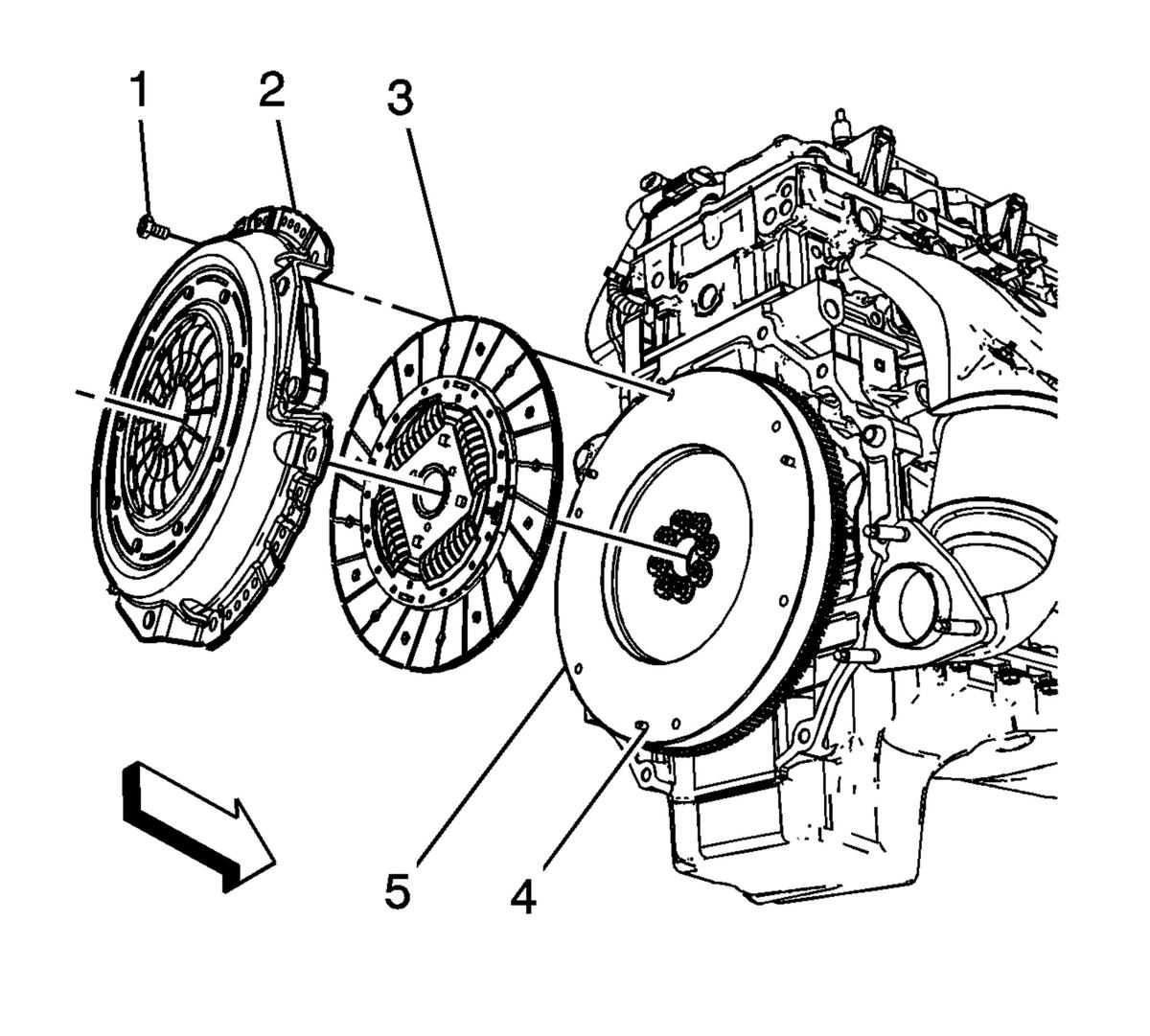

Fig 1: Exploded View Of Clutch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the clutch pressure plate (2) and driven plate (3) to the dowel pins (4) on the flywheel (5).
Install the clutch pressure plate bolts (1) finger tight.
Use the Snap-On A145 Clutch Aligner Set, or equivalent, to align the clutch driven plate (3) to the clutch pilot bearing.

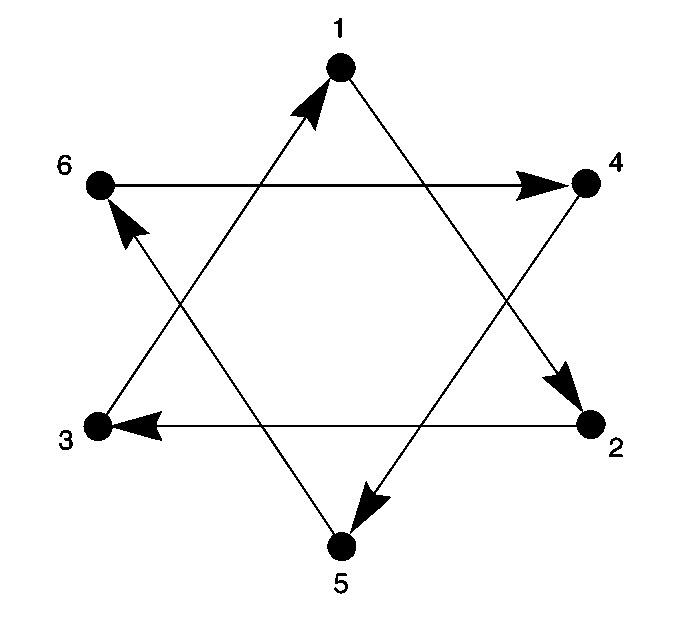

Fig 2: Clutch Pressure Plate Bolts Tightening Sequence (4.8L, 5.3L, and 6.0L Engines)

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the NEW clutch pressure plate bolts in the sequence shown.
Tighten:
1. Tighten the clutch pressure plate bolts in sequence to 20 N.m (15 lb ft).
2. Use the J 36660-A in order to tighten the clutch pressure plate bolts in sequence an additional 45 degrees.
Install the transmission. Refer to Transmission Replacement in Manual Transmission - Aisin AR5.
