Rear Object Sensor Control Module X2 (UD7)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

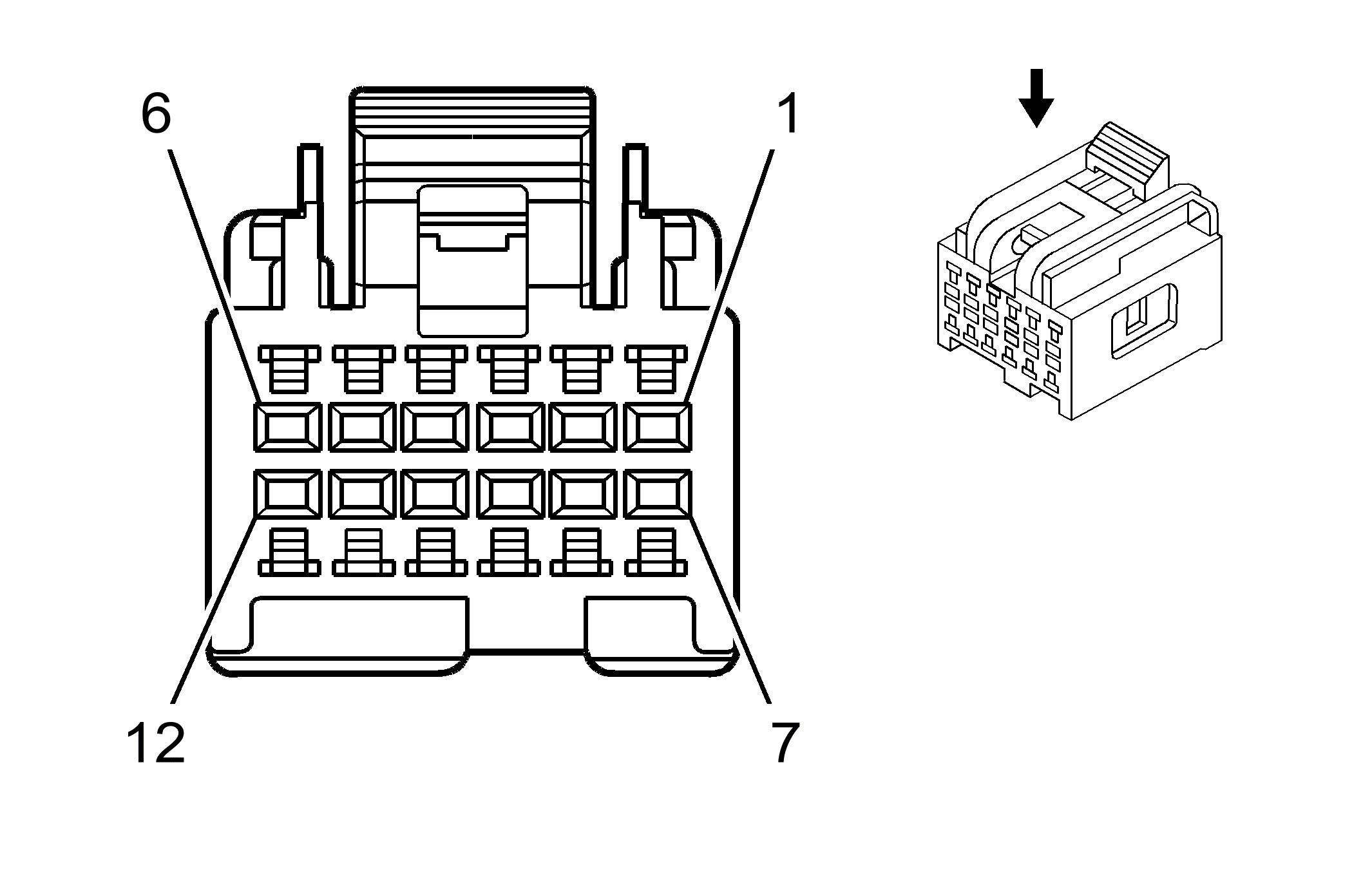

Fig 1: Rear Object Sensor Control Module X2 (UD7)
GM1538770Courtesy of GENERAL MOTORS CORP.
Rear Object Sensor Control Module X2 (UD7)

Pin Wire Circuit Function
1 0.35 RD/WH 840 Battery Positive Voltage
2 - - Not Used
3 0.35 BN 5852 Rear Park Assist LED Disable Signal
4-5 - - Not Used
6 0.35 D-GN 5060 Low Speed GMLAN Serial Data
7 0.35 BK/WH 2751 Ground
8 0.35 GY 2555 Rear Park Assist Disable Signal
9-12 - - Not Used
Connector Part Information
  • Harness: Body
  • OEM: 15477027
  • Service: 88988229
  • Description: 12-Way F Micro HVT (BK)
Terminal Part Information
  • Terminal/Tray: 15445905/23
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 12180559/J-35616-16 (L-GN)
