Rearview Camera Image Display Module X2 (UVC)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

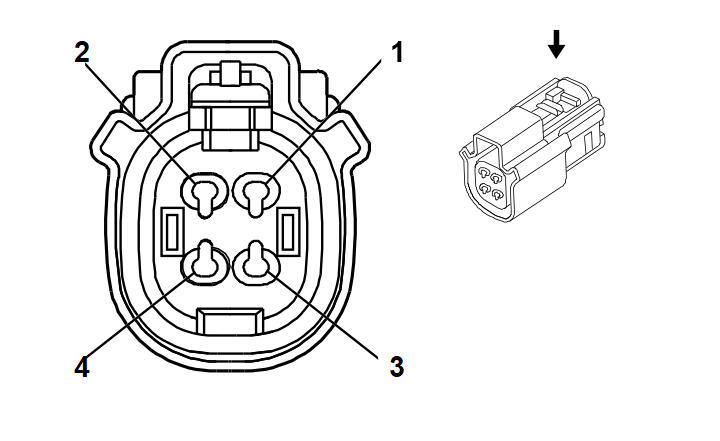

Fig 1: Rearview Camera Image Display Module X2 (UVC)
GM1960031Courtesy of GENERAL MOTORS CORP.
Rearview Camera Image Display Module X2 (UVC)

Pin Wire Circuit Function
1 0.5 WH 7641 Camera Video Signal (+)
2 0.5 GY 6799 Drain Wire
3 - - Not Available
4 0.5 PK 239 Ignition Voltage
Connector Part Information
  • Harness: Chassis
  • OEM: 13714336
  • Service: Pending
  • Description: 4-Way F MX 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 33012-3002/26
  • Core/Insulation Crimp: E/2
  • Release Tool/Test Probe: J-38125-217/J-35616-14 (GN)
