Map Light



Lighting Systems Connector End Views

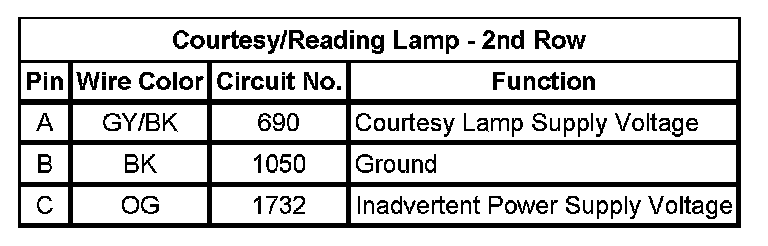

Courtesy/Reading Lamp - 2nd Row

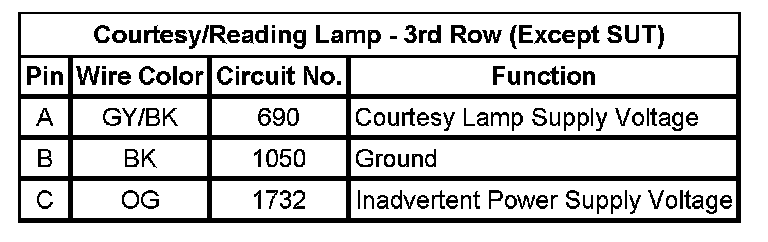

Courtesy/Reading Lamp - 3rd Row (Except SUT)














Courtesy/Reading Lamps - Left Front

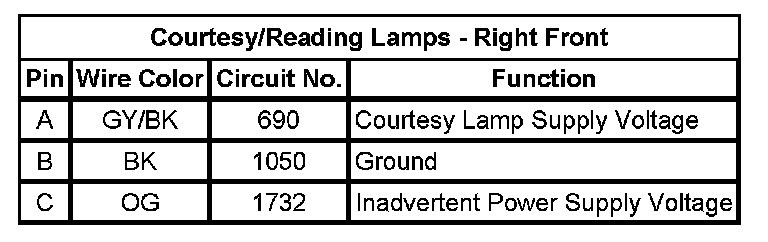

Courtesy/Reading Lamps - Right Front
