Lighting Systems Connector End Views



Lighting Systems Connector End Views

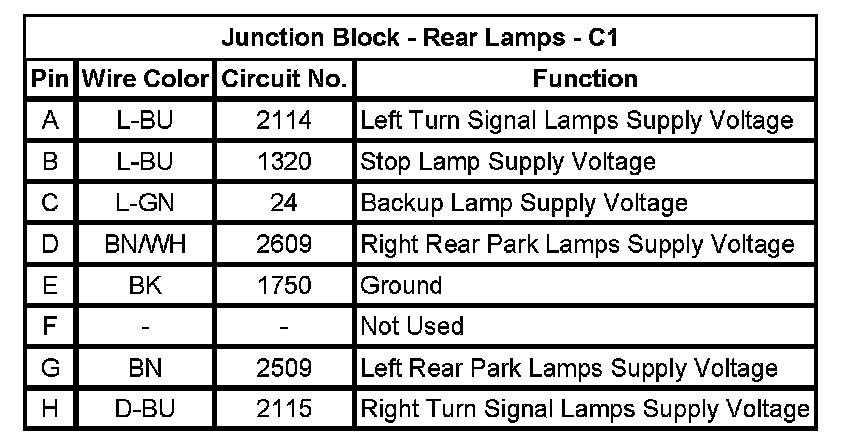

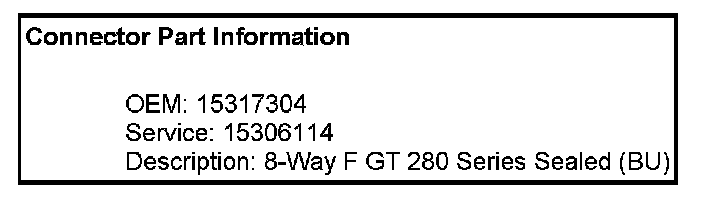

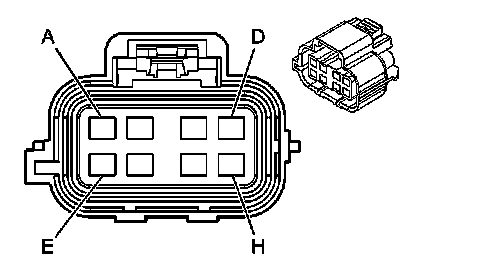

Junction Block - Rear Lamps - C1

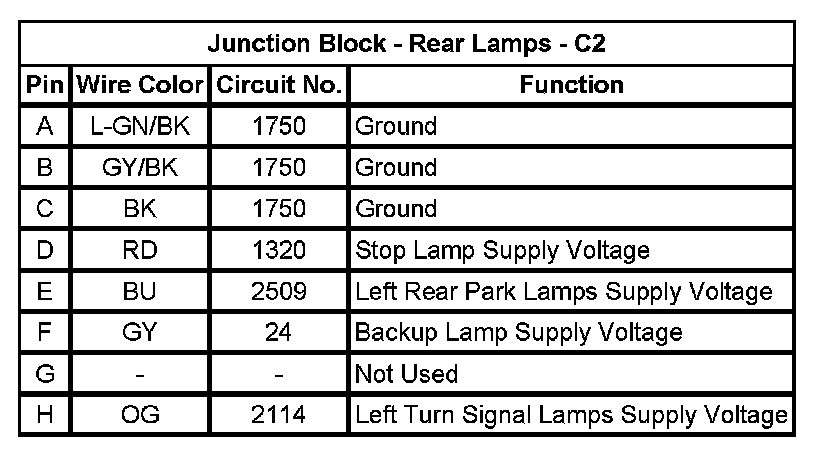

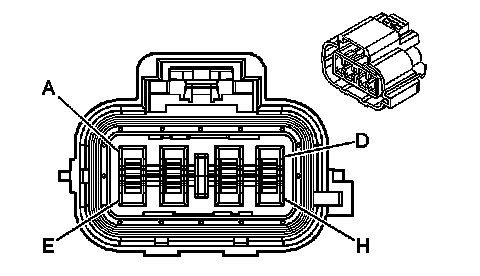

Junction Block - Rear Lamps - C2

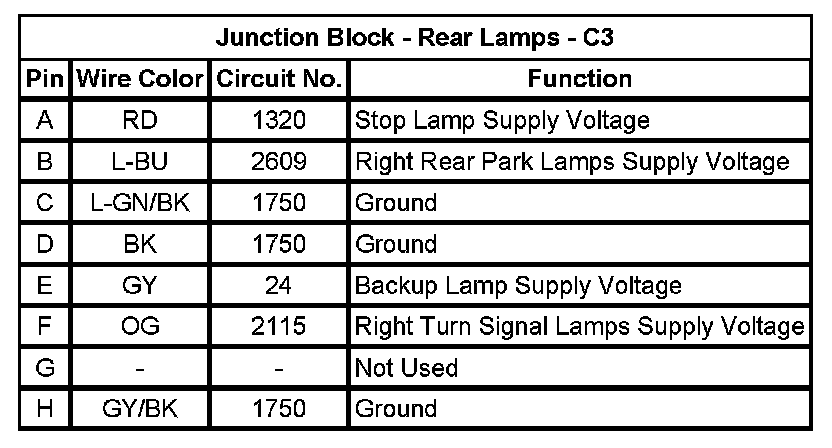

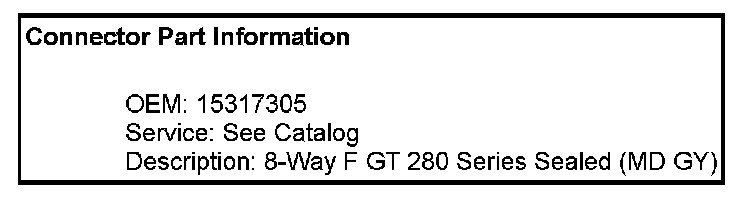

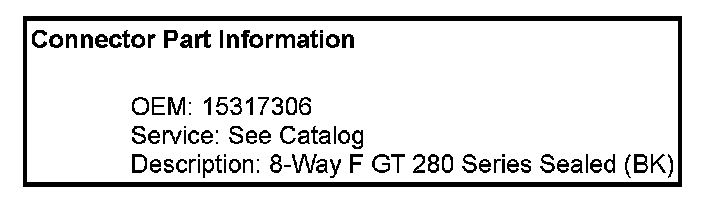

Junction Block - Rear Lamps - C3
