Overdrive Switch: Service and Repair

Tow/Haul Switch Replacement

Removal Procedure

1. Remove the instrument panel center trim panel.

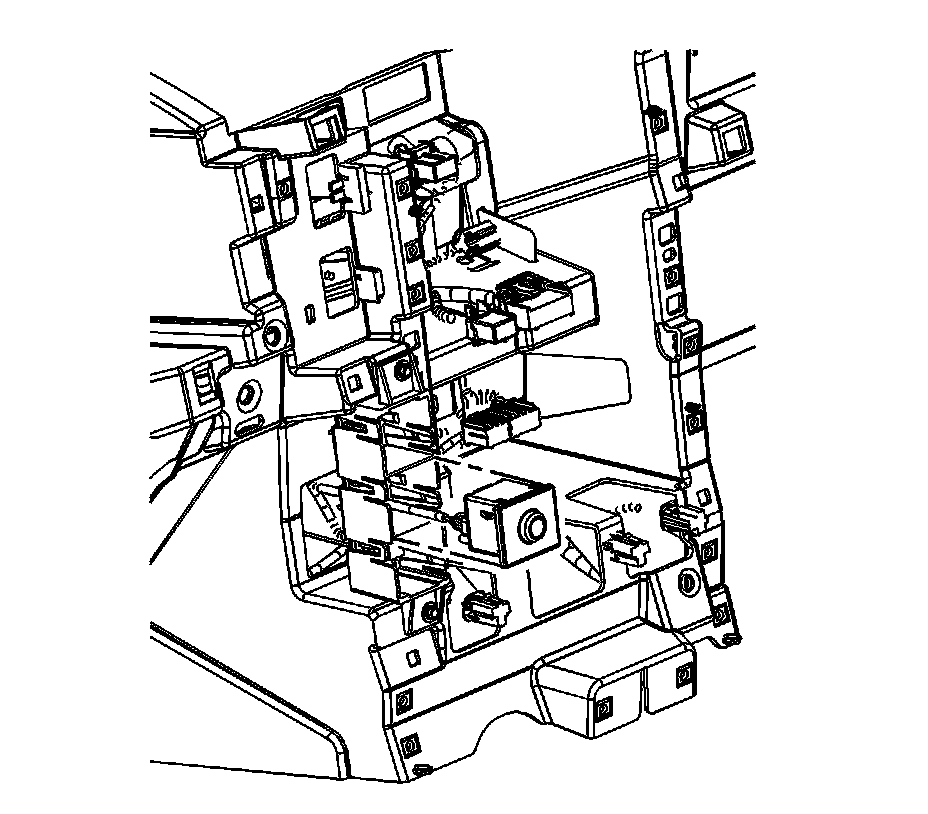

2. Remove the switch receptacle screws.




3. Pull the switch receptacle from the instrument panel and disconnect the electrical connectors from the switch.




4. Remove the switch from the receptacle.

Installation Procedure




1. Install the switch to the receptacle.




2. Connect the electrical connector to the switch. Install the switch receptacle to the instrument panel.





Notice: Fastener Notice.

3. Install the switch receptacle screws.

Tighten the screws to 12 N.m (106 lb in).

4. Install the instrument panel center trim panel.
