Installation Procedure

  1. Install the quarter window into the opening. Refer to Adhesive Installation of Stationary Windows .

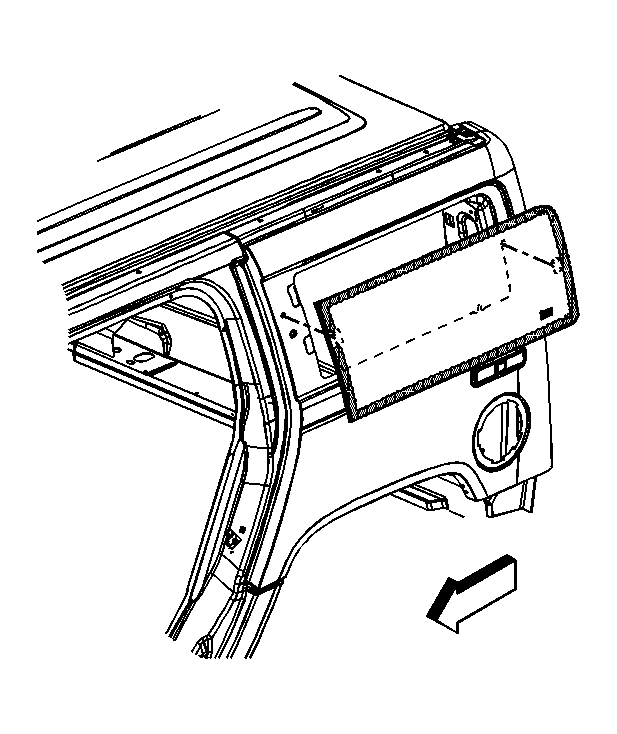

    2. Fig 1: Identifying Quarter Window (SUV Body Side Quarter Window)
    GM869336Courtesy of GENERAL MOTORS CORP.
  2. Insure the pinchweld is primed properly.
  3. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
