Crankshaft Position (CKP) Sensor

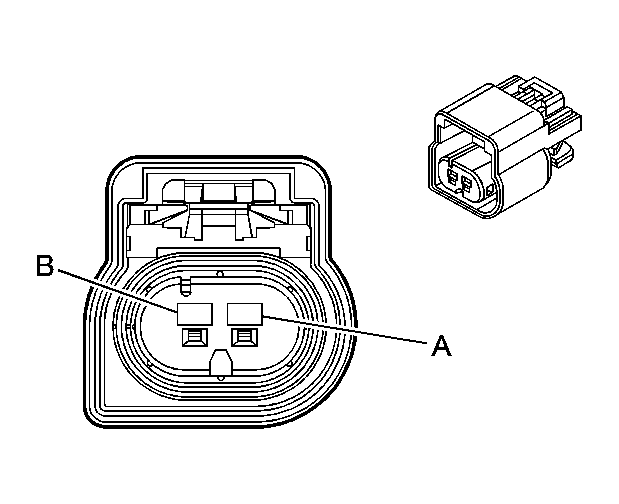

Fig 1: Crankshaft Position (CKP) Sensor Connector End Views
GM1335529Courtesy of GENERAL MOTORS CORP.
Crankshaft Position (CKP) Sensor Connector Parts Information

Connector Part Information
  • OEM: 15374223
  • Service: 15306580
  • Description: 2-Way F GT 150 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Crankshaft Position (CKP) Sensor Connector Terminal Identification

Pin Wire Color Circuit No. Function
A PU 574 Low Reference
B YE 573 CKP Sensor 1 Signal
