ABS Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

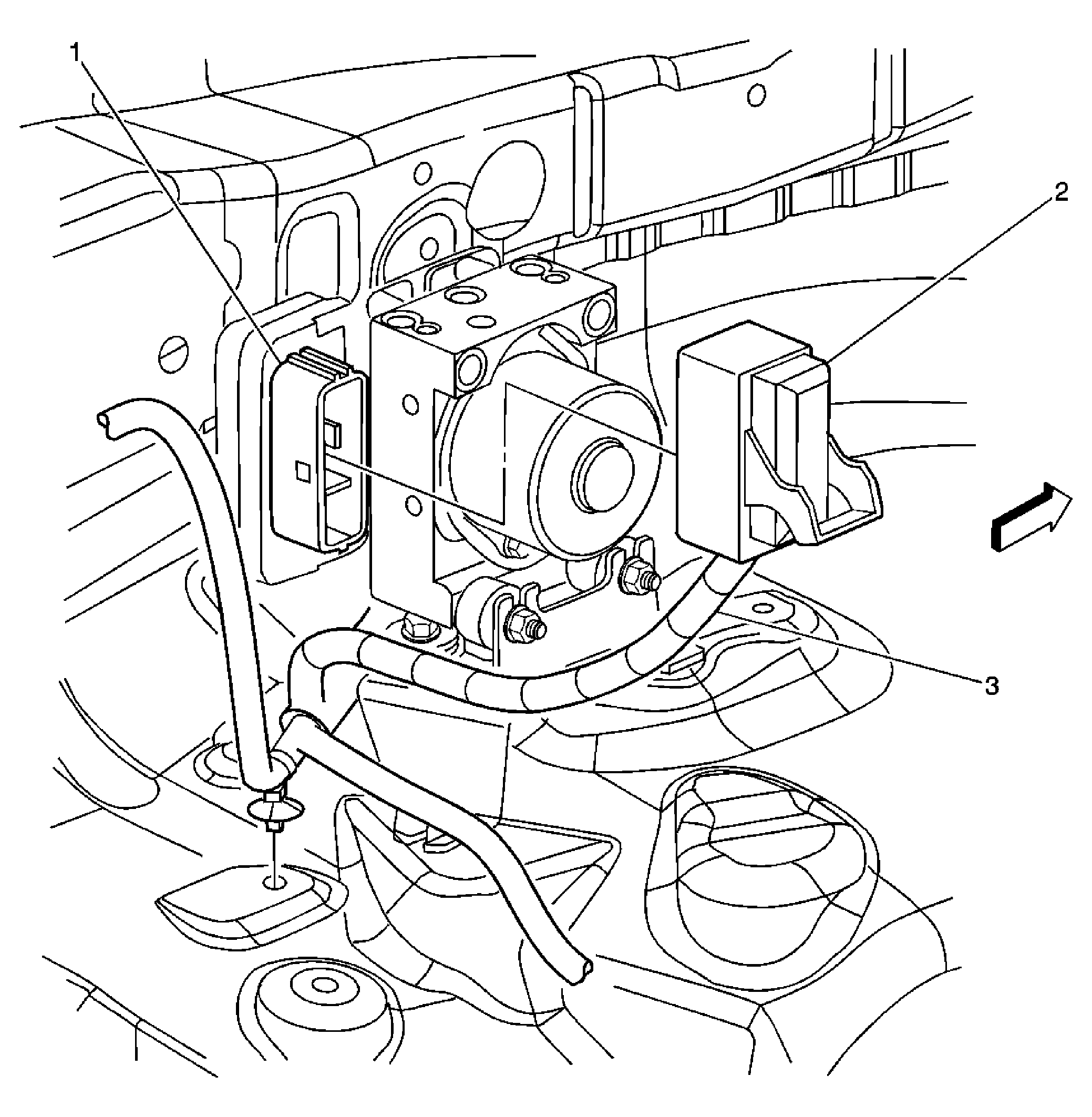

Fig 1: Electronic Brake Control Module (EBCM) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Brake Control Module (EBCM)
2	Electronic Brake Control Module (EBCM) Connector
3	Body Harness

Fig 2: Wheel Speed Sensor (WSS) Component View - RF & LF

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Wheel Speed Sensor (WSS) - LF

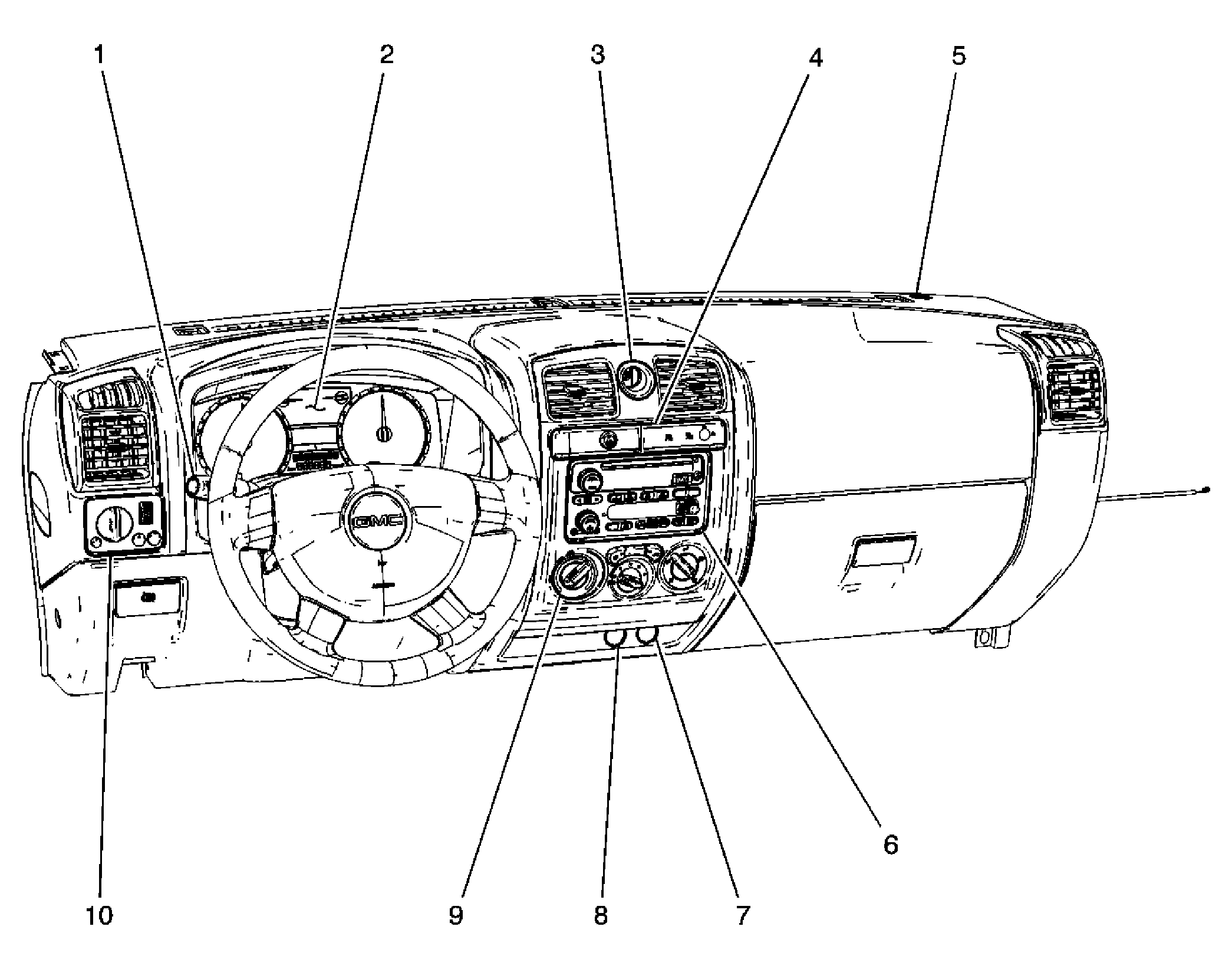

Fig 3: Center Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Ambient Light Sensor
6	Radio
7	Auxiliary Power Outlet 2
8	Auxiliary Power Outlet 1
9	HVAC Control Module
10	Headlamp and Panel Dimmer Switch

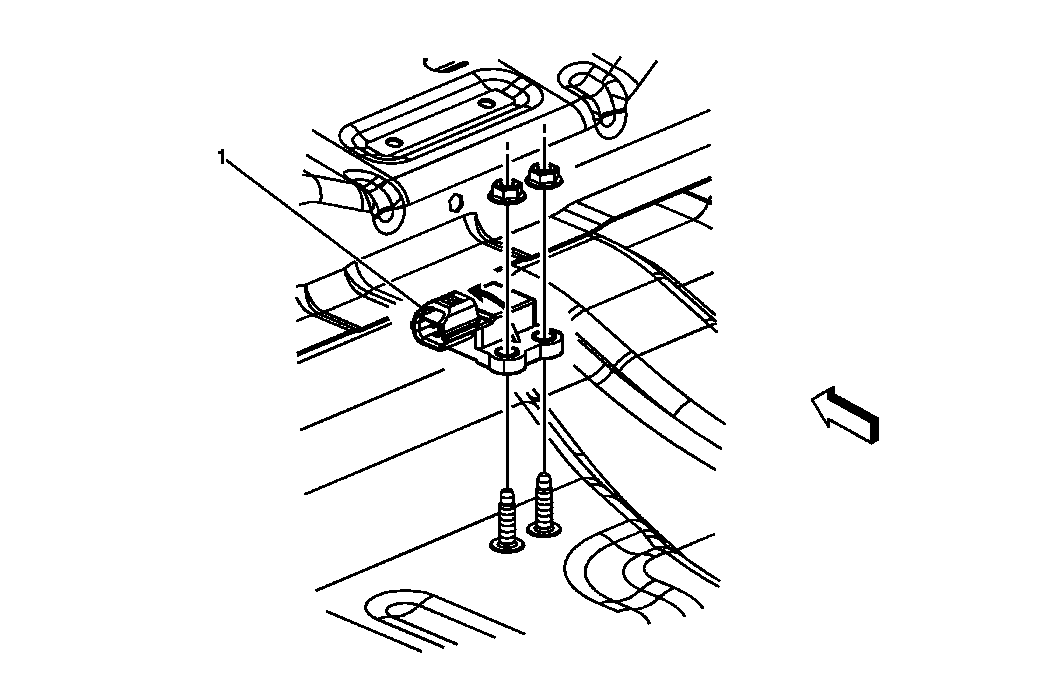

Fig 4: G Sensor Component View (4WD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G Sensor
