Power Roof Systems Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

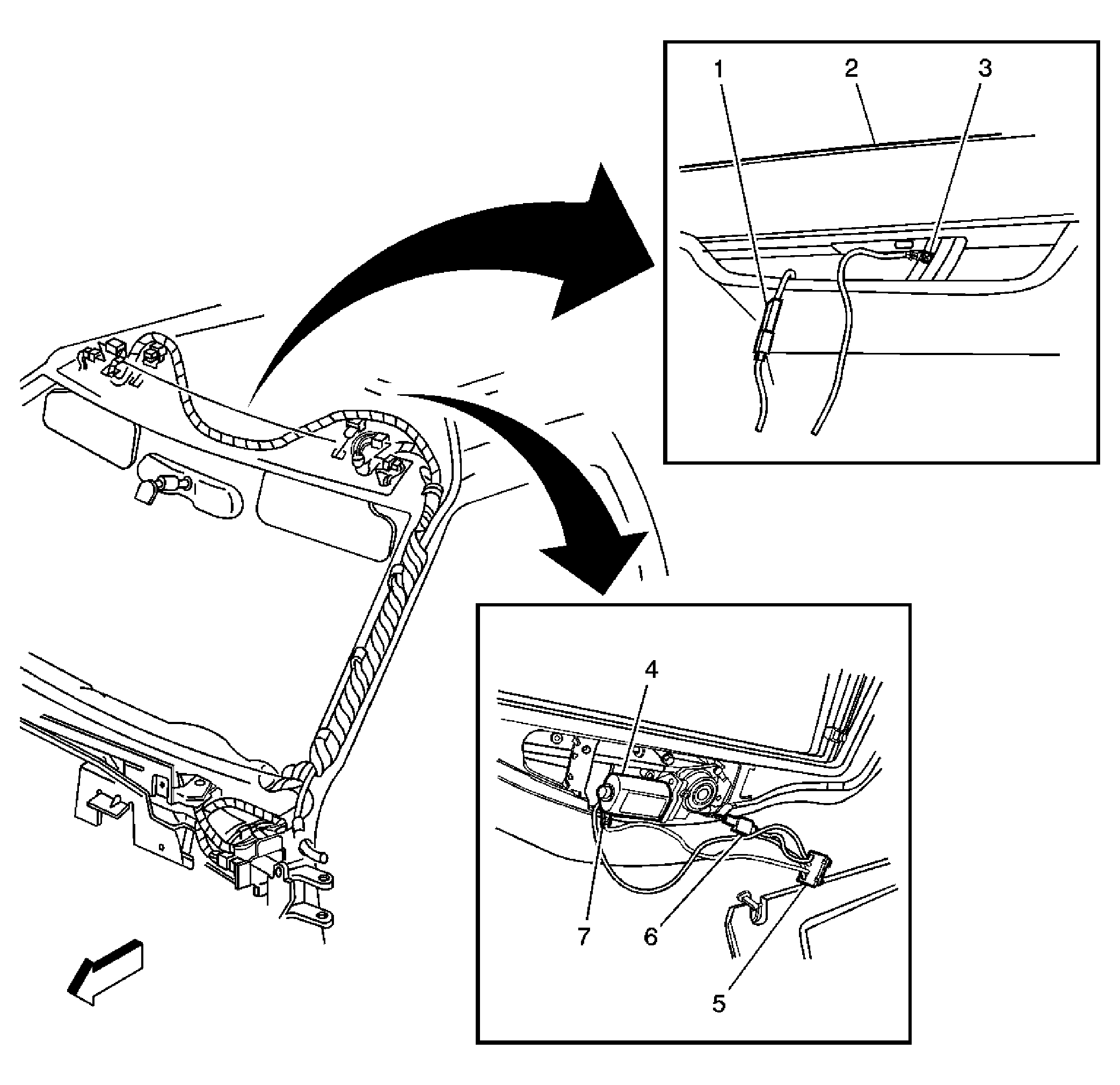

Fig 1: Sunroof Components View (ZRX, Extreme w/ CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch C2
2	Sunroof Opening
3	G300
4	Sunroof Motor
5	Sunroof Switch
6	Sunroof Switch C1
7	Sunroof Ground Lead (G300)
