Stationary Windows Component Views

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

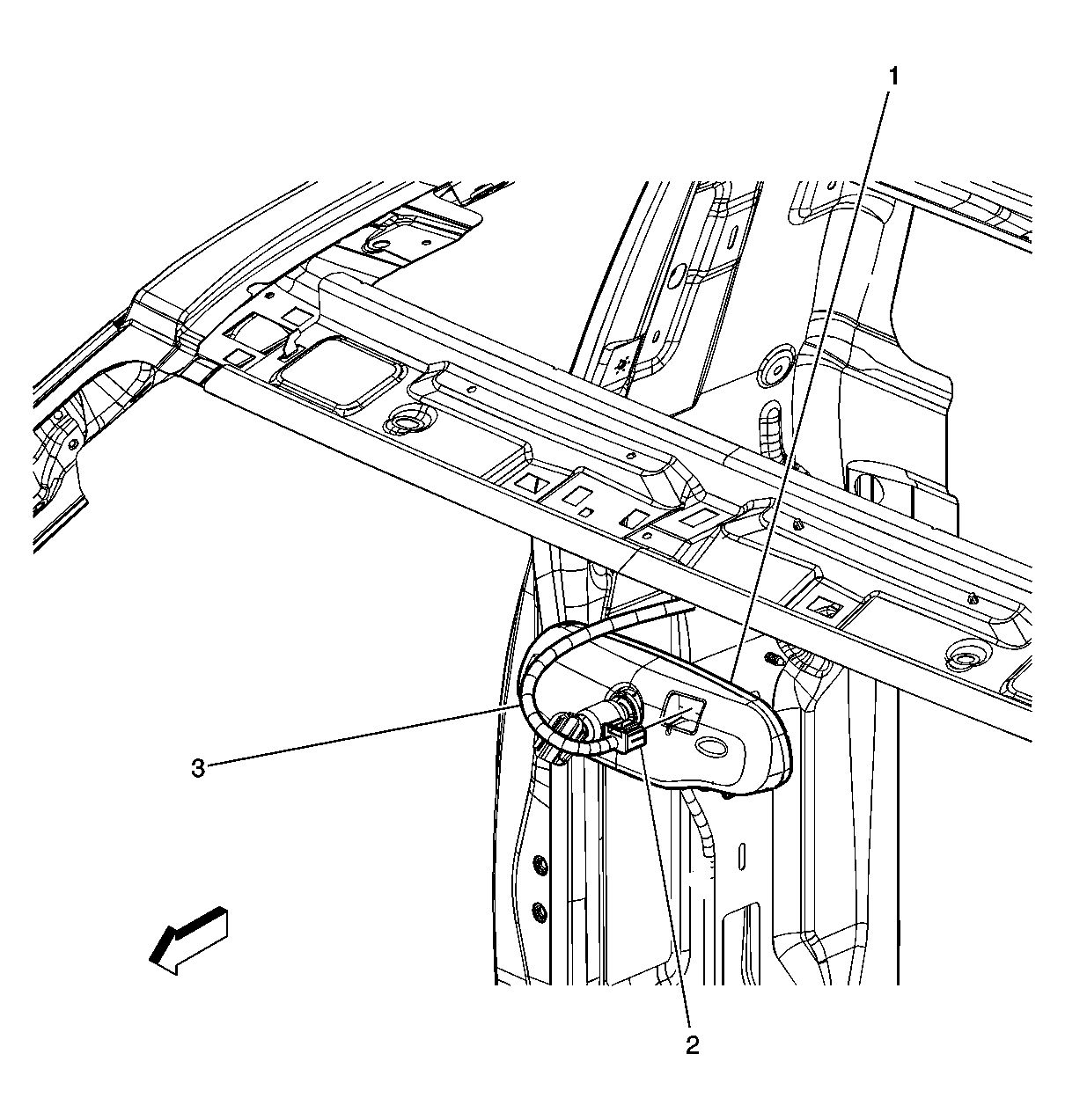

Fig 1: Inside Rearview Mirror Component View (UE1)
GM1364214Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
2 Inside Rearview Mirror Connector
3 Body Harness

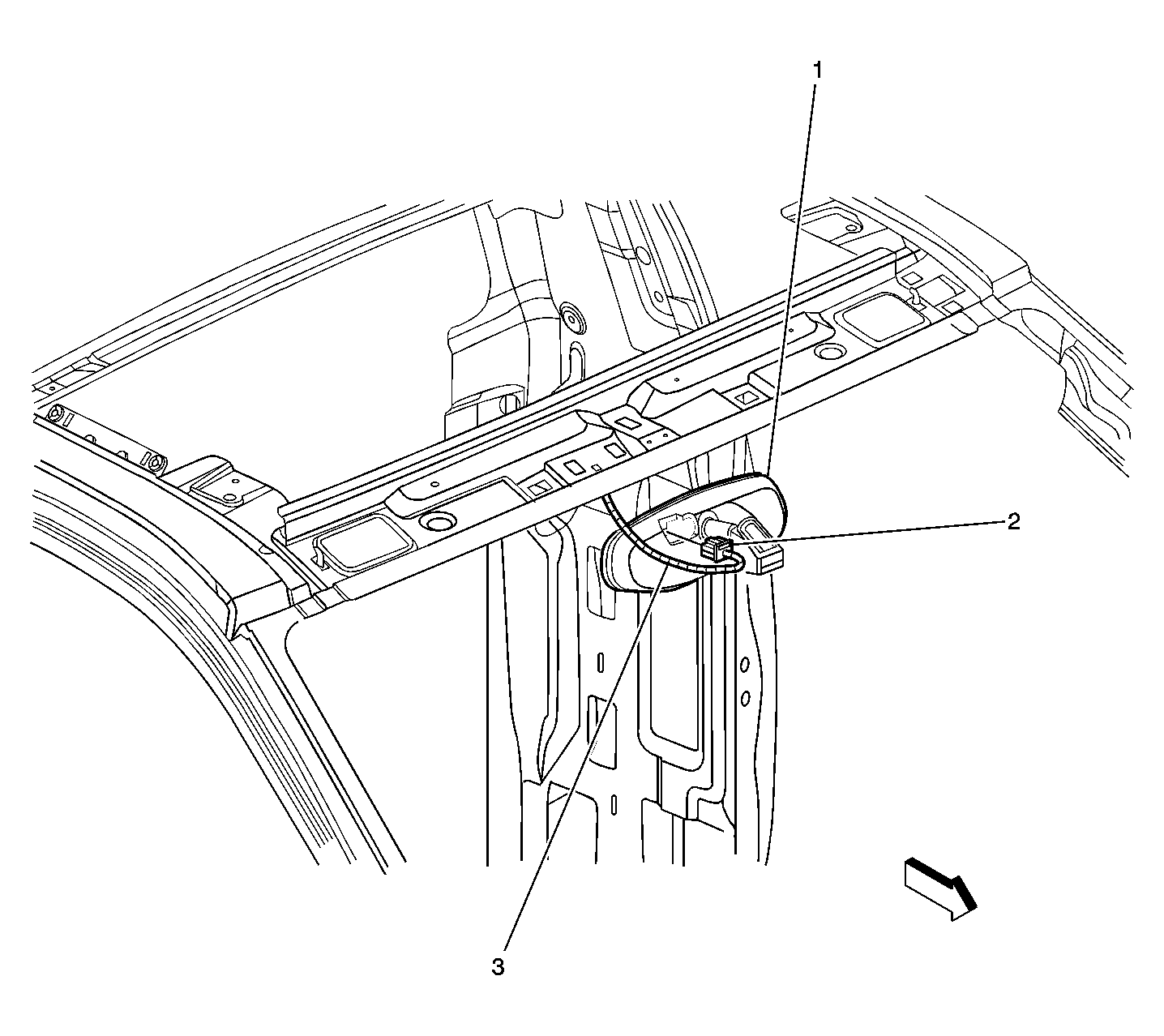

Fig 2: Inside Rearview Mirror Component View (w/o UE1)
GM1364216Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror
2 Inside Rearview Mirror Connector
3 Body Harness

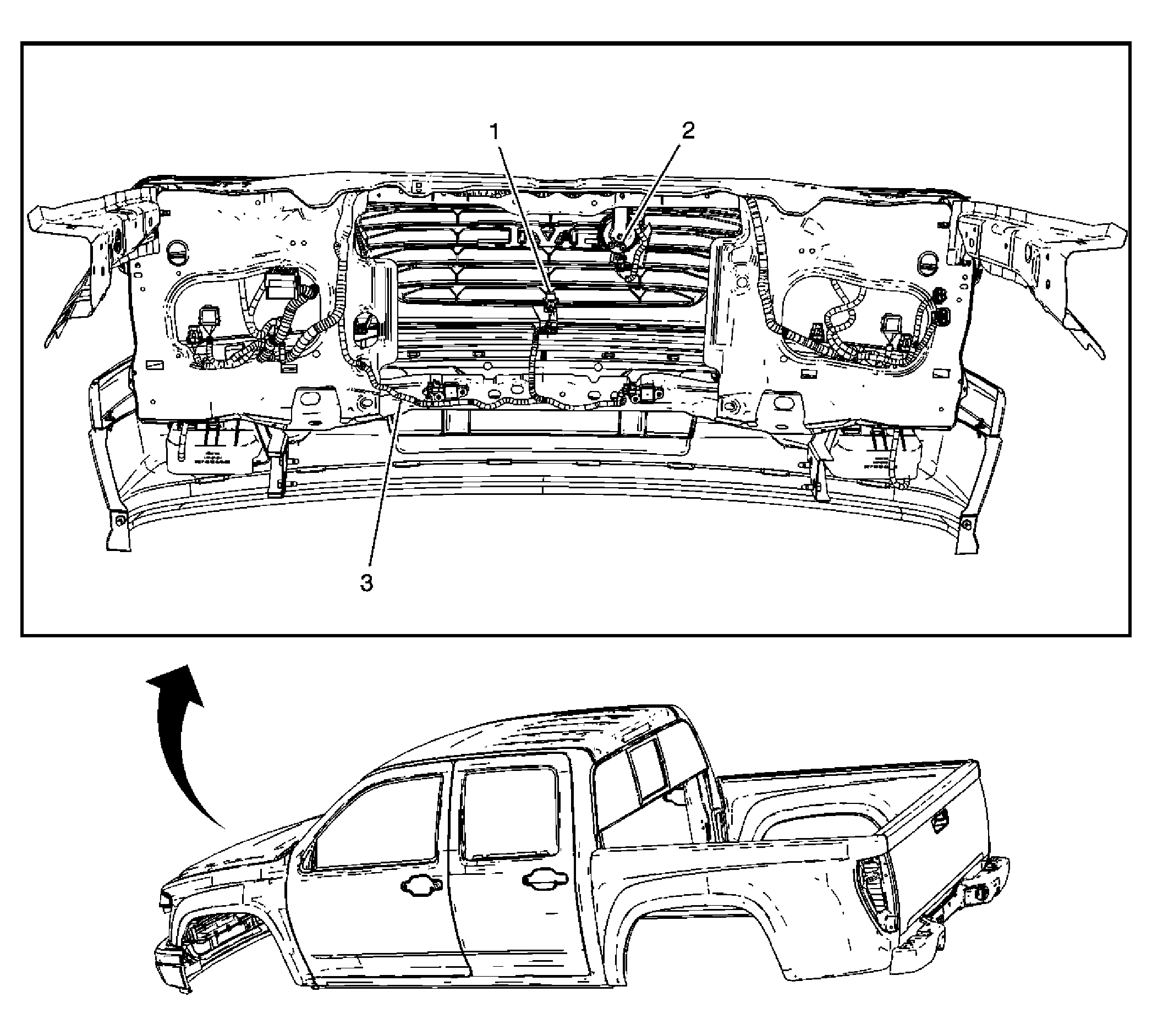

Fig 3: Front Of Engine Compartment Component View
GM1361878Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Air Temperature (AAT) Sensor (DF8)
2 Horn Assembly
3 Forward Lamp Harness
