Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Canyon and 2005 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

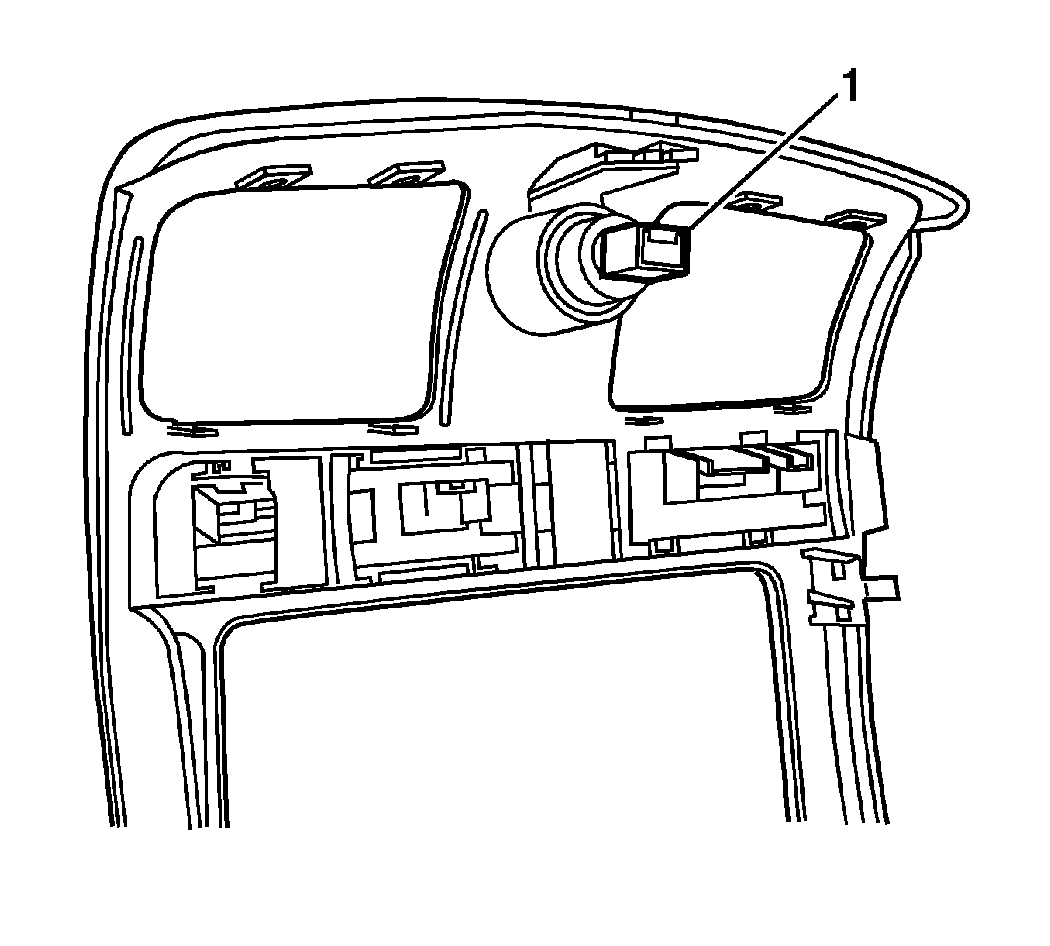

    Fig 1: View Of Hazard Warning Switch
    GM1276394Courtesy of GENERAL MOTORS CORP.
  1. Position the switch (1) to the trim plate.
  2. Ensure the switch key-way is indexed to the trim plate.
  3. Install the switch to the trim plate ensuring the tabs are fully seated.
    4. Fig 2: View Of Hazard Warning Switch Electrical Connector
    GM1276393Courtesy of GENERAL MOTORS CORP.
  4. Connect the hazard switch electrical connector.
  5. Install the I/P accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages, and Console.
