Impact Sensor



SIR Connector End Views

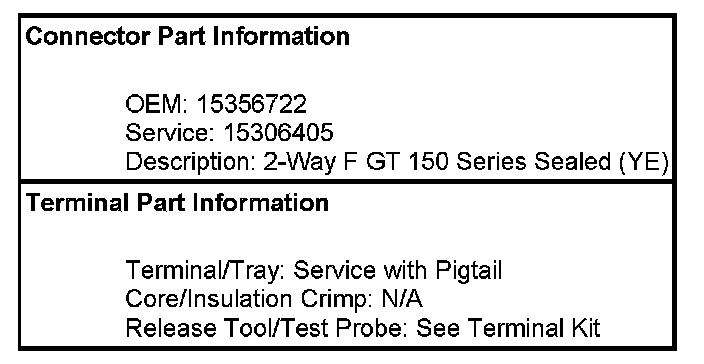

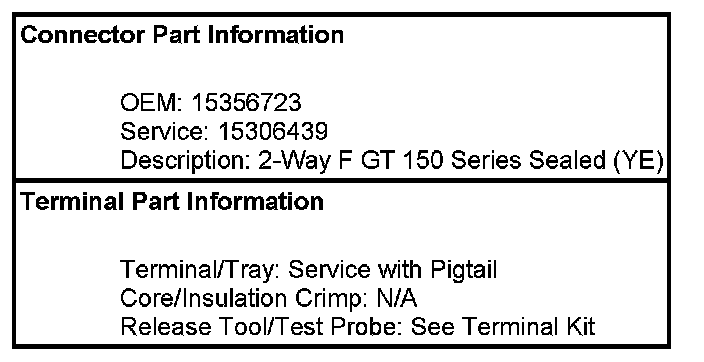

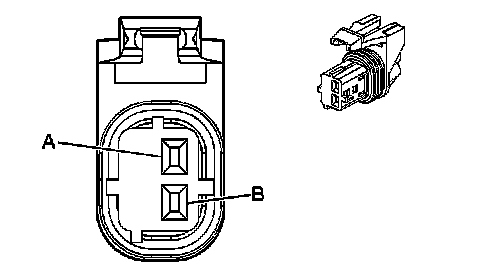

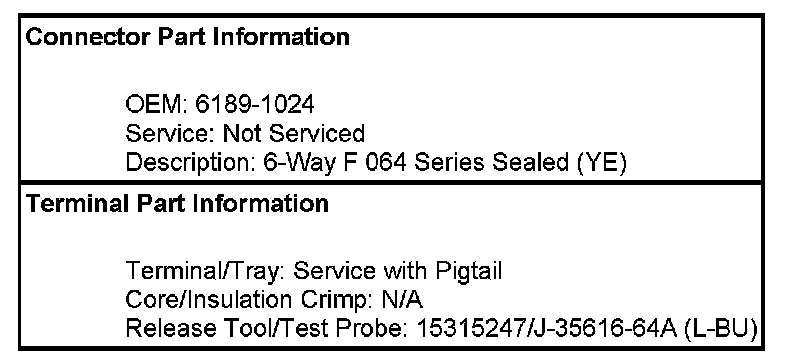

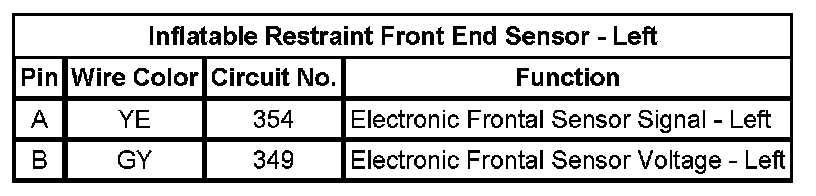

Inflatable Restraint Front End Sensor - Left

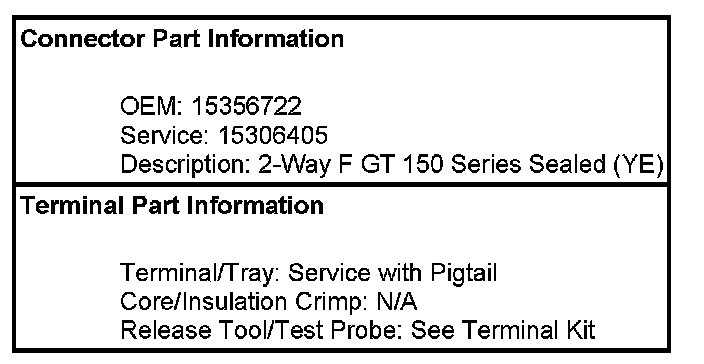

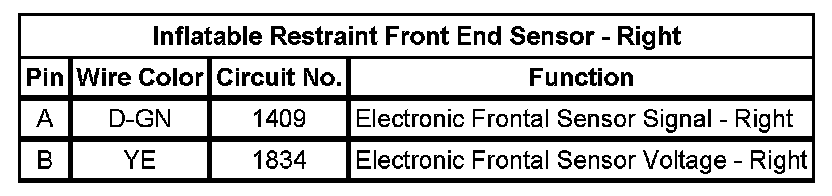

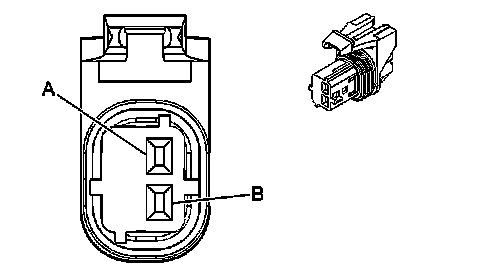

Inflatable Restraint Front End Sensor - Right

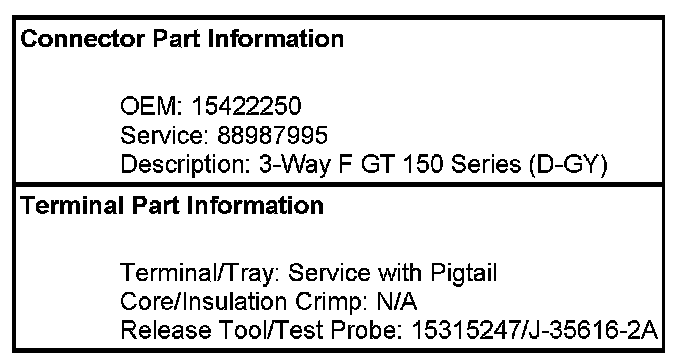

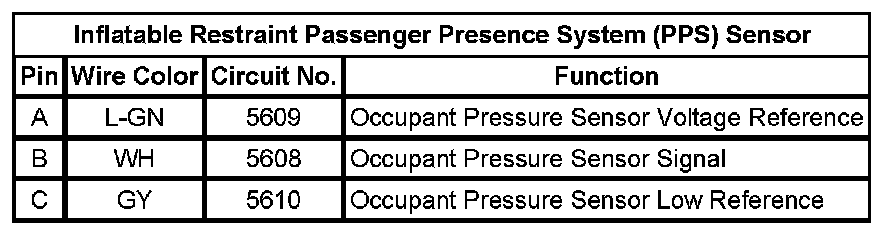

Inflatable Restraint Passenger Presence System (PPS) Sensor

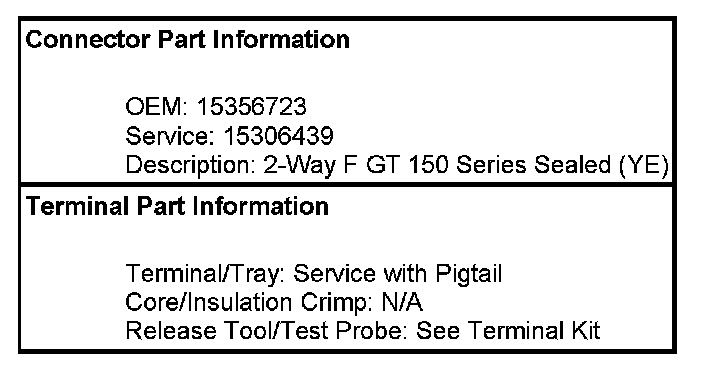

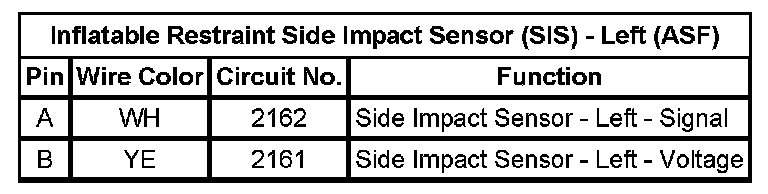

Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

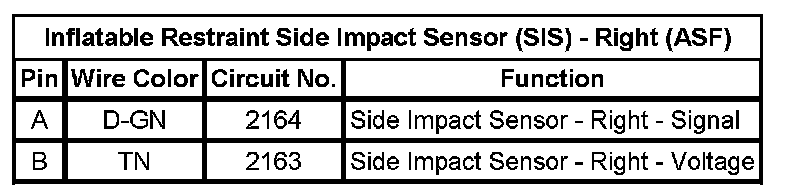

Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)

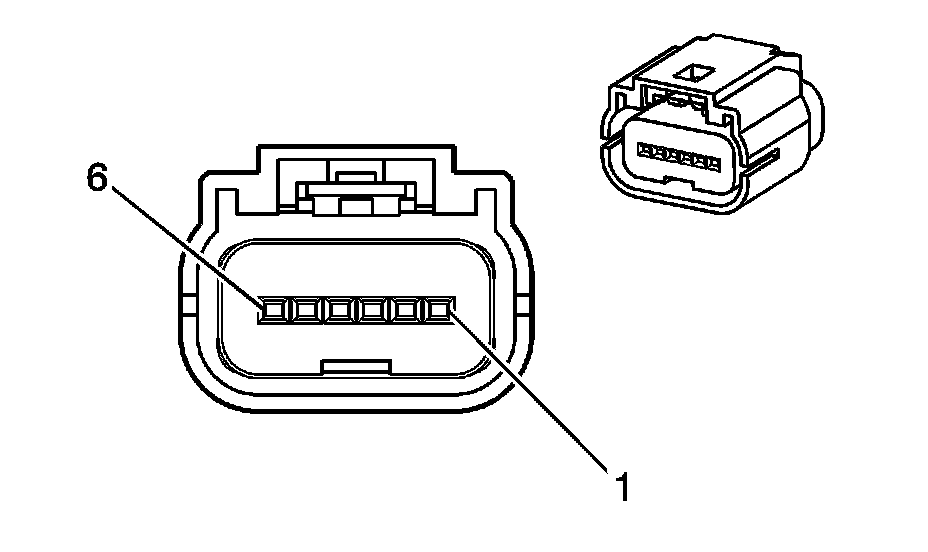

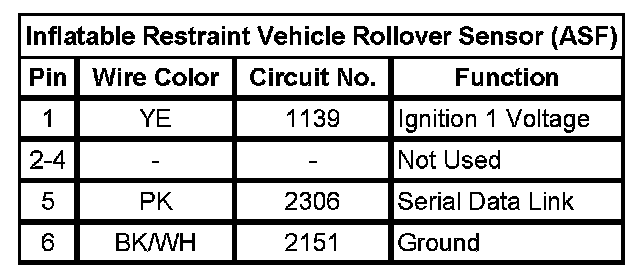

Inflatable Restraint Vehicle Rollover Sensor (ASF)
