Clearance Lamp



Lighting Systems Connector End Views

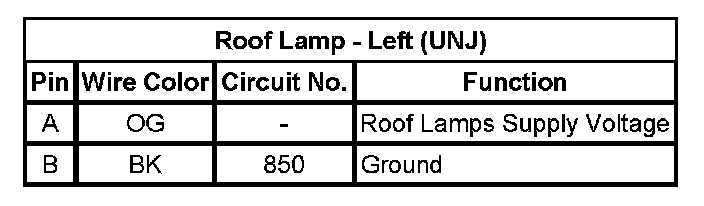

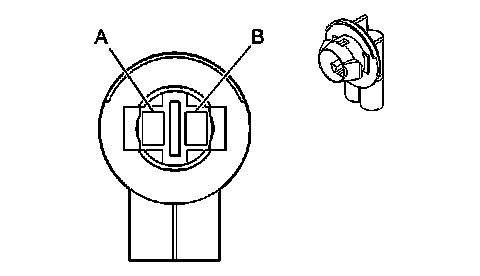

Roof Lamp - Left (UNJ)

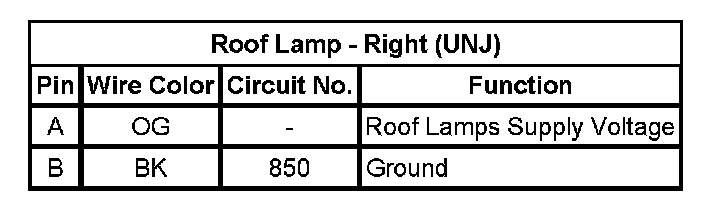

Roof Lamp - Right (UNJ)

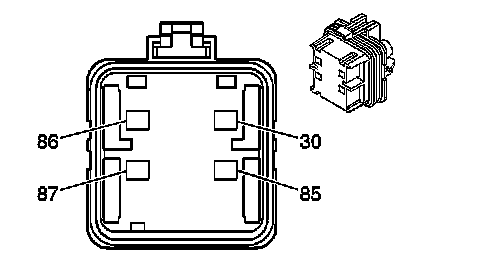

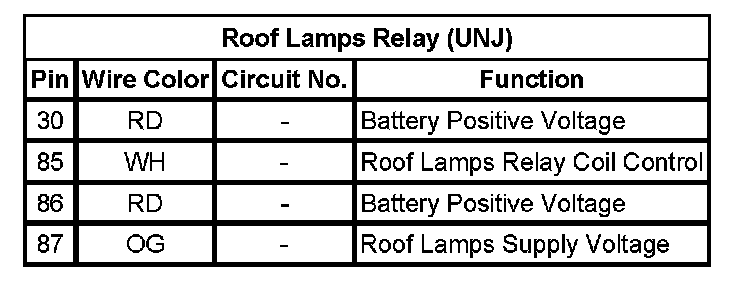

Roof Lamps Relay (UNJ)

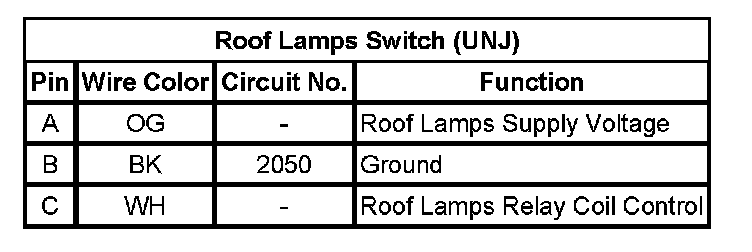

Roof Lamps Switch (UNJ)

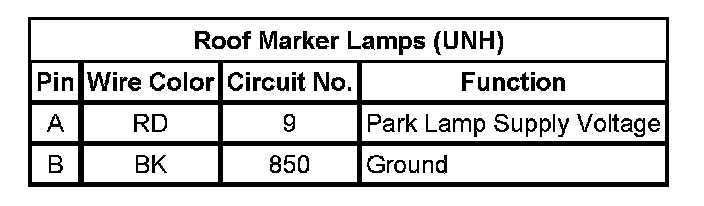

Roof Marker Lamps (UNH)
