Fog/Driving Lamp



Lighting Systems Connector End Views

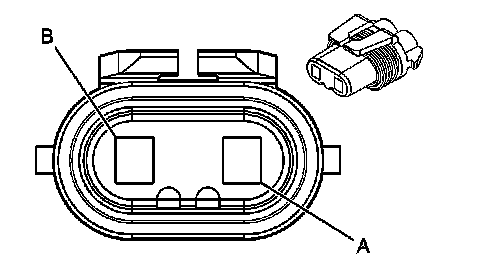

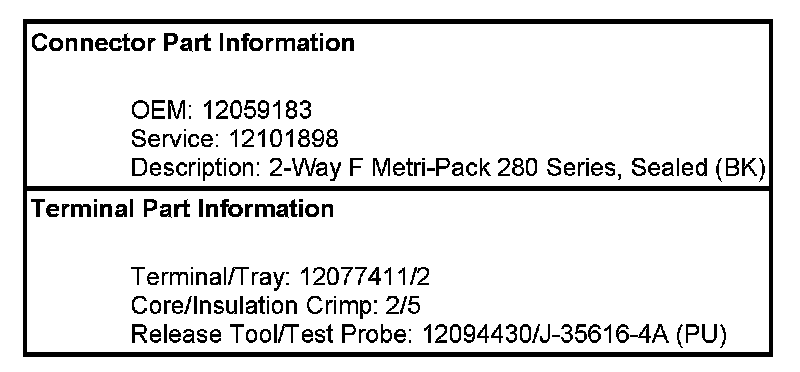

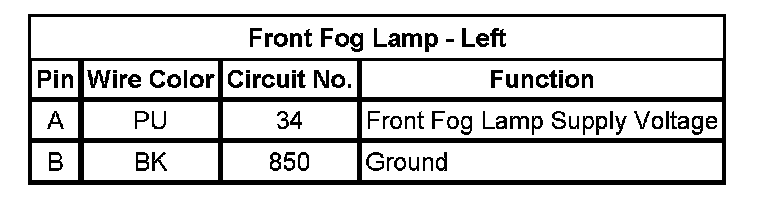

Front Fog Lamp - Left

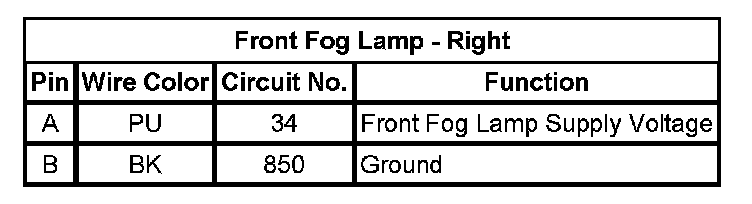

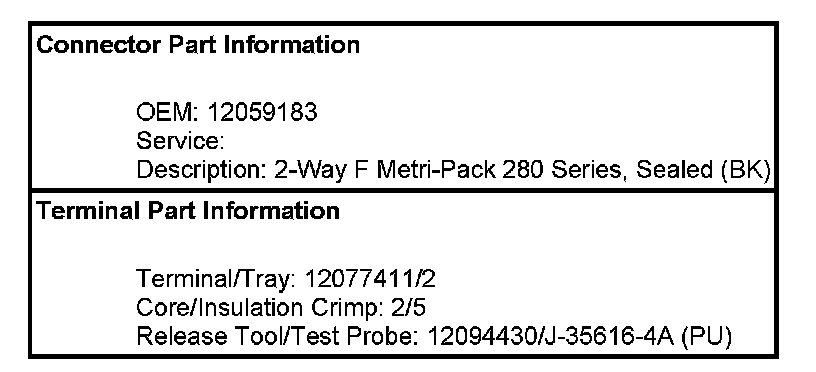

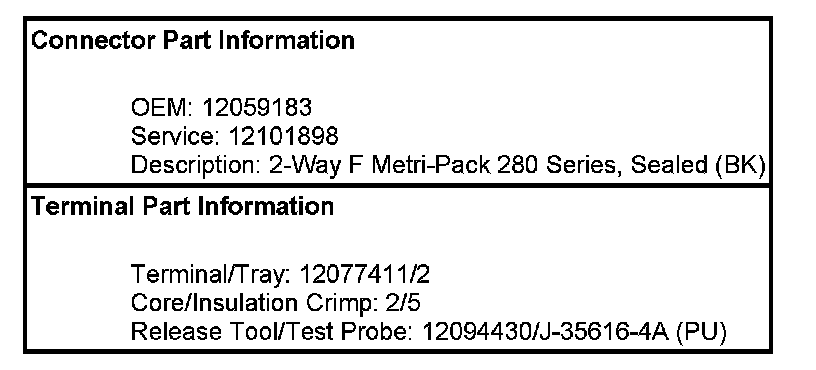

Front Fog Lamp - Right

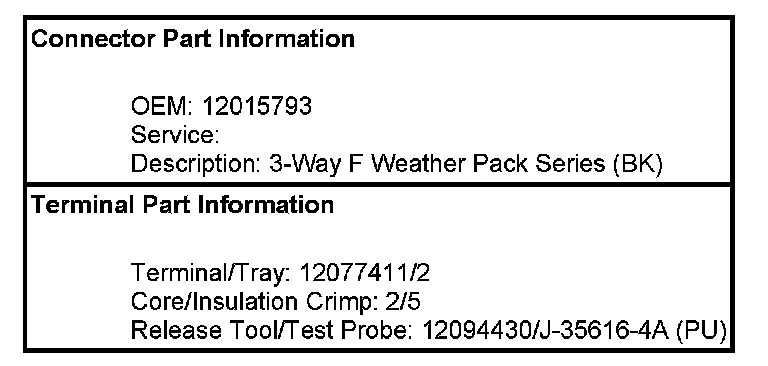

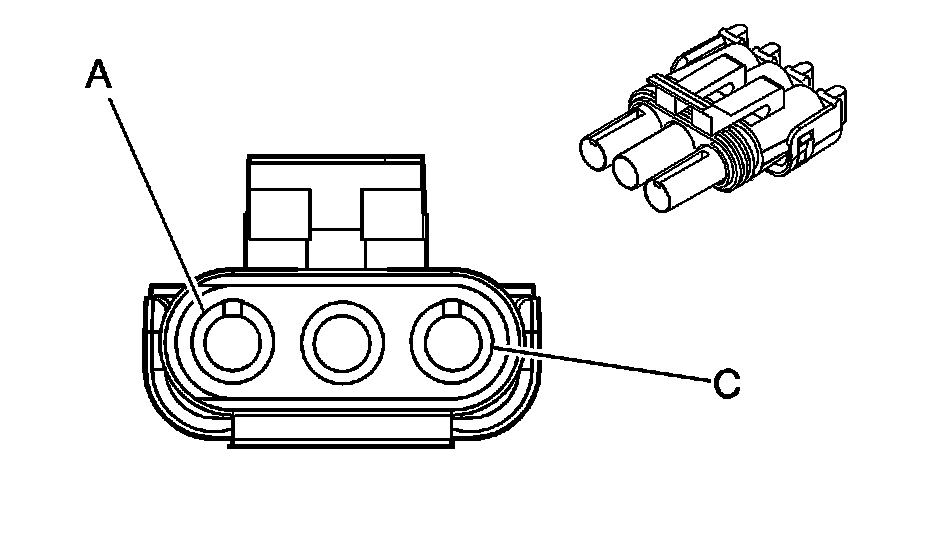

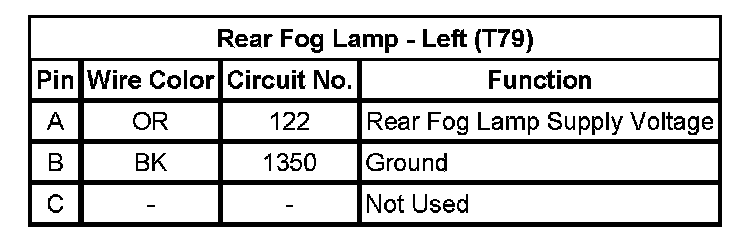

Rear Fog Lamp - Left (T79)

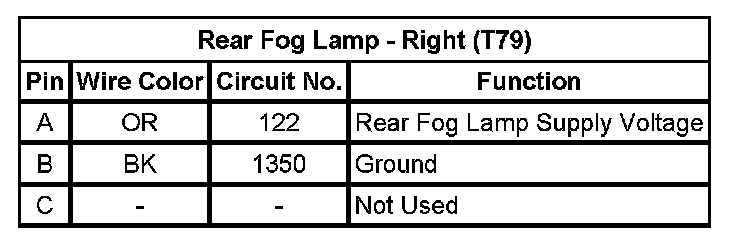

Rear Fog Lamp - Right (T79)
