Ignition Coil



Engine Controls Connector End Views

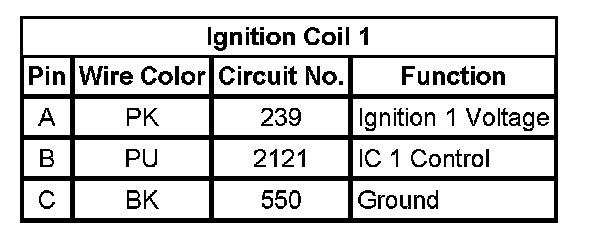

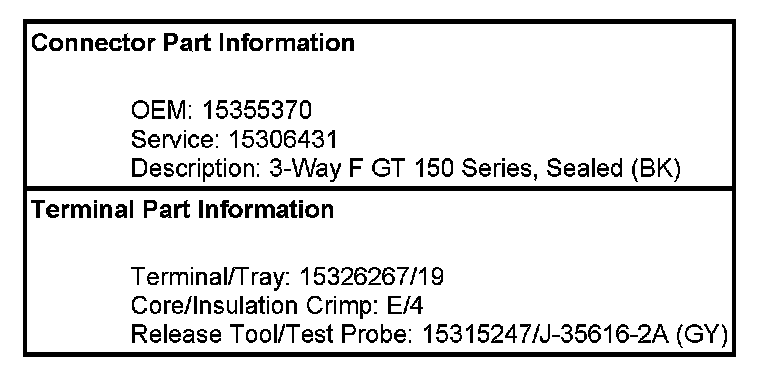

Ignition Coil 1

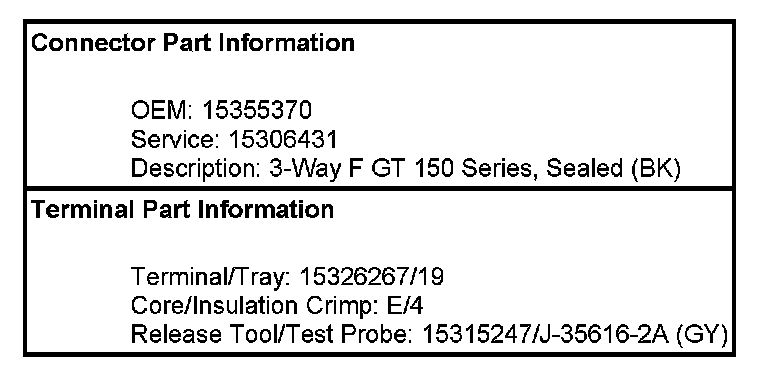

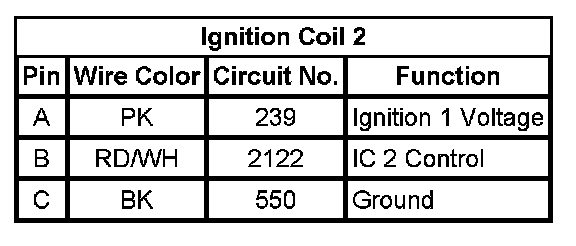

Ignition Coil 2

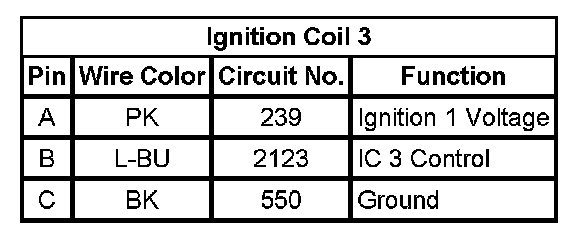

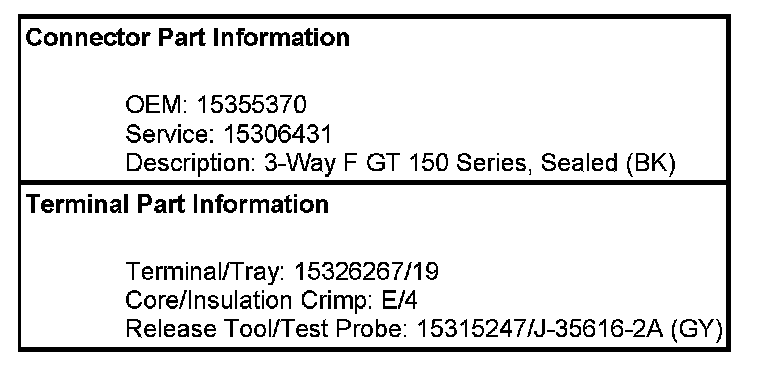

Ignition Coil 3

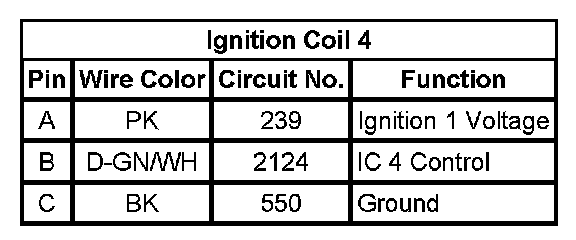

Ignition Coil 4

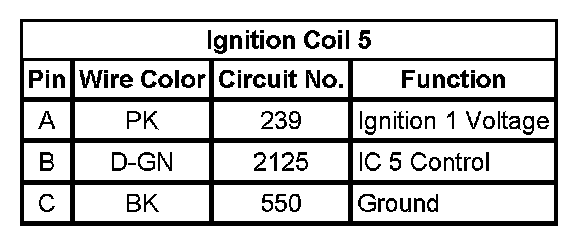

Ignition Coil 5
