System Diagram



Vehicle Access Connector End Views

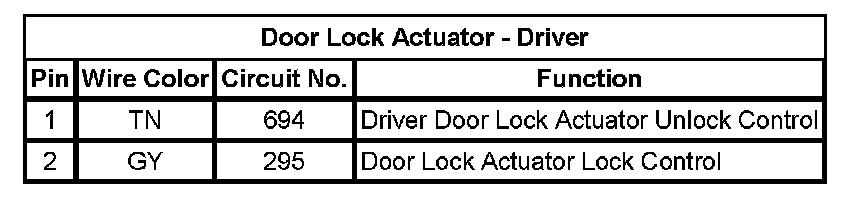

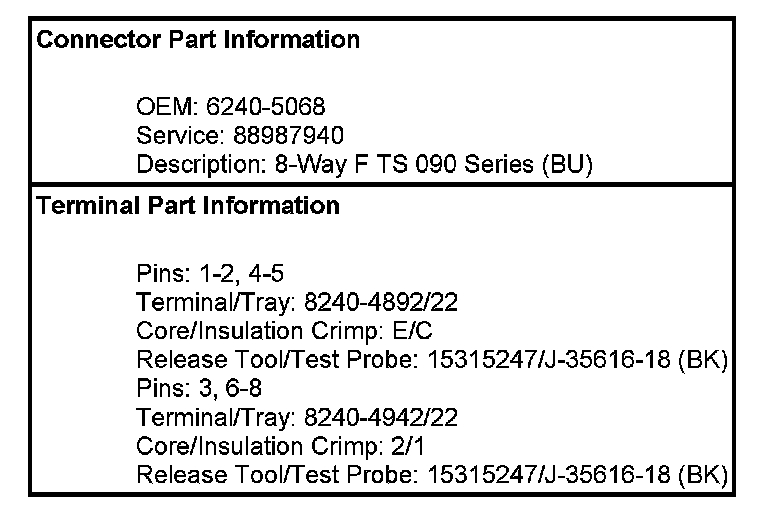

Door Lock Actuator - Driver

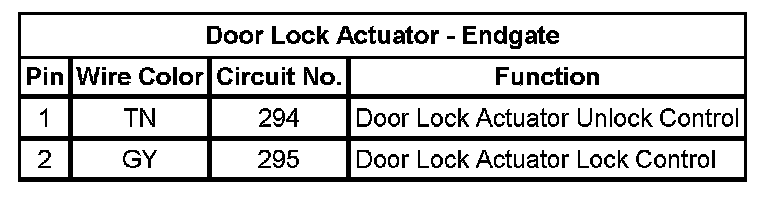

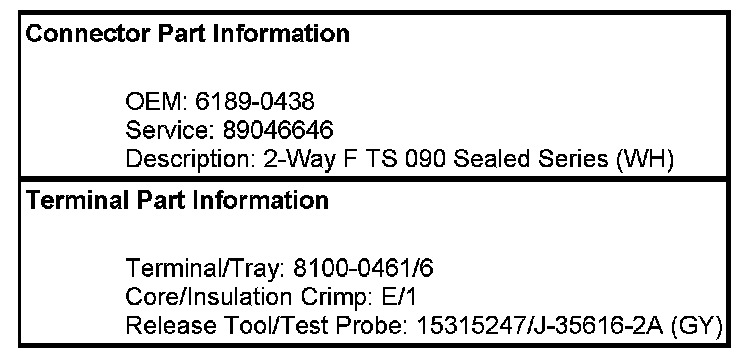

Door Lock Actuator - Endgate

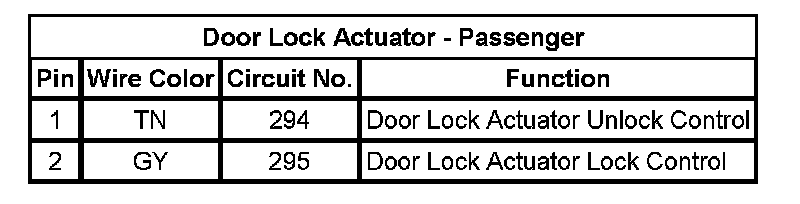

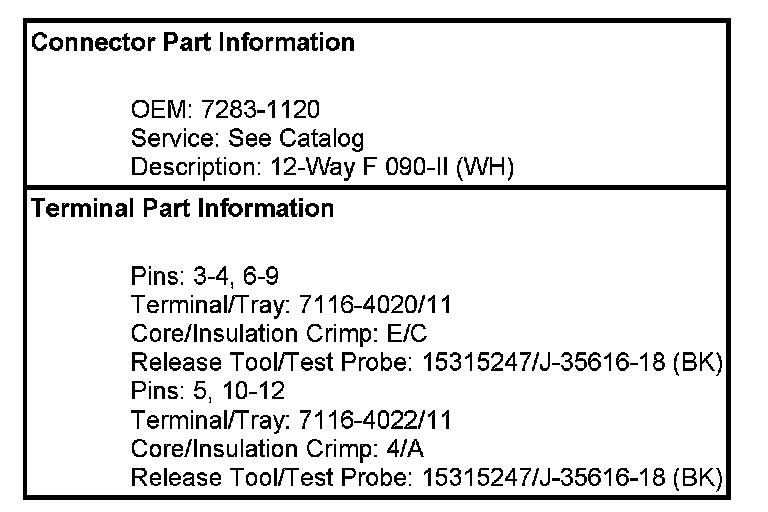

Door Lock Actuator - Passenger

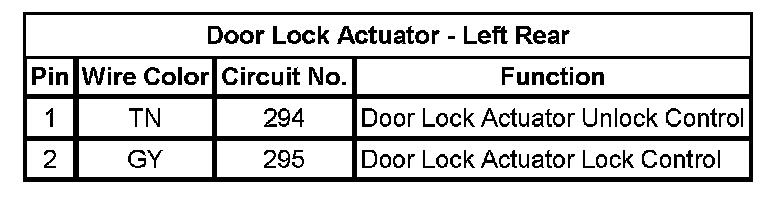

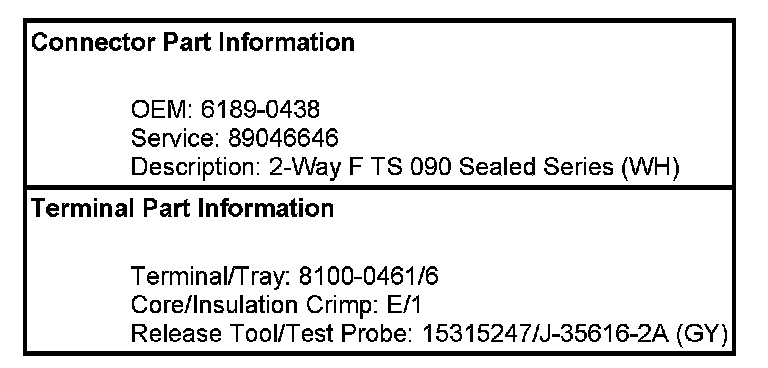

Door Lock Actuator - Left Rear

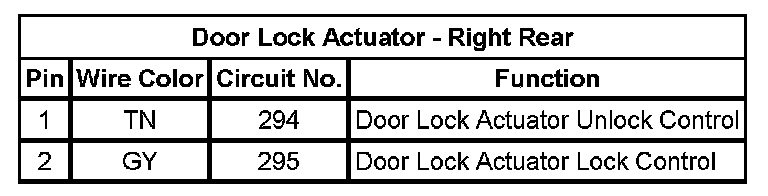

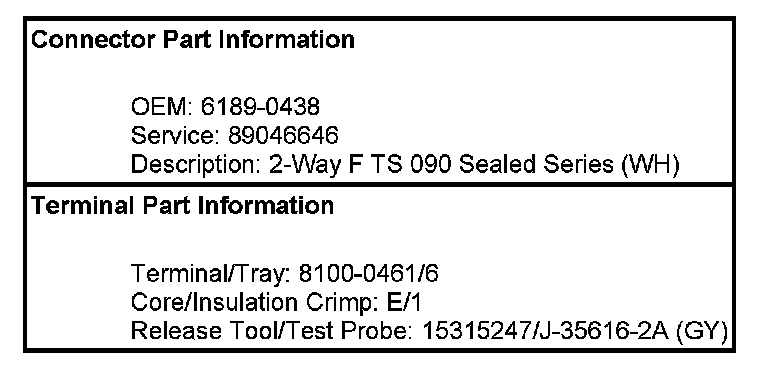

Door Lock Actuator - Right Rear

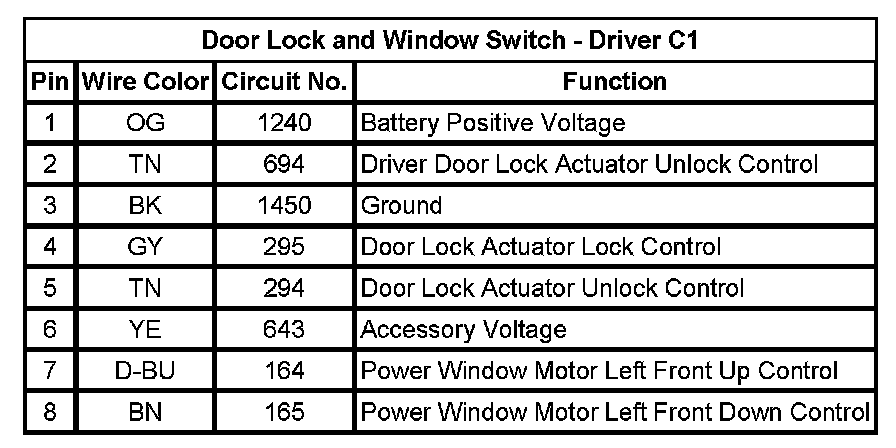

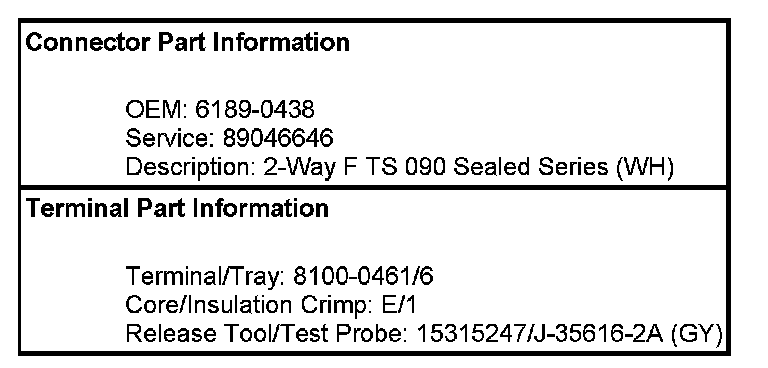

Door Lock and Window Switch - Driver C1

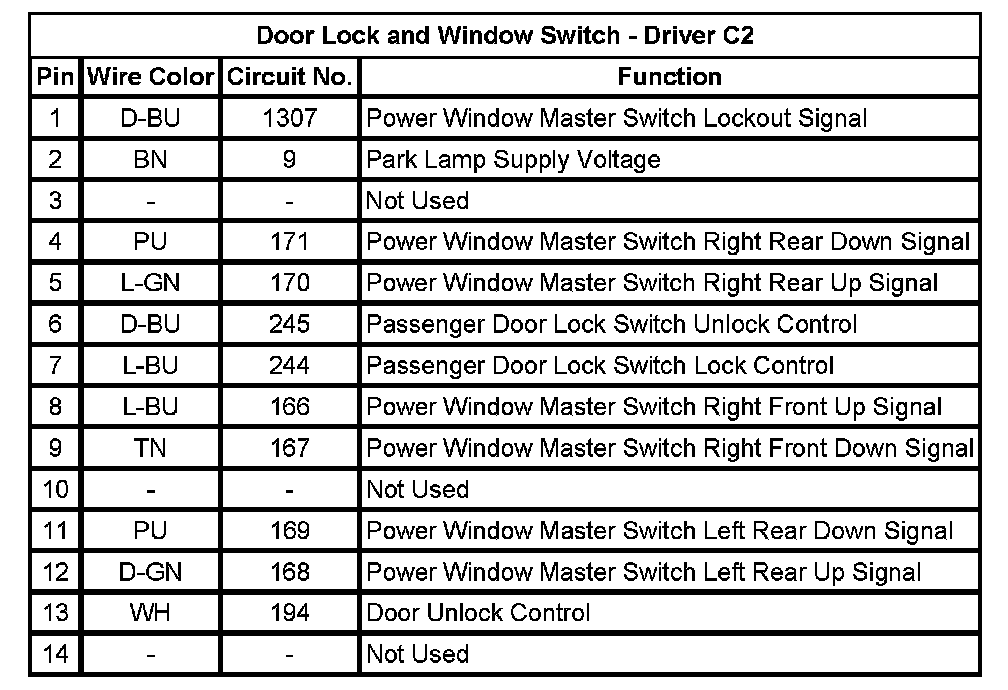

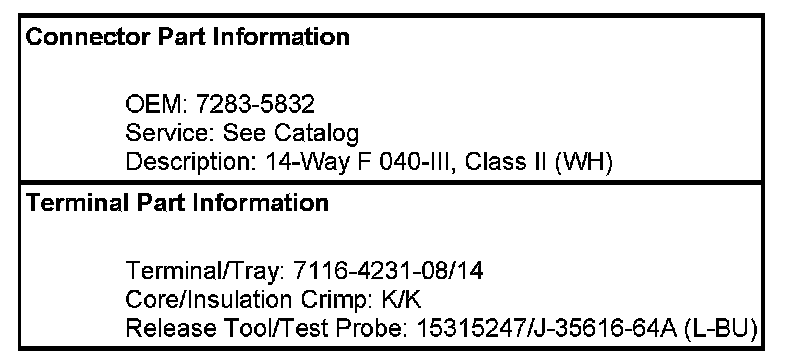

Door Lock and Window Switch - Driver C2

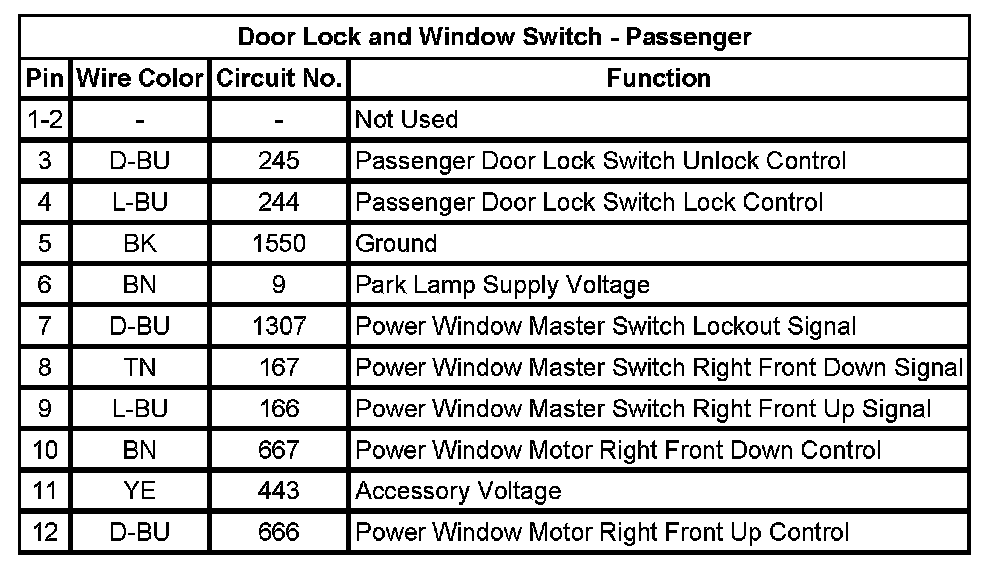

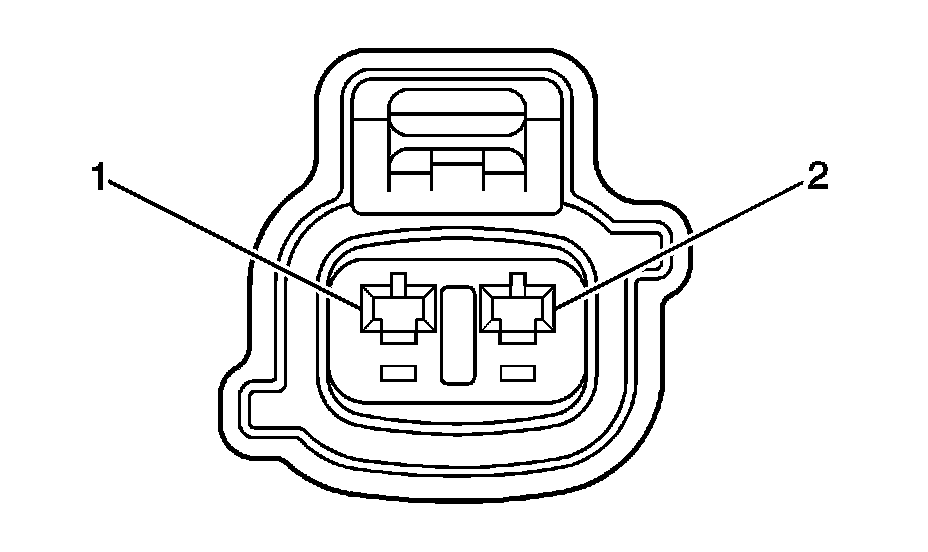

Door Lock and Window Switch - Passenger
