Marker Lamp

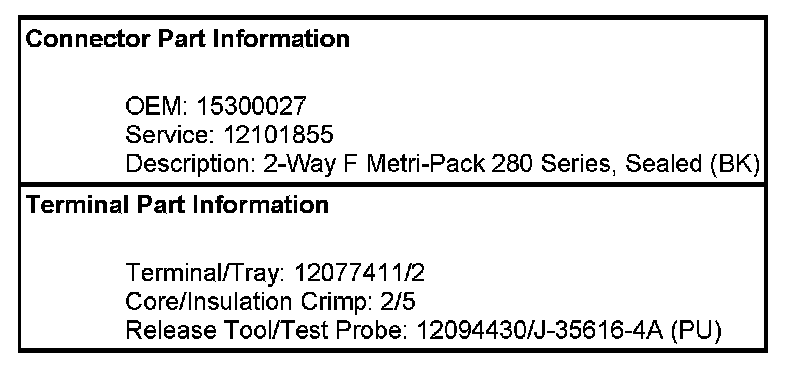

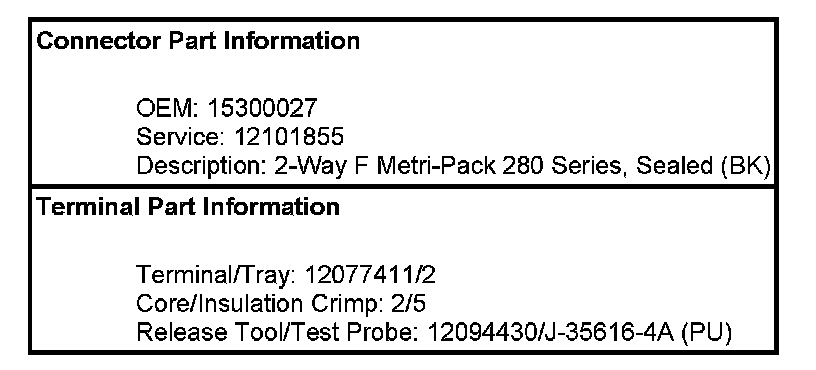

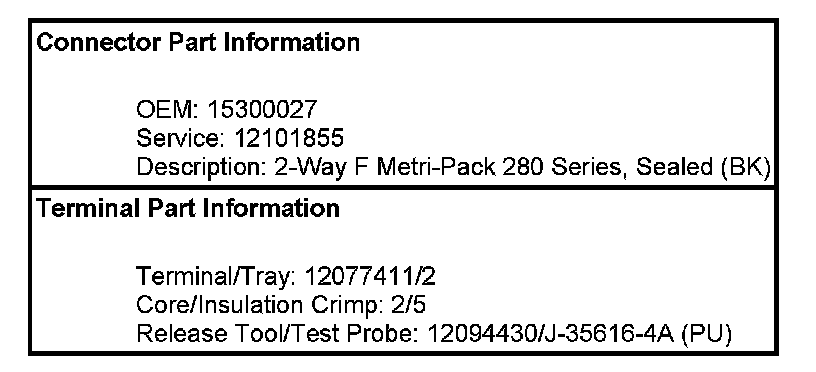

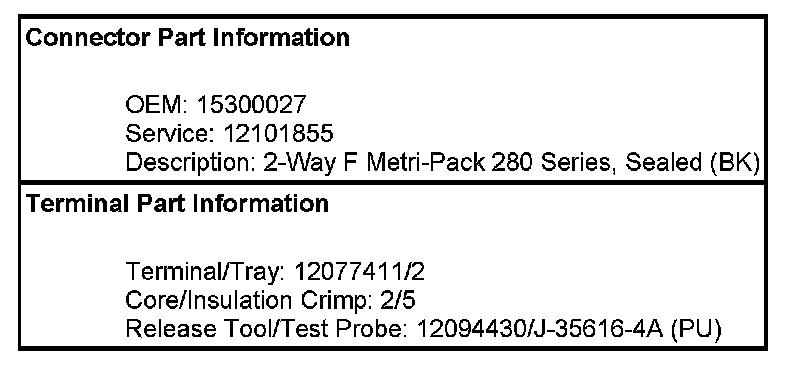

Lighting Systems Connector End Views

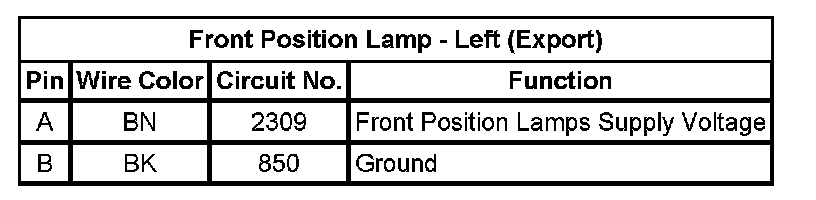

Front Position Lamp - Left (Export)

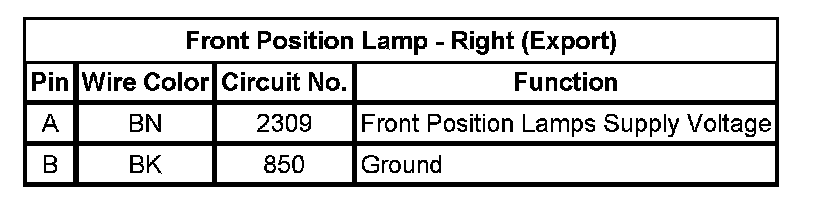

Front Position Lamp - Right (Export)

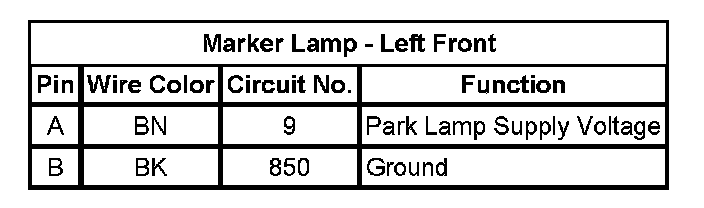

Marker Lamp - Left Front

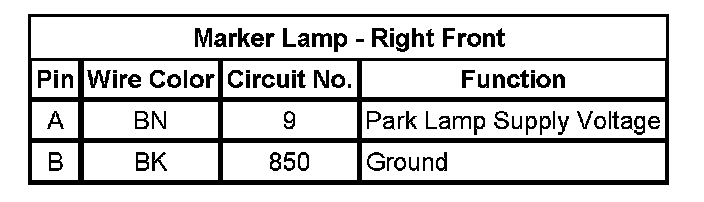

Marker Lamp - Right Front
