Steering Angle Sensor, Traction Control



Steering Wheel Position Sensor (JL4)

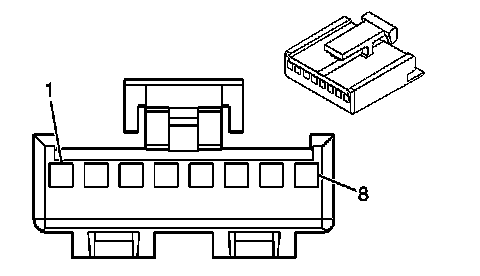

Steering Wheel Speed/Position Sensor:

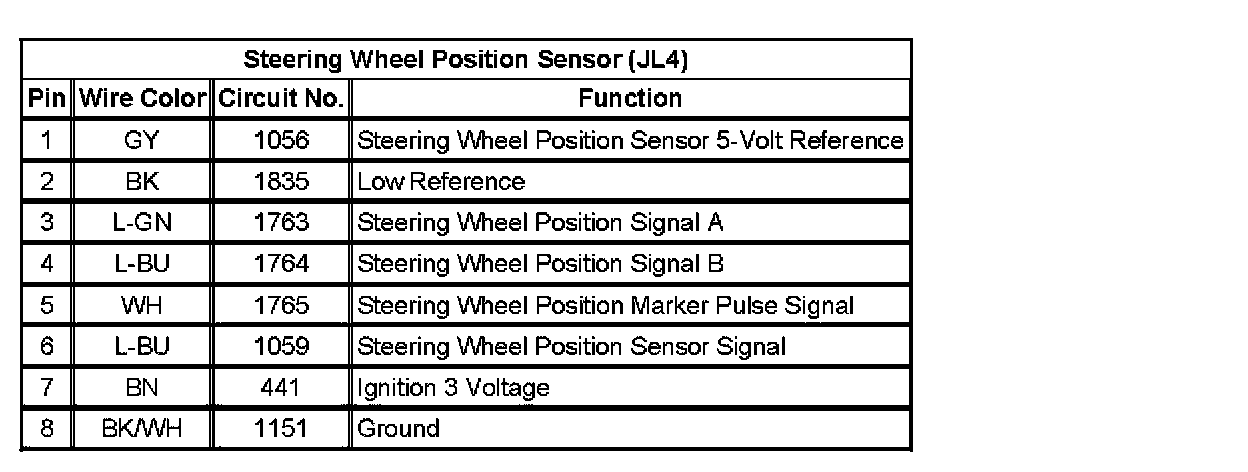

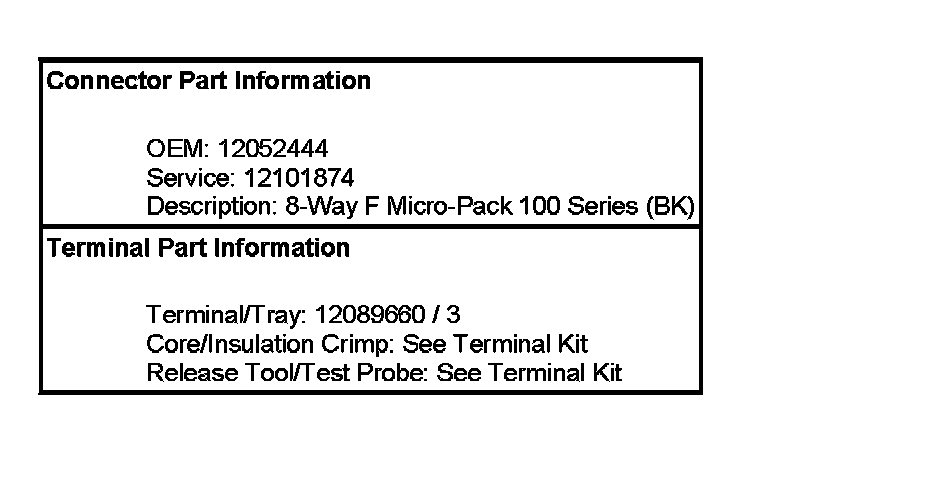

Steering Wheel Position Sensor (JL4):
